Observe the safety instructions supplied with the device!
They are also available at the following Internet address:
https://download.axing.com/BAs/Sicherheitshinweise_9sprachig.pdf
Use the device only as described in these operating instructions and in
particular in accordance with the state of the art.
If the device is used for other purposes, no warranty will be assumed!
Do not remove the dust caps from both the SFPB module and the fibre optic
cable until immediately before installing the fibre optic cable.
Do not install and uninstall the fibre optic cable frequently. This may
damage the cable and affect the performance of the transmission. Also,
frequent installation and removal of the optical transceivers will shorten
their life.
Field of application:
The bidirectional SFP+ transceivers are always used in pairs:
9 SFPB 10-1023 with the SFPB 10-1032
9 SFPB 10-2023 with the SFPB 10-2032
One module transmits at 1270 nm and receives at 1330 nm, the other module
transmits at 1330 nm and receives at 1270 nm.
You can also use an AXING SFP+ transceiver with a suitable third-party
module. In this case, the technical parameters of the modules (such as
wavelength, optical output power, sensitivity, etc.) must be matched. To
make sure that SFP modules from different manufacturers really work perfectly
together, it is recommended to carry out an interoperability test.
Host
SFPB 10-1023
SFPB 10-2023
Notes:
9 The transmission power and sensitivity of the SFP+ transceivers are
matched to long fibre optic lengths.
9 Nevertheless, SFPB 10-1023 and SFPB 10-1032 can also be connected to
each other via short patch cables without any problems (e.g. in data centre
applications).
9 SFPB 10-2023 and SFPB 10-2032 transmit with higher power,
however, there should be 3 dB attenuation (e. g. 10 km fibre optic
distance) in between.

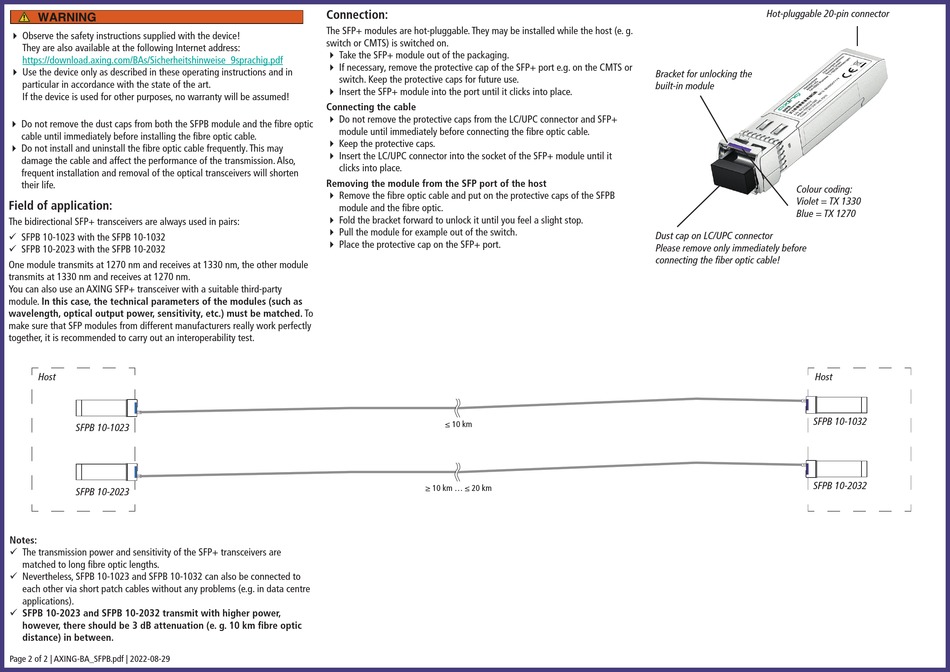

Page 2 of 2 | AXING-BA_SFPB.pdf | 2022-08-29
Connection:
The SFP+ modules are hot-pluggable. They may be installed while the host (e. g.
switch or CMTS) is switched on.
Take the SFP+ module out of the packaging.
If necessary, remove the protective cap of the SFP+ port e.g. on the CMTS or
switch. Keep the protective caps for future use.
Insert the SFP+ module into the port until it clicks into place.
Connecting the cable
Do not remove the protective caps from the LC/UPC connector and SFP+
module until immediately before connecting the fibre optic cable.
Keep the protective caps.
Insert the LC/UPC connector into the socket of the SFP+ module until it
clicks into place.
Removing the module from the SFP port of the host
Remove the fibre optic cable and put on the protective caps of the SFPB
module and the fibre optic.
Fold the bracket forward to unlock it until you feel a slight stop.
Pull the module for example out of the switch.
Place the protective cap on the SFP+ port.
≤ 10 km
≥ 10 km ... ≤ 20 km
Hot-pluggable 20-pin connector
Bracket for unlocking the
built-in module
Colour coding:
Violet = TX 1330
Blue = TX 1270
Dust cap on LC/UPC connector
Please remove only immediately before
connecting the fiber optic cable!
Host
SFPB 10-1032
SFPB 10-2032
