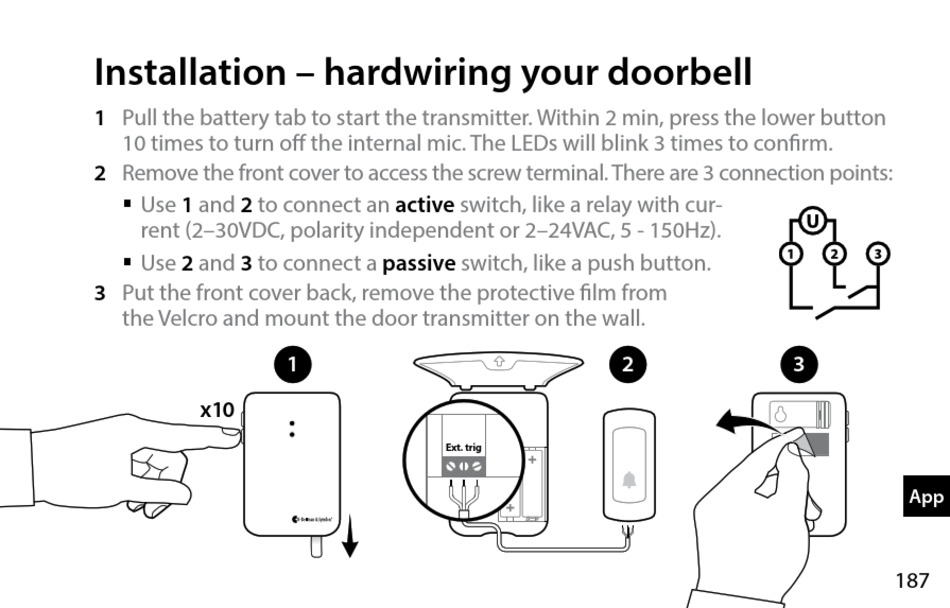

Installation – hardwiring your doorbell
1
Pull the battery tab to start the transmitter. Within 2 min, press the lower button
10 times to turn off the internal mic. The LEDs will blink 3 times to confirm.
2 Remove the front cover to access the screw terminal. There are 3 connection points:
1 2
Use and to connect an

rent (2–30VDC, polarity independent or 2–24VAC, 5 - 150Hz).
2 3
Use and to connect a

3
Put the front cover back, remove the protective film from
the Velcro and mount the door transmitter on the wall.
x10
active
switch, like a relay with cur-
passive
switch, like a push button.
1
Ext. trig
Ext. trig
2 3
