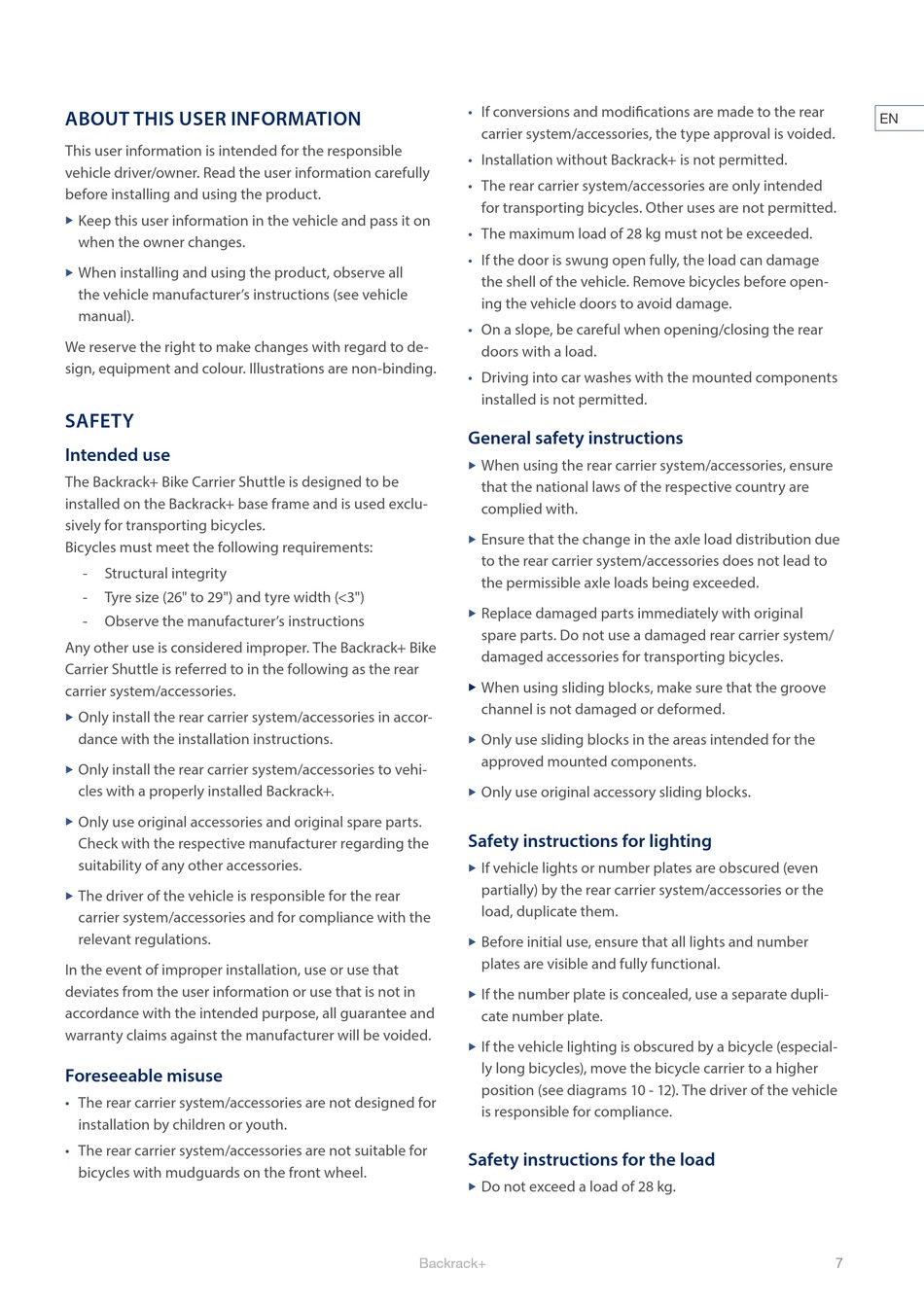

ABOUT THIS USER INFORMATION

This user information is intended for the responsible
vehicle driver/owner. Read the user information carefully
before installing and using the product.
Keep this user information in the vehicle and pass it on
X
when the owner changes.
When installing and using the product, observe all
X
the vehicle manufacturer's instructions (see vehicle
manual).
We reserve the right to make changes with regard to de-
sign, equipment and colour. Illustrations are non-binding.

SAFETY

Intended use

The Backrack+ Bike Carrier Shuttle is designed to be
installed on the Backrack+ base frame and is used exclu-
sively for transporting bicycles.
Bicycles must meet the following requirements:
- Structural integrity
- Tyre size (26" to 29") and tyre width (<3")
- Observe the manufacturer's instructions
Any other use is considered improper. The Backrack+ Bike
Carrier Shuttle is referred to in the following as the rear
carrier system/accessories.
Only install the rear carrier system/accessories in accor-
X
dance with the installation instructions.
Only install the rear carrier system/accessories to vehi-
X
cles with a properly installed Backrack+.
Only use original accessories and original spare parts.
X
Check with the respective manufacturer regarding the
suitability of any other accessories.
The driver of the vehicle is responsible for the rear
X
carrier system/accessories and for compliance with the
relevant regulations.
In the event of improper installation, use or use that
deviates from the user information or use that is not in
accordance with the intended purpose, all guarantee and
warranty claims against the manufacturer will be voided.

Foreseeable misuse

• The rear carrier system/accessories are not designed for
installation by children or youth.
• The rear carrier system/accessories are not suitable for
bicycles with mudguards on the front wheel.
• If conversions and modifications are made to the rear
carrier system/accessories, the type approval is voided.
• Installation without Backrack+ is not permitted.
• The rear carrier system/accessories are only intended
for transporting bicycles. Other uses are not permitted.
• The maximum load of 28 kg must not be exceeded.
• If the door is swung open fully, the load can damage
the shell of the vehicle. Remove bicycles before open-
ing the vehicle doors to avoid damage.
• On a slope, be careful when opening/closing the rear
doors with a load.
• Driving into car washes with the mounted components
installed is not permitted.

General safety instructions

When using the rear carrier system/accessories, ensure
X
that the national laws of the respective country are
complied with.
Ensure that the change in the axle load distribution due
X
to the rear carrier system/accessories does not lead to
the permissible axle loads being exceeded.
Replace damaged parts immediately with original
X
spare parts. Do not use a damaged rear carrier system/
damaged accessories for transporting bicycles.
When using sliding blocks, make sure that the groove
X
channel is not damaged or deformed.
Only use sliding blocks in the areas intended for the
X
approved mounted components.
Only use original accessory sliding blocks.
X

Safety instructions for lighting

If vehicle lights or number plates are obscured (even
X
partially) by the rear carrier system/accessories or the
load, duplicate them.
Before initial use, ensure that all lights and number
X
plates are visible and fully functional.
If the number plate is concealed, use a separate dupli-
X
cate number plate.
If the vehicle lighting is obscured by a bicycle (especial-
X
ly long bicycles), move the bicycle carrier to a higher
position (see diagrams 10 - 12). The driver of the vehicle
is responsible for compliance.

Safety instructions for the load

Do not exceed a load of 28 kg.
X
