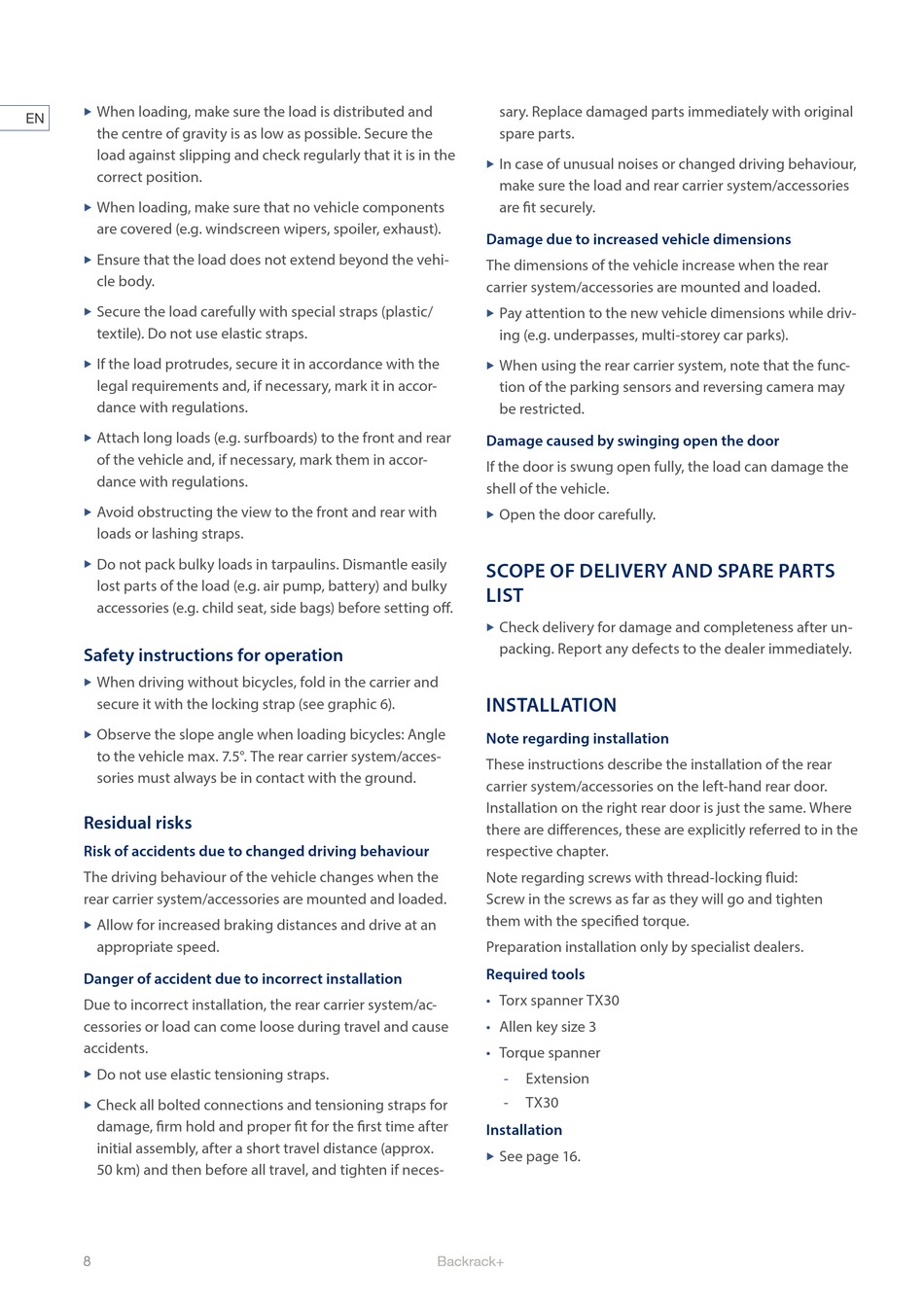

When loading, make sure the load is distributed and
X
EN
the centre of gravity is as low as possible. Secure the
load against slipping and check regularly that it is in the
correct position.
When loading, make sure that no vehicle components
X
are covered (e.g. windscreen wipers, spoiler, exhaust).
Ensure that the load does not extend beyond the vehi-
X
cle body.
Secure the load carefully with special straps (plastic/
X
textile). Do not use elastic straps.
If the load protrudes, secure it in accordance with the
X
legal requirements and, if necessary, mark it in accor-
dance with regulations.
Attach long loads (e.g. surfboards) to the front and rear
X
of the vehicle and, if necessary, mark them in accor-
dance with regulations.
Avoid obstructing the view to the front and rear with
X
loads or lashing straps.
Do not pack bulky loads in tarpaulins. Dismantle easily
X
lost parts of the load (e.g. air pump, battery) and bulky
accessories (e.g. child seat, side bags) before setting off.

Safety instructions for operation

When driving without bicycles, fold in the carrier and
X
secure it with the locking strap (see graphic 6).
Observe the slope angle when loading bicycles: Angle
X
to the vehicle max. 7.5°. The rear carrier system/acces-
sories must always be in contact with the ground.

Residual risks

Risk of accidents due to changed driving behaviour
The driving behaviour of the vehicle changes when the
rear carrier system/accessories are mounted and loaded.
Allow for increased braking distances and drive at an
X
appropriate speed.
Danger of accident due to incorrect installation
Due to incorrect installation, the rear carrier system/ac-
cessories or load can come loose during travel and cause
accidents.
Do not use elastic tensioning straps.
X
Check all bolted connections and tensioning straps for
X
damage, firm hold and proper fit for the first time after
initial assembly, after a short travel distance (approx.
50 km) and then before all travel, and tighten if neces-
8 8
sary. Replace damaged parts immediately with original
spare parts.
In case of unusual noises or changed driving behaviour,
X
make sure the load and rear carrier system/accessories
are fit securely.
Damage due to increased vehicle dimensions
The dimensions of the vehicle increase when the rear
carrier system/accessories are mounted and loaded.
Pay attention to the new vehicle dimensions while driv-
X
ing (e.g. underpasses, multi-storey car parks).
When using the rear carrier system, note that the func-
X
tion of the parking sensors and reversing camera may
be restricted.
Damage caused by swinging open the door
If the door is swung open fully, the load can damage the
shell of the vehicle.
Open the door carefully.
X
SCOPE OF DELIVERY AND SPARE PARTS
LIST
Check delivery for damage and completeness after un-
X
packing. Report any defects to the dealer immediately.

INSTALLATION

Note regarding installation
These instructions describe the installation of the rear
carrier system/accessories on the left-hand rear door.
Installation on the right rear door is just the same. Where
there are differences, these are explicitly referred to in the
respective chapter.
Note regarding screws with thread-locking fluid:
Screw in the screws as far as they will go and tighten
them with the specified torque.
Preparation installation only by specialist dealers.
Required tools
• Torx spanner TX30
• Allen key size 3
• Torque spanner
- Extension
- TX30
Installation
See page 16.
X
