Prepare assembly
Before you start the assembly:
Before starting the installation, please read the operating instructions carefully and completely.
Make sure that the shutter is not damaged and that it opens and closes smoothly.
If necessary, replace damaged parts.
Lower the roller shutter completely and determine whether the motor is to be installed on the left or right side in the roller shutter box
should be installed. Always choose the shortest route to the nearest junction box,
as cables must not be laid in the roller shutter box.
The limit switch is controlled via the fully pushed-on plastic ring.
Always ensure that the motor can be pushed into the shaft as far as it will go.
Structure of the shutter

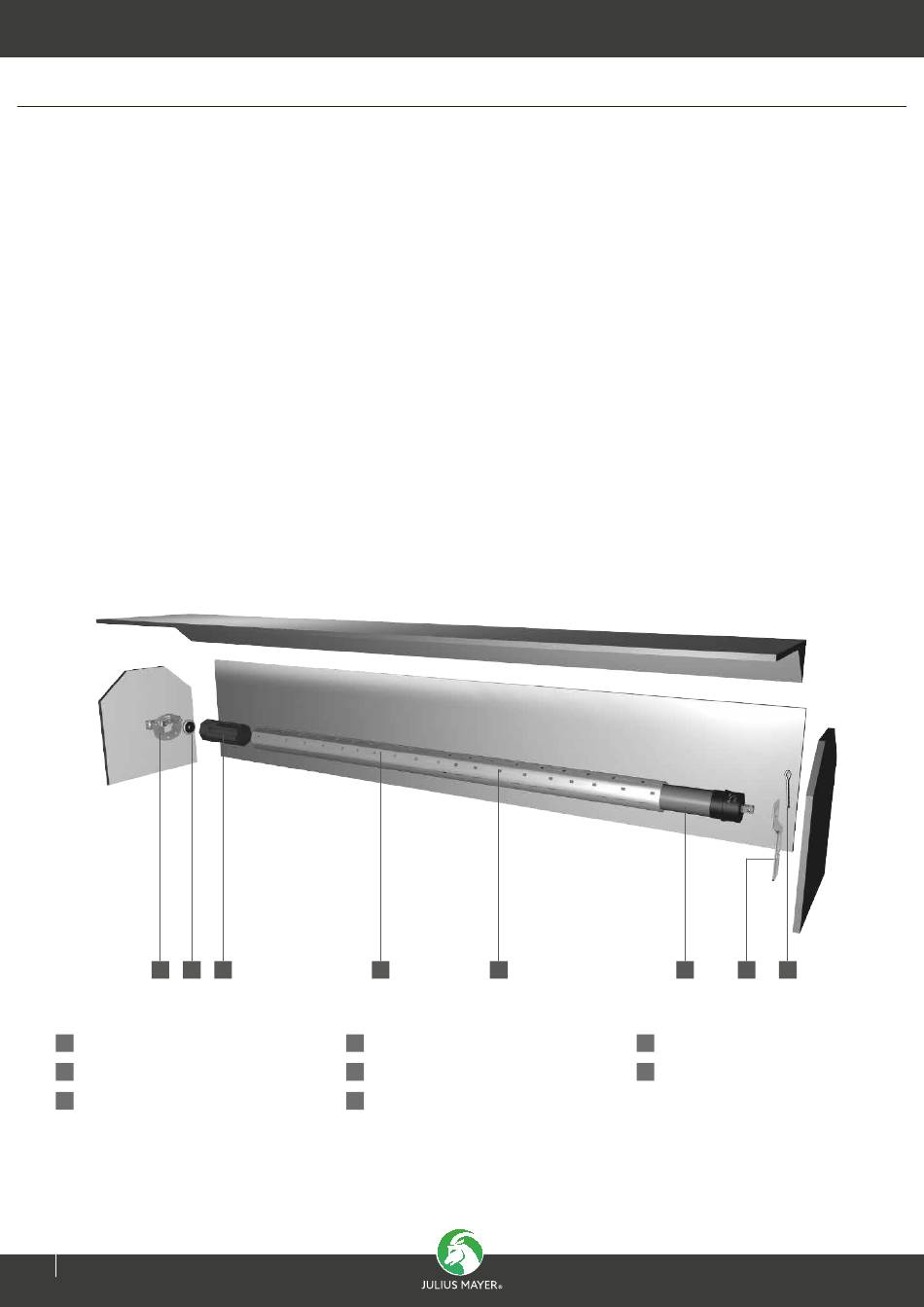

The drawing below is exemplary and shows the basic structure of a roller shutter system.
Deviations from the on-site installation are possible.
1 2
1 Bearing shell
2 Ball bearing
3 Roller capsule
26
3 4
4 Steel shaft
5 Suspension openings
6 Roller shutter motor
5
7 Engine mount
8 Safety split pin
ASSEMBLY
6 7 8
