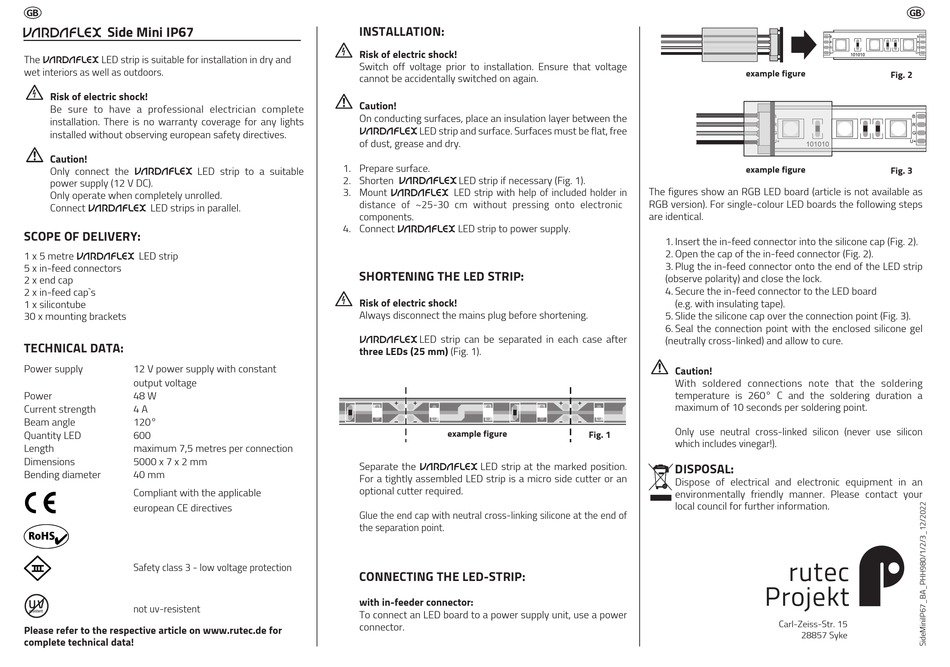

Side Mini IP67
The
LED strip is suitable for installation in dry and
wet interiors as well as outdoors.
Risk of electric shock!
Be sure to have a professional electrician complete
in stallation. There is no warranty coverage for any lights
installed without observing european safety directives.
Caution!
Only connect the
LED strip to a suitable
power supply (12 V DC).
Only operate when completely unrolled.
Connect
LED strips in parallel.
SCOPE OF DELIVERY:
1 x 5 metre
LED strip
5 x in-feed connectors
2 x end cap
2 x in-feed cap`s
1 x silicontube
30 x mounting brackets
TECHNICAL DATA:
Power supply
12 V power supply with constant
output voltage
Power
48 W
Current strength
4 A
Beam angle
120°
Quantity LED
600
Length
maximum 7,5 metres per connection
Dimensions
5000 x 7 x 2 mm
Bending diameter
40 mm
Compliant with the applicable
european CE directives
Safety class 3 - low voltage protection
not uv-resistent
resistent
Please refer to the respective article on www.rutec.de for
complete technical data!
INSTALLATION:
Risk of electric shock!
Switch off voltage prior to installation. Ensure that voltage
cannot be accidentally switched on again.
Caution!
On conducting surfaces, place an insulation layer between the
LED strip and surface. Surfaces must be flat, free
of dust, grease and dry.
1. Prepare surface.
2. Shorten
LED strip if necessary (Fig. 1).
3. Mount
LED strip with help of included holder in
distance of ~25-30 cm without pressing onto electronic
components.
4. Connect
LED strip to power supply.
SHORTENING THE LED STRIP:
Risk of electric shock!
Always disconnect the mains plug before shortening.
LED strip can be separated in each case after
three LEDs (25 mm) (Fig. 1).
example figure
Separate the
LED strip at the marked position.
For a tightly assembled LED strip is a micro side cutter or an
optional cutter required.
Glue the end cap with neutral cross-linking silicone at the end of
the separation point.
CONNECTING THE LED-STRIP:
with in-feeder connector:
To connect an LED board to a power supply unit, use a power
connector.
example figure
example figure
The figures show an RGB LED board (article is not available as
RGB version). For single-colour LED boards the following steps
are identical.
1. Insert the in-feed connector into the silicone cap (Fig. 2).
2. Open the cap of the in-feed connector (Fig. 2).
3. Plug the in-feed connector onto the end of the LED strip
(observe polarity) and close the lock.
4. Secure the in-feed connector to the LED board
(e.g. with insulating tape).
5. Slide the silicone cap over the connection point (Fig. 3).
6. Seal the connection point with the enclosed silicone gel
(neutrally cross-linked) and allow to cure.
Caution!
With soldered connections note that the soldering
tem perature is 260° C and the soldering duration a
maximum of 10 seconds per soldering point.
Only use neutral cross-linked silicon (never use silicon
Fig. 1
which includes vinegar!).
DISPOSAL:
Dispose of electrical and electronic equipment in an
environmentally friendly manner. Please contact your
local council for further information.
Projekt
G
Fig. 2
Fig. 3
