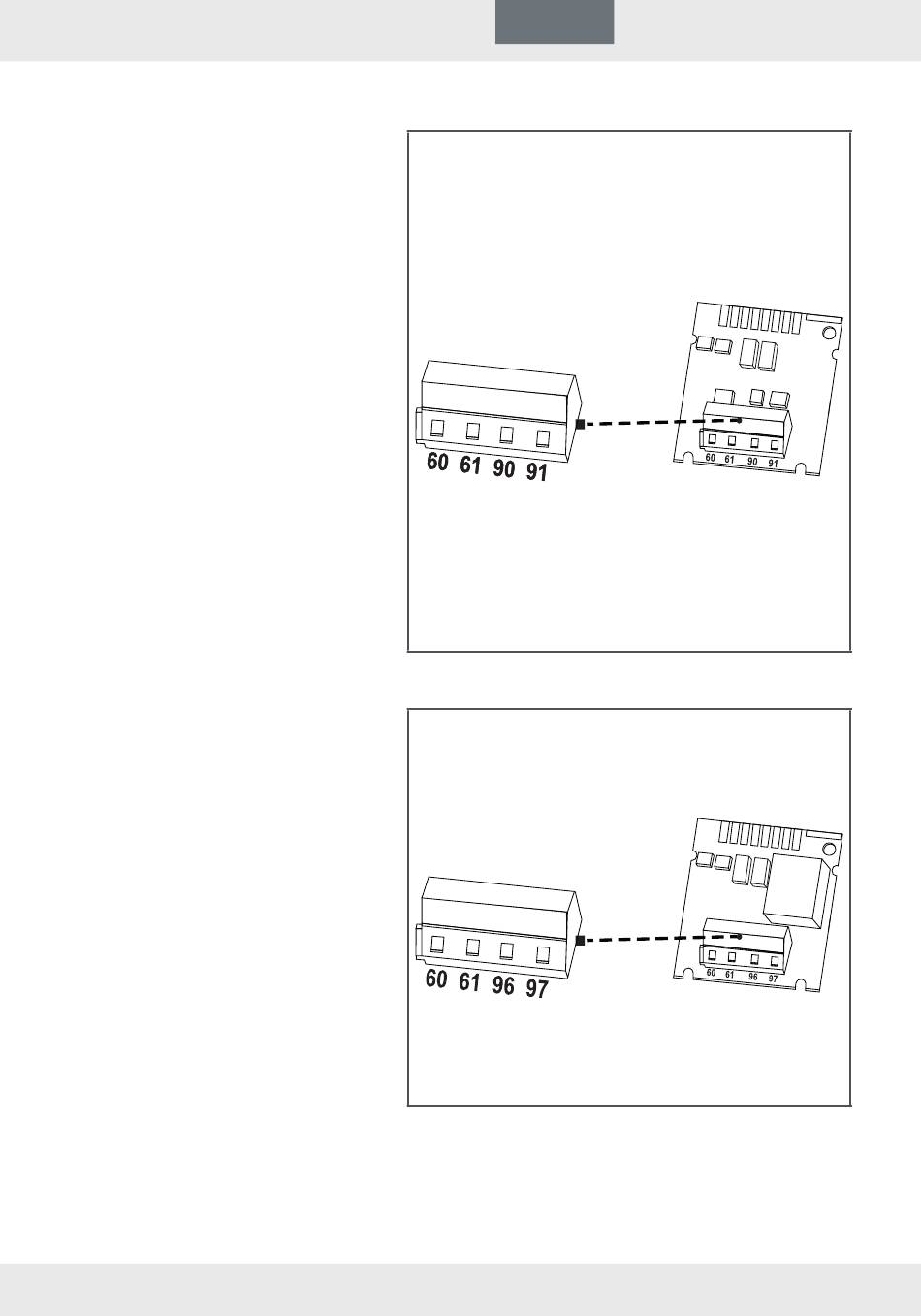

7.2.5 Communication module Modbus RTU

ƒ
Polarity independent: Con-
nections 60 and 61
ƒ
External power supply:
12-24 V AC/ DC
ƒ
Energy consumption: max.
150 mW
ƒ
Connection 90 (not inver-
ted, + )
ƒ
Connection 91 (inverted,-)
ƒ
Communications protocol:
Modbus RTU
ƒ
Channel EI A-485 (electri-
cally isolated)
ƒ
Flexible data format:
Standard 9600 bits/ s, 8N1,
Modbus Slave I D-1

7.2.6 Communication module LonWorks

ƒ
Polarity independent: Con-
nections 60 and 61
ƒ
External power supply:
12-24 V AC/ DC
ƒ
Energy consumption: max.
150 mW
ƒ
Polarity independent: Con-
nections 96 (A) and 97 (B)
ƒ
Channel TP/ FT-10
ƒ
Baud rate: 78 kbit/ s
ƒ
Data format: Differential
Manchester encoding
