Motor Control System MT-4
6 Commissioning
Pos.
Description
1
PWR/GN
2
SKS/RT
3
Radio/GE

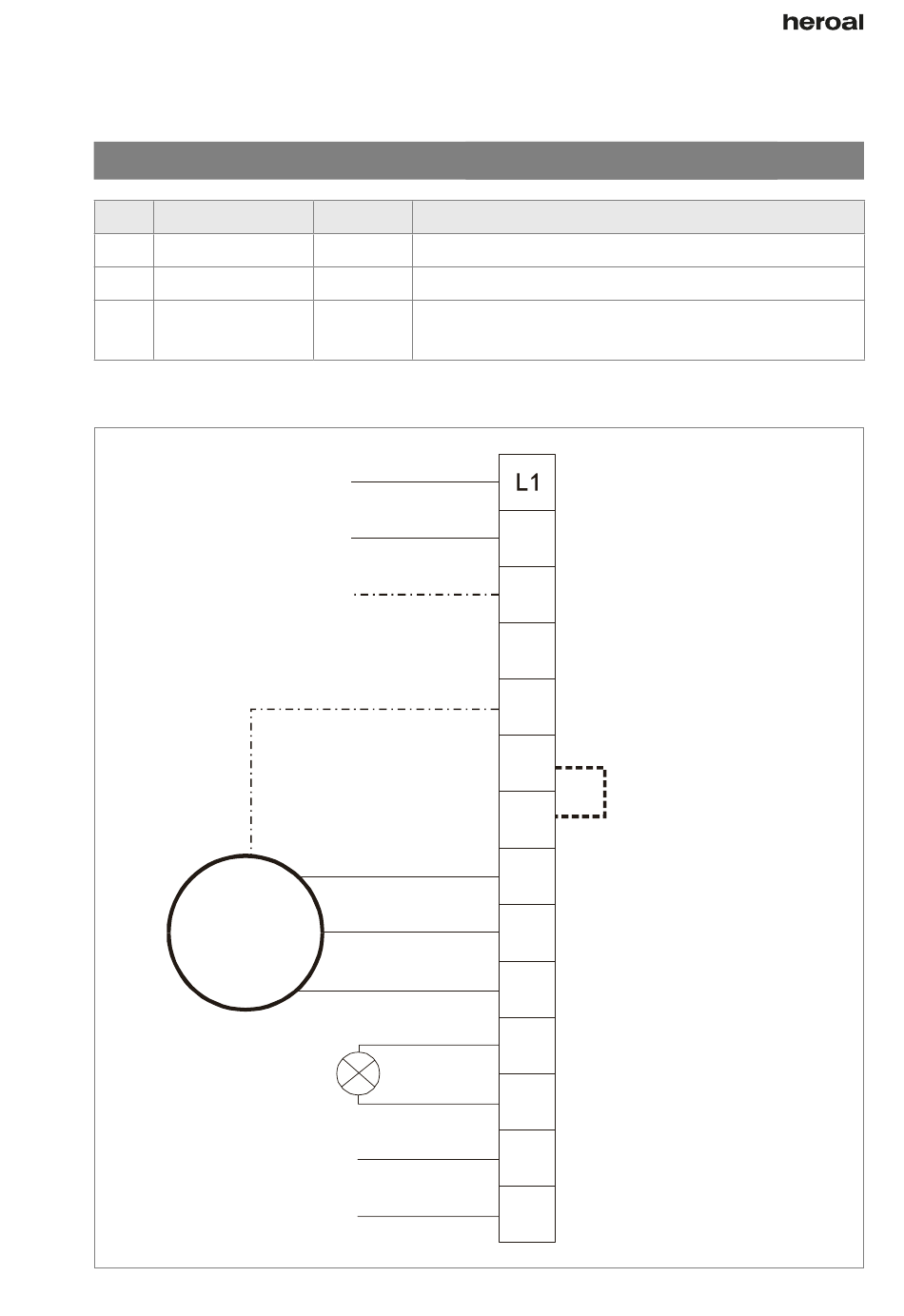

6.3 Wiring diagram for 230 V motor
Mains 230 V, 50 Hz
Motor, 230 V
Relay 4, 230 V
Relay, potential-free
Colour
Function
green
POWER/Display operating voltage OK.
red
SLAT/Display safety edge activated or defective.
yellow
RADIO/Display control for radio receipt and teaching/
deleting the handheld transmitters.
L1
N
PE
Open
Closed
N
L1
N
Original operating instructions
L1
N
PE
PE
PE
1
Remove bridge
during use
2
3
4
5
6
Autom. control of
}
garage lighting
Time interval = 2 min.
7
8
9
02.2022 | 31
