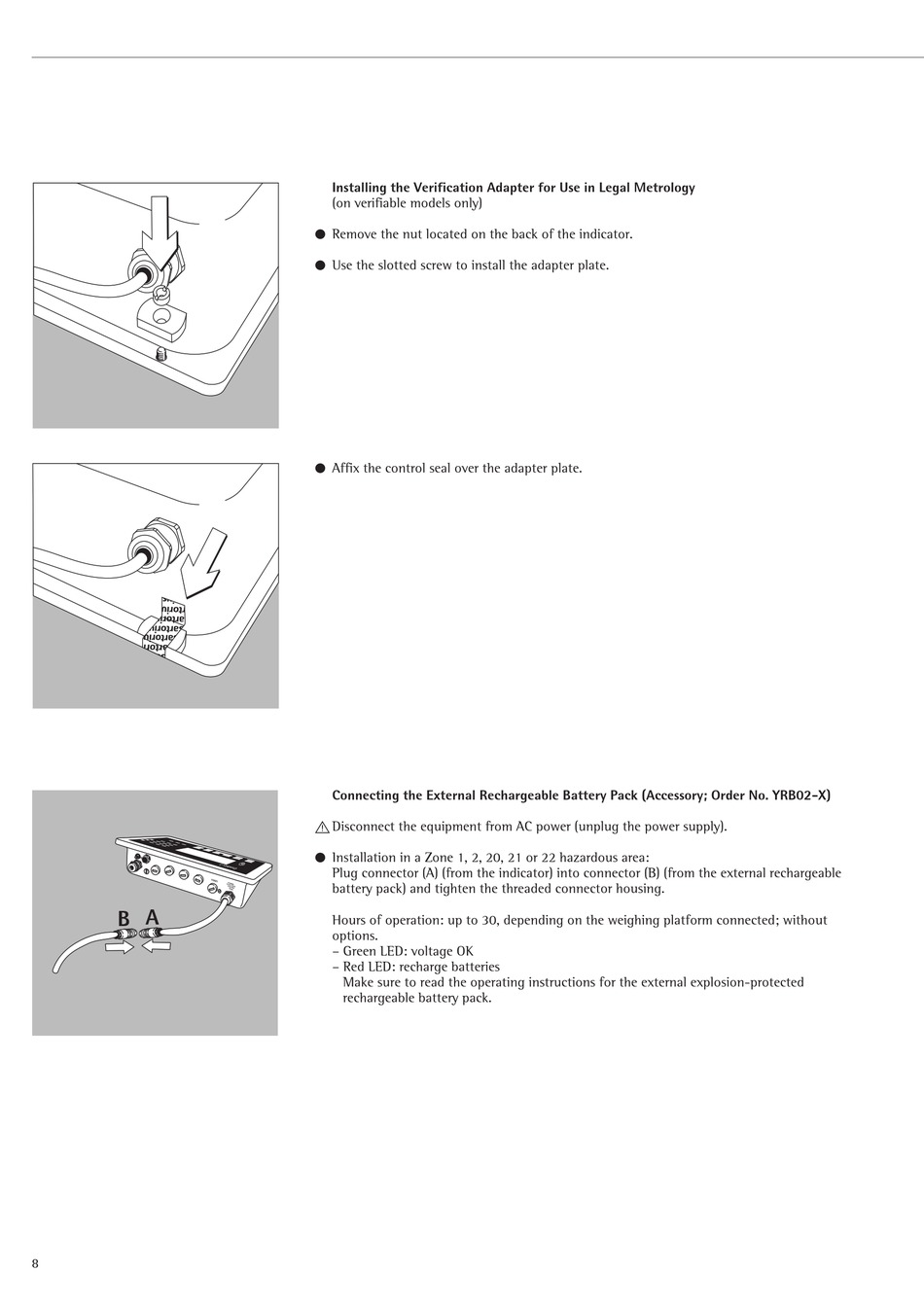

Installing the Verification Adapter for Use in Legal Metrology

(on verifiable models only)
§ Remove the nut located on the back of the indicator.
§ Use the slotted screw to install the adapter plate.
§ Affix the control seal over the adapter plate.
Connecting the External Rechargeable Battery Pack (Accessory; Order No. YRB02-X)
!
Disconnect the equipment from AC power (unplug the power supply).
§ Installation in a Zone 1, 2, 20, 21 or 22 hazardous area:
Plug connector (A) (from the indicator) into connector (B) (from the external rechargeable
battery pack) and tighten the threaded connector housing.
Hours of operation: up to 30, depending on the weighing platform connected; without
options.
– Green LED: voltage OK
– Red LED: recharge batteries
Make sure to read the operating instructions for the external explosion-protected
rechargeable battery pack.
