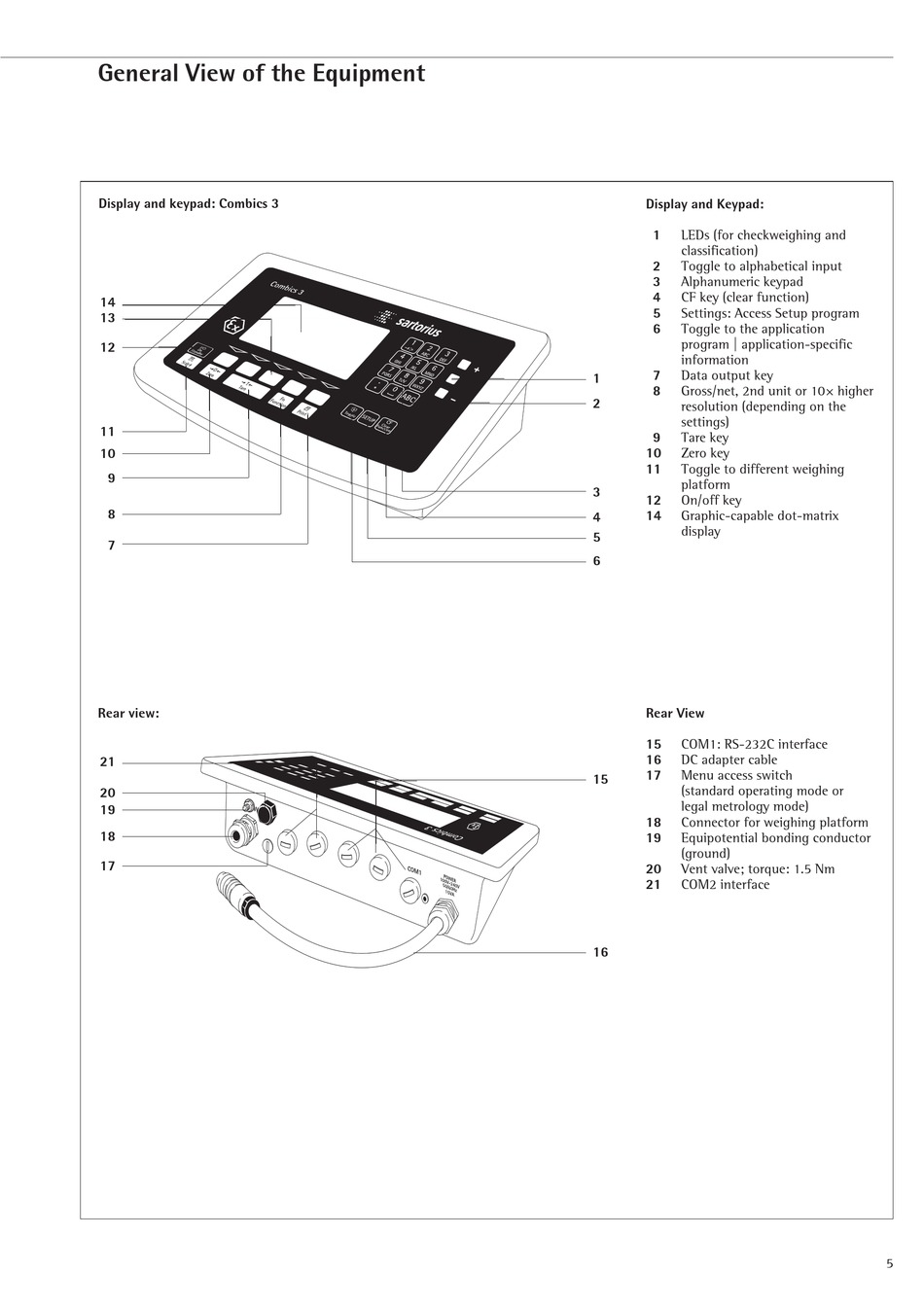

General View of the Equipment

Display and keypad: Combics 3
14
13
12
11
10
9
8
7
Rear view:
21
20
19
18
17
Display and Keypad:
1 LEDs (for checkweighing and
classification)
2 Toggle to alphabetical input
3 Alphanumeric keypad
4 CF key (clear function)
5 Settings: Access Setup program
6 Toggle to the application
program | application-specific
information
7
Data output key
1
8
Gross/net, 2nd unit or 10+ higher
2
resolution (depending on the
settings)
9 Tare key
10 Zero key
11 Toggle to different weighing
platform
3
12 On/off key
14 Graphic-capable dot-matrix
4
display
5
6
Rear View
15 COM1: RS-232C interface
16 DC adapter cable
17 Menu access switch
15
(standard operating mode or
legal metrology mode)
18 Connector for weighing platform
19 Equipotential bonding conductor
(ground)
20 Vent valve; torque: 1.5 Nm
21 COM2 interface
