Lighting Technologies TITAN LED Montageanleitung Seite 5

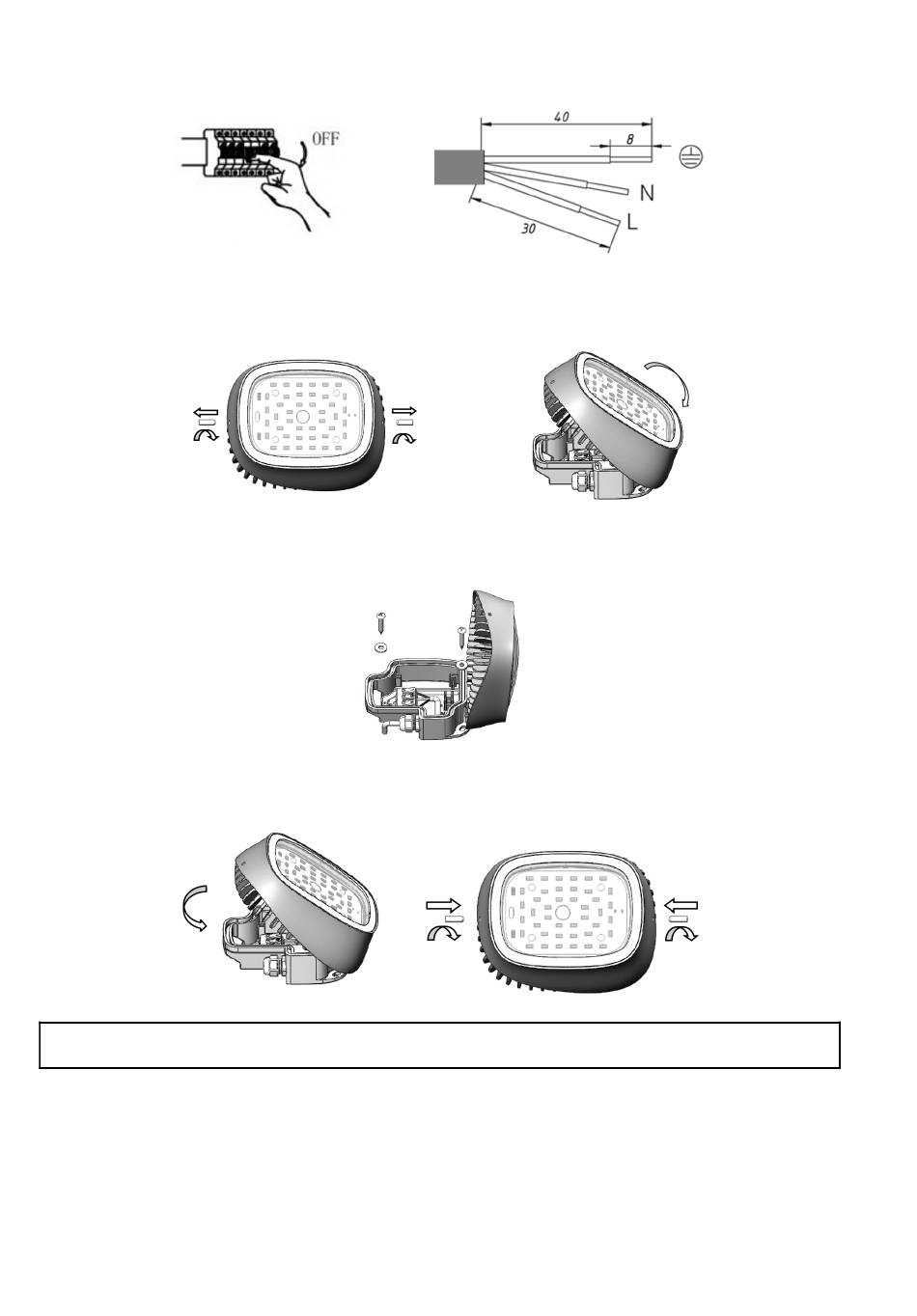

2. Switch mains power off. Strip the mains power cable (cross-section 2,5 mm2 max) according
to the fig. 2.1. Unpack the luminaire.
3. Use the hex wrench (included in delivery set) to remove two retainer screws from both ends of
the luminaire.
Open the cover.
4. Insert the power wire into the housing through the sealed lead-in. Attach the luminaire to the
mounting surface using the X3 mounting kit (not included in delivery kit) In case of using another
mounting elements, the warranty for the luminaire is not valid.
5. Adjust the sound sensor (for modifications with sensor).
6. Close the cover and tighten the two retainer screws from both ends of the luminaire using the
hex wrench (included in delivery set).
These instructions assume expert knowledge corresponding to a completed professional
education as an electrician.
5
