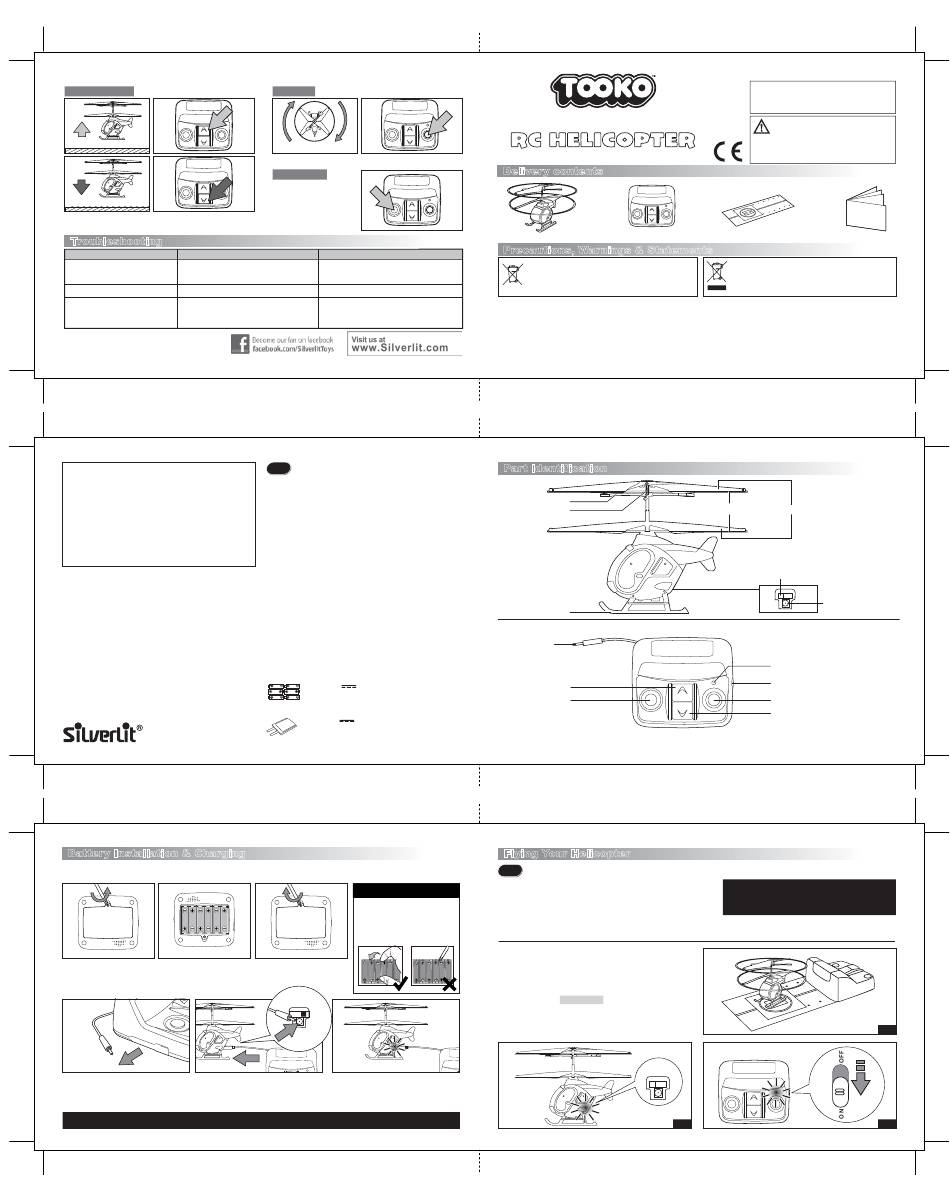

Silverlit TOOKO My First RC Helicopter Bedienungsanleitung

2. Flight control:
Take off and landing:
Take off
Landing
Press "Take off" button to lift up the helicopter and press "Landing"
button to land the helicopter.
Troubleshooting
Symptom
The helicopter does not response. - The helicopter and/ or the transmitter is switch off ("OFF").
- The battery of the helicopter is weak.
- The helicopter get crush and go into emergency stop mode
Suddenly stop and drop down when flying. - The battery of the helicopter is weak.
- Transmitter is not aligned to the helicopter.
Loss of control. - Another infrared control device using the same
frequency band.
- Affected by strong lighting.
- Out of the transmission range.
My First RC Helicopter
TM
6
FCC Statements
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1)This device may not cause harmful interference, and
2)This device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installat
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is enco:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This helicopter is equipped with a LiPo rechargeable battery,
please pay attention to the following cautions for safety use:
- Do not dispose the battery in fire or heat.
- Do not use or leave the battery near a heat source such as fire or heater.
- Do not strike or throw the battery against hard surface.
- Do not immerse the battery in water, and keep the battery in a cool dry environment.
- When recharging, only use the battery charger specifically for that purpose.
- Do not over-discharge the battery.
- Do not connect the battery to an electrical outlet.
- Do not directly solder the battery and pierce the battery with a nail or other sharp object.
- Do not disassemble or alter the battery.
- Charge the battery every 6 months.
- Do not transport or store the battery together with metal objects such as necklaces, hairpins etc.
- As for a used battery, please recycle after covering the battery terminals with insulation tape or
inserting it to an individual poly-bag.
- This toy (helicopter) contains battery that is non-replaceable
Notes:
- Under the environment with electrostatic discharge, the product may malfunction and
require user to reset the product.
- New alkaline batteries are recommended to use in this product to obtain best and
maximum performance.
- This product must only be used with the recommended charger.
Silverlit SAS, 80 rue Barthelemy Danjou,
92100 Boulogne-Billancourt / France.
©2015 Silverlit. All rights reserved.
2
Battery Installation & Charging
Transmitter Battery Installation (*Make sure the power switch is on "OFF" position.)
When the power indiacator on transmitter starts blinkling, replace the batteries.
1. Open the battery compartment 2. Insert 6 AA batteries in the
by loosening the screw. battery compartment with
correct polarity.
Charging Helicopter
1. Take out the charging plug from the left side 2. Switch off the helicopter. Insert the charging
of transmitter. plug into the charging socket on the
helicopter.
Note: 1. The helicopter can operate for about 3 minutes per every 30 - 40 minutes charging.
2. Before recharging the battery, wait 10 - 15 minutes for it to cool down.
4
Turn right:
Turn right
When the helicopter flies at a certain height. Press the "Turn right button"
to turn the helicopter clockwise.
Emergency stop:
Note: if the helicopter is
crashed,press "Emergency
stop" button on the transmitter
to stop the propellers, examine
the helicopter and ensure it has
no damage before switching it
on again.
Cause Correction
- Set the power switch to "ON"
- Recharge the battery of the helicopter.
- Wait for 2 seconds, press one time of the "Emergency stop"
button or "Landing" button on the transmitter.
- Recharge the battery of the helicopter.
- Point the transmitter to the helicopter.
- Avoid these if possible, or choose another place to
operate the helicopter.
- Change another environment to avoid direct lighting.
- The helicopter has a transmission range of 5 meters (15
feet) in open space.
Tip! Safety hints
- Never take apart or attempt to modify the product. This could damage the product.
- Helicopter piloting requires specific skills and should be learned under direct supervision of an
experienced adult.
- Never operate this product if it has damaged parts.
- This product is designed for indoor use only. Wind and short transmission range can lead to
loss of control.
- Attention! Do not fly the helicopter near persons and animals.
- Do not fly the helicopter in the vicinity of water and power lines.
- For better flight results, make sure you choose a sufficiently large room, free of obstacles such
as lamps, loose objects, etc.
- Always keep your eyes on the helicopter and prevent it from landing or crashing near your
head, your body, or on other people.
- Stand during operation in order to get out of the way of the helicopter quickly if necessary.
- Always switch the helicopter and the transmitter off when not operating.
- Warning! Do not touch the running rotors. Keep hands, hair and loose clothes away from
moving parts to avoid injury.
- Never hold or throw any objects into the running rotors.
- Attention! Risk of eye injuries! Keep a safety distance of at least 1 metre.
- Instruction sheet and packaging must be retained since it contains important information.
Battery warnings:
- Non-rechargeable batteries are not to be recharged.
- Rechargeable batteries are to be removed before being charged. (Transmitter only)
- Rechargeable batteries should be charged under adult supervision. (Transmitter only)
- Different types of batteries or new and used batteries are not to be mixed. (Transmitter only)
- Only batteries of the same or equivalent type as recommended are to be used.
- Batteries are to be inserted with correct polarity. (+ and –)
- Exhausted batteries are to be removed from the product. (Transmitter only)
- The supply terminals are not to be short-circuited.
- Do not mix old and new batteries. (Transmitter only)
- Do not mix alkaline batteries, standard batteries (carbon-zinc) and rechargeable batteries
(nickel-cadmium). (Transmitter only)
Battery requirement for Transmitter:
Power Supply :
Rating : DC 9 V , 3.2 W
Batteries : 6 x 1.5 V "AA"/LR6/AM3 (not included)
Battery requirement for Helicopter:
Power Supply :
Rating : DC 3.7 V , 7.5 W
Batteries : 1 x 3.7 V LiPo Rechargeable Battery Pack (included)
Capacity : 200 mAh
Warning !
Remove these
DO NOT
batteries from
remove or
the unit by
install batteries
pulling up on one
using sharp or
end of each
metal tools.
battery positive
by hand.
3. Close the battery compartment
cover.
ON OFF
3. Switch on the transmitter. The charging
process will begin automatically and the
green charging indicator will light up.
Unplug the charging plug after the charging
indicator turns off, charging is completed.
84703 IM - Printing 1C, Size: 296mm x 105mm
EI-8937a
MY FIRST
RC HELICOPTER
Delivery contents
Helicopter Transmitter
Precautions, Warnings & Statements
The crossed-out dustbin symbol indicates that batteries, rechargeable batteries, button cells,
battery packs, etc. must not be put in the household waste. Batteries are harmful to health and
the environment. Please help to protect the environment from health risks. If the toy is out of
use, please use common household tool to break the product for built-in rechargeable battery
operated toy or unscrew the battery door for replaceable battery operated toy, then take the
battery out from the toy. Dispose of battery in accordance with your local battery recycling or
disposal laws.
Safety precautions:
Warning: Conversion or modifications to this product not expressly approved by the party responsible
for compliance could void the user's authority to operate the product.
- The transmitter-charger is tailor-made for the LiPo rechargeable battery used in helicopter. Do not use it
to charge any battery other than that in the helicopter.
Special notes:
- Please read the operation instructions carefully prior to the first use.
- Only operate the product indoor.
Part Identification
Helicopter
Stabiliser
Stabiliser linkage
Skid
Transmitter
Charging plug
Take off button
Emergency stop button
Flying Your Helicopter
Tip! Operation hints
- If the helicopter is crashed, switched off the helicopter and the
transmitter. Examine the helicopter and ensure it has no damage before
switching them on again.
- Don't operate the helicopter under the direct bright light it will affect the
control system of your helicopter.
- Don't cover the IR diodes of the transmitter as it will block the IR signal.
- Don't stick any other label onto the helicopter as it will affect receiving
of IR signal.
1. Start to play
- Switch on the helicopter, the power LEDs will flash. (fig.1)
- Put the helicopter and the transmitter on the correct postion on the
playmat. (fig.2)
- Switch on the transmitter. (fig.3)
- Go through and study 2. Flight Control section before you start to fly
your helicopter.
ON OFF
For Ages 4+ Para 4+ años
Ab 4 Jahre Dai 4 anni in su
Pour 4 ans et plus Для детей от 4 лет
Voor leeftijd 4+ Para idades superiores a 4 anos
WARNING:
CHOKING HAZARD - Small parts.
Not for Children under 3 years.
Play Mat Instructions manual
Waste Electrical and Electronic Equipment (WEEE)
When this appliance is out of use, please remove all batteries and dispose of them
separately. Bring electrical appliances to the local collecting points for waste electrical
and electronic equipment. Other components can be disposed of in domestic refuse.
Care and Maintenance:
- Always remove batteries from the product when it is not being used for a long period of
time. (Transmitter only)
- Regularly examine for damage to the plug, enclosure and other parts. In the event of any
damage, the product must not be used with the transmitter charger until the damage has
been repaired.
- Wipe the product gently with a clean cloth.
- Keep the product away from direct heat.
- Do not submerge the product into water that can damage the electronic assemblies.
Protective rings Main rotor blade
Power switch
ON OFF/CHG
Charging socket
Power indicator
Power switch
Turn right button
Landing button
Notes:
- The flying level would be different on different ground.
- Confirm the transmitter points to the helicopter.
- If finish playing, store your toys into the package.
fig.1
English
1
3
fig.2
fig.3
5
