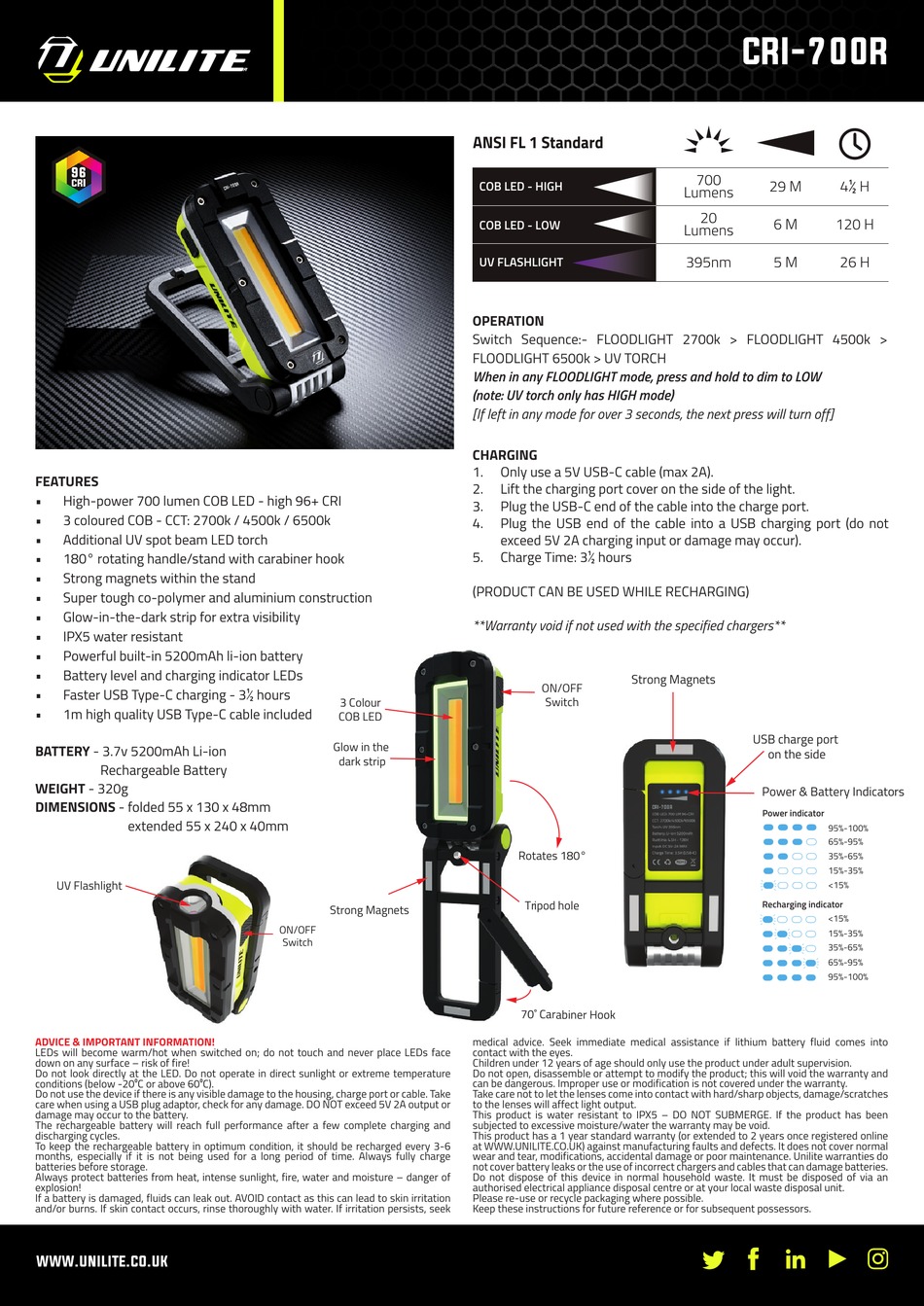

UNILITE CRI-700R Bedienungsanleitung

FEATURES
• High-power 700 lumen COB LED - high 96+ CRI
• 3 coloured COB - CCT: 2700k / 4500k / 6500k
• Additional UV spot beam LED torch
• 180° rotating handle/stand with carabiner hook
• Strong magnets within the stand
• Super tough co-polymer and aluminium construction
• Glow-in-the-dark strip for extra visibility
• IPX5 water resistant
• Powerful built-in 5200mAh li-ion battery
• Battery level and charging indicator LEDs
• Faster USB Type-C charging - 3½ hours
• 1m high quality USB Type-C cable included
BATTERY - 3.7v 5200mAh Li-ion
Rechargeable Battery
WEIGHT - 320g
DIMENSIONS - folded 55 x 130 x 48mm
extended 55 x 240 x 40mm
UV Flashlight
ADVICE & IMPORTANT INFORMATION!
LEDs will become warm/hot when switched on; do not touch and never place LEDs face
down on any surface – risk of fire!
Do not look directly at the LED. Do not operate in direct sunlight or extreme temperature
conditions (below -20⁰C or above 60⁰C).
Do not use the device if there is any visible damage to the housing, charge port or cable. Take
care when using a USB plug adaptor, check for any damage. DO NOT exceed 5V 2A output or
damage may occur to the battery.
The rechargeable battery will reach full performance after a few complete charging and
discharging cycles.
To keep the rechargeable battery in optimum condition, it should be recharged every 3-6
months, especially if it is not being used for a long period of time. Always fully charge
batteries before storage.
Always protect batteries from heat, intense sunlight, fire, water and moisture – danger of
explosion!
If a battery is damaged, fluids can leak out. AVOID contact as this can lead to skin irritation
and/or burns. If skin contact occurs, rinse thoroughly with water. If irritation persists, seek
www.unilite.co.uk
3 Colour
COB LED
Glow in the
dark strip
Strong Magnets
ON/OFF
Switch
ANSI FL 1 Standard
COB LED - HIGH
COB LED - LOW
UV FLASHLIGHT
OPERATION
Switch Sequence:- FLOODLIGHT 2700k > FLOODLIGHT 4500k >
FLOODLIGHT 6500k > UV TORCH
When in any FLOODLIGHT mode, press and hold to dim to LOW
(note: UV torch only has HIGH mode)
[If left in any mode for over 3 seconds, the next press will turn off]
CHARGING
1. Only use a 5V USB-C cable (max 2A).
2. Lift the charging port cover on the side of the light.
3. Plug the USB-C end of the cable into the charge port.
4. Plug the USB end of the cable into a USB charging port (do not
exceed 5V 2A charging input or damage may occur).
5. Charge Time: 3½ hours
(PRODUCT CAN BE USED WHILE RECHARGING)
**Warranty void if not used with the specified chargers**
Strong Magnets
ON/OFF
Switch
Rotates 180°
Tripod hole
medical advice. Seek immediate medical assistance if lithium battery fluid comes into
contact with the eyes.
Children under 12 years of age should only use the product under adult supervision.
Do not open, disassemble or attempt to modify the product; this will void the warranty and
can be dangerous. Improper use or modification is not covered under the warranty.
Take care not to let the lenses come into contact with hard/sharp objects, damage/scratches
to the lenses will affect light output.
This product is water resistant to IPX5 – DO NOT SUBMERGE. If the product has been
subjected to excessive moisture/water the warranty may be void.
This product has a 1 year standard warranty (or extended to 2 years once registered online
at WWW.UNILITE.CO.UK) against manufacturing faults and defects. It does not cover normal
wear and tear, modifications, accidental damage or poor maintenance. Unilite warranties do
not cover battery leaks or the use of incorrect chargers and cables that can damage batteries.
Do not dispose of this device in normal household waste. It must be disposed of via an
authorised electrical appliance disposal centre or at your local waste disposal unit.
Please re-use or recycle packaging where possible.
Keep these instructions for future reference or for subsequent possessors.
CRI-700R
700
29 M 4 H
Lumens
20
6 M 120 H
Lumens
395nm 5 M 26 H
USB charge port
on the side
Power & Battery Indicators
Power indicator
95%-100%
65%-95%
35%-65%
15%-35%
<15%
Recharging indicator
<15%
15%-35%
35%-65%
65%-95%
95%-100%
