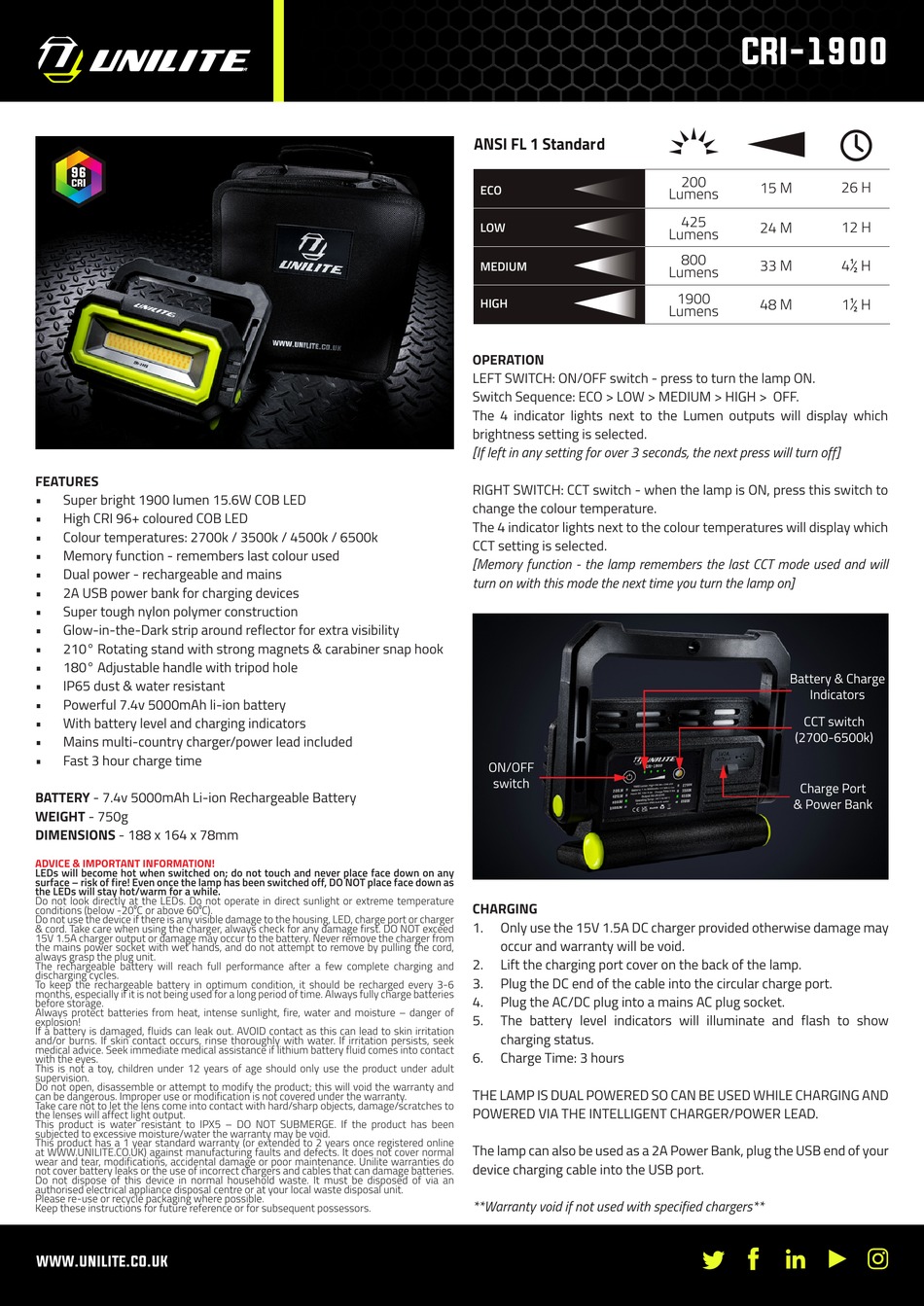

UNILITE CRI-1900 Bedienungsanleitung

FEATURES
• Super bright 1900 lumen 15.6W COB LED
• High CRI 96+ coloured COB LED
• Colour temperatures: 2700k / 3500k / 4500k / 6500k
• Memory function - remembers last colour used
• Dual power - rechargeable and mains
• 2A USB power bank for charging devices
• Super tough nylon polymer construction
• Glow-in-the-Dark strip around reflector for extra visibility
• 210° Rotating stand with strong magnets & carabiner snap hook
• 180° Adjustable handle with tripod hole
• IP65 dust & water resistant
• Powerful 7.4v 5000mAh li-ion battery
• With battery level and charging indicators
• Mains multi-country charger/power lead included
• Fast 3 hour charge time
BATTERY - 7.4v 5000mAh Li-ion Rechargeable Battery
WEIGHT - 750g
DIMENSIONS - 188 x 164 x 78mm
ADVICE & IMPORTANT INFORMATION!
LEDs will become hot when switched on; do not touch and never place face down on any
surface – risk of fire! Even once the lamp has been switched off, DO NOT place face down as
the LEDs will stay hot/warm for a while.
Do not look directly at the LEDs. Do not operate in direct sunlight or extreme temperature
conditions (below -20⁰C or above 60⁰C).
Do not use the device if there is any visible damage to the housing, LED, charge port or charger
& cord. Take care when using the charger, always check for any damage first. DO NOT exceed
15V 1.5A charger output or damage may occur to the battery. Never remove the charger from
the mains power socket with wet hands, and do not attempt to remove by pulling the cord,
always grasp the plug unit.
The rechargeable battery will reach full performance after a few complete charging and
discharging cycles.
To keep the rechargeable battery in optimum condition, it should be recharged every 3-6
months, especially if it is not being used for a long period of time. Always fully charge batteries
before storage.
Always protect batteries from heat, intense sunlight, fire, water and moisture – danger of
explosion!
If a battery is damaged, fluids can leak out. AVOID contact as this can lead to skin irritation
and/or burns. If skin contact occurs, rinse thoroughly with water. If irritation persists, seek
medical advice. Seek immediate medical assistance if lithium battery fluid comes into contact
with the eyes.
This is not a toy, children under 12 years of age should only use the product under adult
supervision.
Do not open, disassemble or attempt to modify the product; this will void the warranty and
can be dangerous. Improper use or modification is not covered under the warranty.
Take care not to let the lens come into contact with hard/sharp objects, damage/scratches to
the lenses will affect light output.
This product is water resistant to IPX5 – DO NOT SUBMERGE. If the product has been
subjected to excessive moisture/water the warranty may be void.
This product has a 1 year standard warranty (or extended to 2 years once registered online
at WWW.UNILITE.CO.UK) against manufacturing faults and defects. It does not cover normal
wear and tear, modifications, accidental damage or poor maintenance. Unilite warranties do
not cover battery leaks or the use of incorrect chargers and cables that can damage batteries.
Do not dispose of this device in normal household waste. It must be disposed of via an
authorised electrical appliance disposal centre or at your local waste disposal unit.
Please re-use or recycle packaging where possible.
Keep these instructions for future reference or for subsequent possessors.
www.unilite.co.uk
ANSI FL 1 Standard
ECO
LOW
MEDIUM
HIGH
OPERATION
LEFT SWITCH: ON/OFF switch - press to turn the lamp ON.
Switch Sequence: ECO > LOW > MEDIUM > HIGH > OFF.
The 4 indicator lights next to the Lumen outputs will display which
brightness setting is selected.
[If left in any setting for over 3 seconds, the next press will turn off]
RIGHT SWITCH: CCT switch - when the lamp is ON, press this switch to
change the colour temperature.
The 4 indicator lights next to the colour temperatures will display which
CCT setting is selected.
[Memory function - the lamp remembers the last CCT mode used and will
turn on with this mode the next time you turn the lamp on]
ON/OFF
switch
CHARGING
1. Only use the 15V 1.5A DC charger provided otherwise damage may
occur and warranty will be void.
2. Lift the charging port cover on the back of the lamp.
3. Plug the DC end of the cable into the circular charge port.
4. Plug the AC/DC plug into a mains AC plug socket.
5. The battery level indicators will illuminate and flash to show
charging status.
6. Charge Time: 3 hours
THE LAMP IS DUAL POWERED SO CAN BE USED WHILE CHARGING AND
POWERED VIA THE INTELLIGENT CHARGER/POWER LEAD.
The lamp can also be used as a 2A Power Bank, plug the USB end of your
device charging cable into the USB port.
**Warranty void if not used with specified chargers**
CRI-1900
200
26 H
15 M
Lumens
425
12 H
24 M
Lumens
800
33 M 4 H
Lumens
1900
48 M 1 H
Lumens
Battery & Charge
Indicators
CCT switch
(2700-6500k)
Charge Port
& Power Bank
