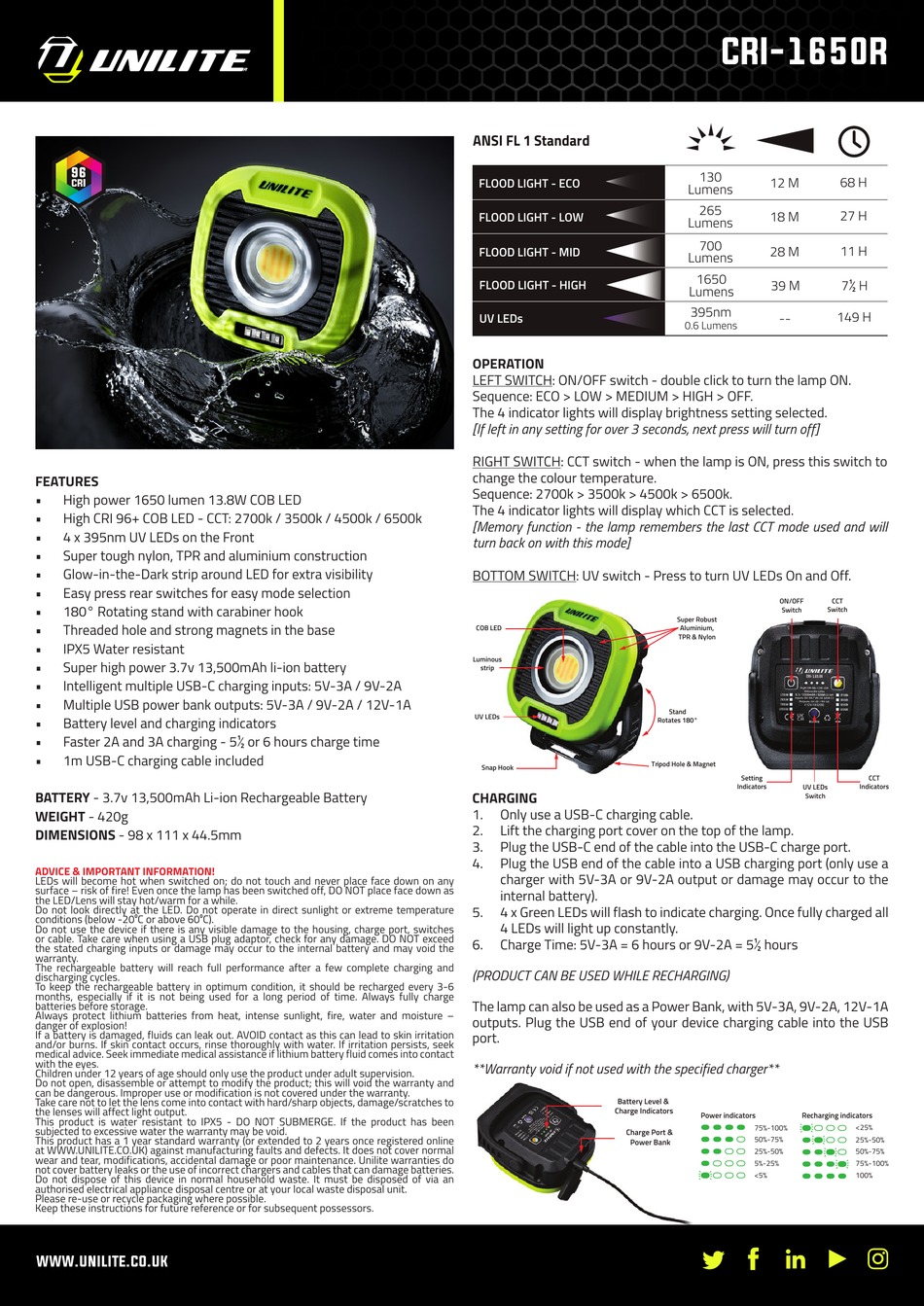

UNILITE CRI-1650R Kurzanleitung

FEATURES
• High power 1650 lumen 13.8W COB LED
• High CRI 96+ COB LED - CCT: 2700k / 3500k / 4500k / 6500k
• 4 x 395nm UV LEDs on the Front
• Super tough nylon, TPR and aluminium construction
• Glow-in-the-Dark strip around LED for extra visibility
• Easy press rear switches for easy mode selection
• 180° Rotating stand with carabiner hook
• Threaded hole and strong magnets in the base
• IPX5 Water resistant
• Super high power 3.7v 13,500mAh li-ion battery
• Intelligent multiple USB-C charging inputs: 5V-3A / 9V-2A
• Multiple USB power bank outputs: 5V-3A / 9V-2A / 12V-1A
• Battery level and charging indicators
• Faster 2A and 3A charging - 5½ or 6 hours charge time
• 1m USB-C charging cable included
BATTERY - 3.7v 13,500mAh Li-ion Rechargeable Battery
WEIGHT - 420g
DIMENSIONS - 98 x 111 x 44.5mm
ADVICE & IMPORTANT INFORMATION!
LEDs will become hot when switched on; do not touch and never place face down on any
surface – risk of fire! Even once the lamp has been switched off, DO NOT place face down as
the LED/Lens will stay hot/warm for a while.
Do not look directly at the LED. Do not operate in direct sunlight or extreme temperature
conditions (below -20⁰C or above 60⁰C).
Do not use the device if there is any visible damage to the housing, charge port, switches
or cable. Take care when using a USB plug adaptor, check for any damage. DO NOT exceed
the stated charging inputs or damage may occur to the internal battery and may void the
warranty.
The rechargeable battery will reach full performance after a few complete charging and
discharging cycles.
To keep the rechargeable battery in optimum condition, it should be recharged every 3-6
months, especially if it is not being used for a long period of time. Always fully charge
batteries before storage.
Always protect lithium batteries from heat, intense sunlight, fire, water and moisture –
danger of explosion!
If a battery is damaged, fluids can leak out. AVOID contact as this can lead to skin irritation
and/or burns. If skin contact occurs, rinse thoroughly with water. If irritation persists, seek
medical advice. Seek immediate medical assistance if lithium battery fluid comes into contact
with the eyes.
Children under 12 years of age should only use the product under adult supervision.
Do not open, disassemble or attempt to modify the product; this will void the warranty and
can be dangerous. Improper use or modification is not covered under the warranty.
Take care not to let the lens come into contact with hard/sharp objects, damage/scratches to
the lenses will affect light output.
This product is water resistant to IPX5 - DO NOT SUBMERGE. If the product has been
subjected to excessive water the warranty may be void.
This product has a 1 year standard warranty (or extended to 2 years once registered online
at WWW.UNILITE.CO.UK) against manufacturing faults and defects. It does not cover normal
wear and tear, modifications, accidental damage or poor maintenance. Unilite warranties do
not cover battery leaks or the use of incorrect chargers and cables that can damage batteries.
Do not dispose of this device in normal household waste. It must be disposed of via an
authorised electrical appliance disposal centre or at your local waste disposal unit.
Please re-use or recycle packaging where possible.
Keep these instructions for future reference or for subsequent possessors.
www.unilite.co.uk
ANSI FL 1 Standard
FLOOD LIGHT - ECO
FLOOD LIGHT - LOW
FLOOD LIGHT - MID
FLOOD LIGHT - HIGH
UV LEDs
OPERATION
LEFT SWITCH: ON/OFF switch - double click to turn the lamp ON.
Sequence: ECO > LOW > MEDIUM > HIGH > OFF.
The 4 indicator lights will display brightness setting selected.
[If left in any setting for over 3 seconds, next press will turn off]
RIGHT SWITCH: CCT switch - when the lamp is ON, press this switch to
change the colour temperature.
Sequence: 2700k > 3500k > 4500k > 6500k.
The 4 indicator lights will display which CCT is selected.
[Memory function - the lamp remembers the last CCT mode used and will
turn back on with this mode]
BOTTOM SWITCH: UV switch - Press to turn UV LEDs On and Off.
COB LED
Luminous
strip
UV LEDs
Snap Hook
CHARGING
1. Only use a USB-C charging cable.
2. Lift the charging port cover on the top of the lamp.
3. Plug the USB-C end of the cable into the USB-C charge port.
4. Plug the USB end of the cable into a USB charging port (only use a
charger with 5V-3A or 9V-2A output or damage may occur to the
internal battery).
5. 4 x Green LEDs will flash to indicate charging. Once fully charged all
4 LEDs will light up constantly.
6. Charge Time: 5V-3A = 6 hours or 9V-2A = 5½ hours
(PRODUCT CAN BE USED WHILE RECHARGING)
The lamp can also be used as a Power Bank, with 5V-3A, 9V-2A, 12V-1A
outputs. Plug the USB end of your device charging cable into the USB
port.
**Warranty void if not used with the specified charger**
Battery Level &
Charge Indicators
Charge Port &
Power Bank
CRI-1650R
130
12 M
Lumens
265
18 M
Lumens
700
28 M
Lumens
1650
39 M
Lumens
395nm
--
0.6 Lumens
ON/OFF
Switch
Super Robust
Aluminium,
TPR & Nylon
Stand
Rotates 180°
Tripod Hole & Magnet
Setting
Indicators
UV LEDs
Switch
Power indicators Recharging indicators
75%-100%
50%-75%
25%-50%
5%-25%
<5%
68 H
27 H
11 H
7 H
149 H
CCT
Switch
CCT
Indicators
<25%
25%-50%
50%-75%
75%-100%
100%
