Installation

A

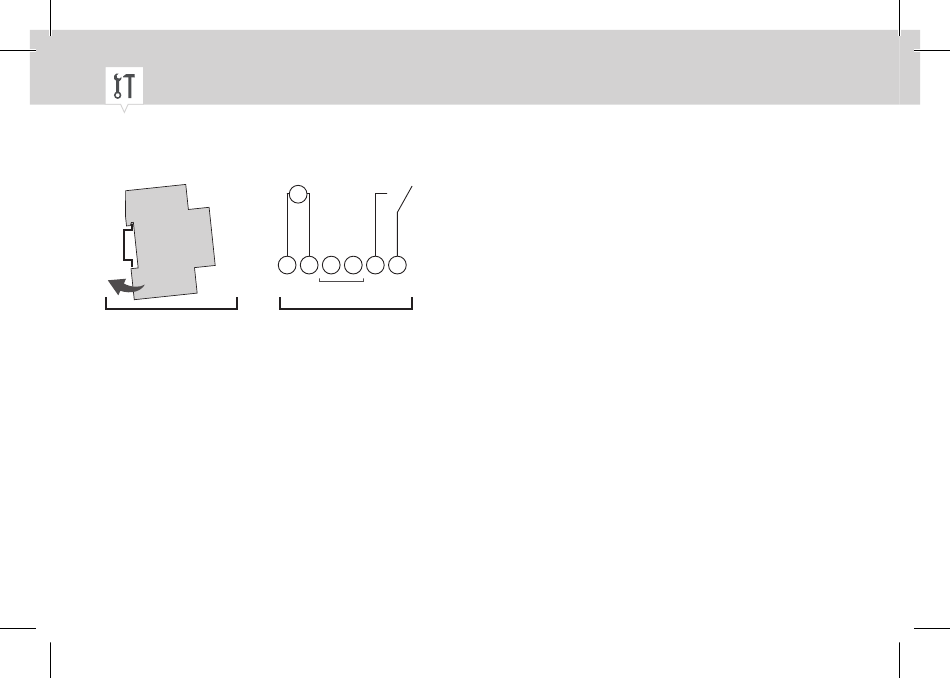

Fig. 4: Installation on a DIN rail and circuit diagram
A
Installation on a DIN rail
B
Circuit diagram
1.
Place the twilight switch on the DIN rail (Fig. 4/A) from above and press it back until it locks into
place.
2. Install the twilight switch in accordance with the circuit diagram (Fig. 4/B) (use wires with a
cross-section between 1 mm² and 2.5 mm²).
20
M
~
L N
1 2
3
4
Sensor
B
