Zebra Stripes: when enabled, the overexposed areas in the image will be displayed in zebra
stripes. Adjust the percentage of the zebra level using the slider under the option.
75 100
CH1 CH1
CH2 CH2
Waveform: when enabled, the bottom of the screen will show the relationship and degree of
the light and shadow in the current screen with a waveform.
75 100
CH1 CH1
CH2 CH2
©
10
2022 DJI All Rights Reserved.
24.5M WB 5600 ND Clear
B
08:02:16:06 08:02:16:06

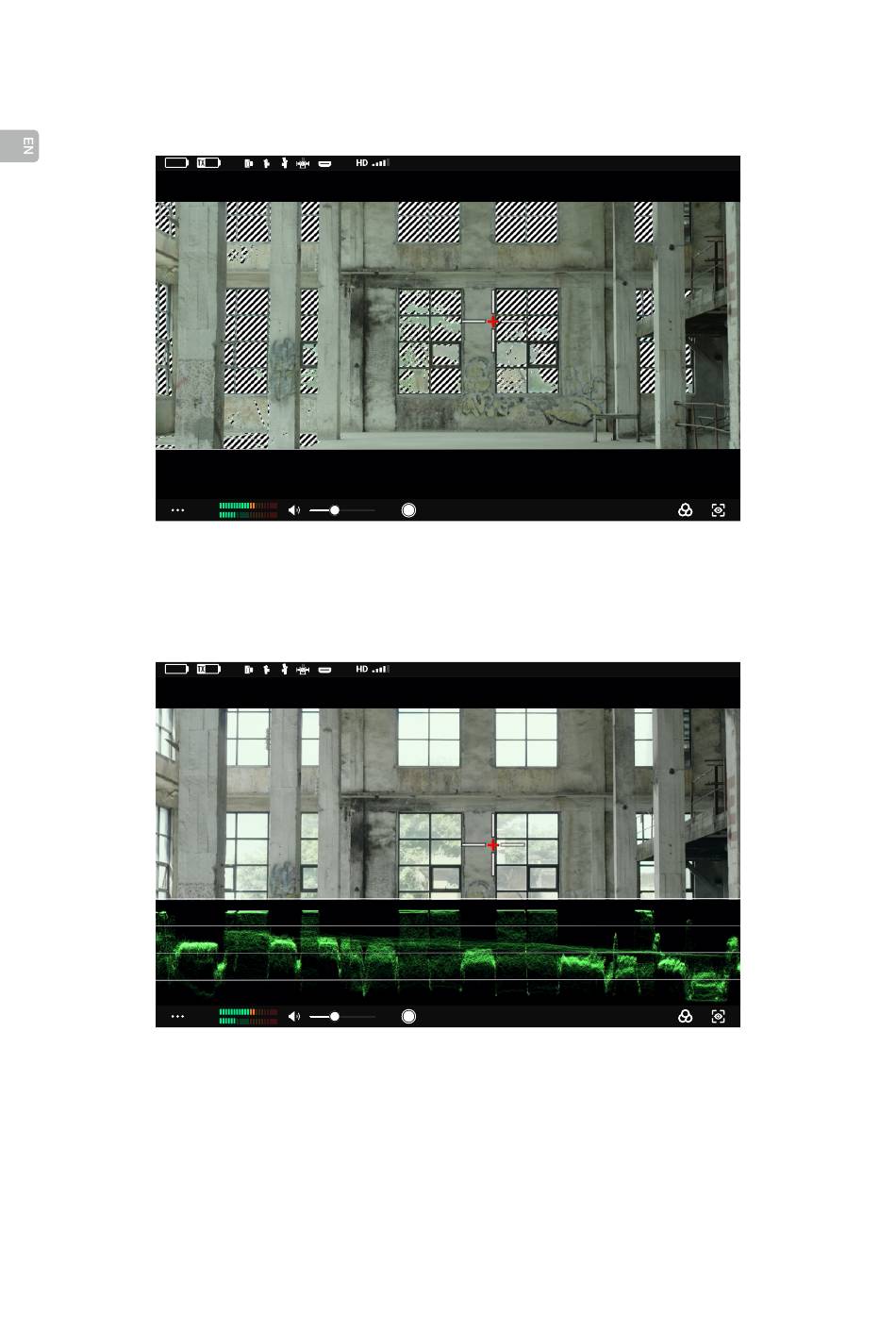

Zebra Stripes Effect Image
24.5M WB 5600 ND Clear
B
08:02:16:06 08:02:16:06
Waveform Effect Image
SS 1/50 IRIS F2.8 EI 800
A001C0018
SS 1/50 IRIS F2.8 EI 800
A001C0018
