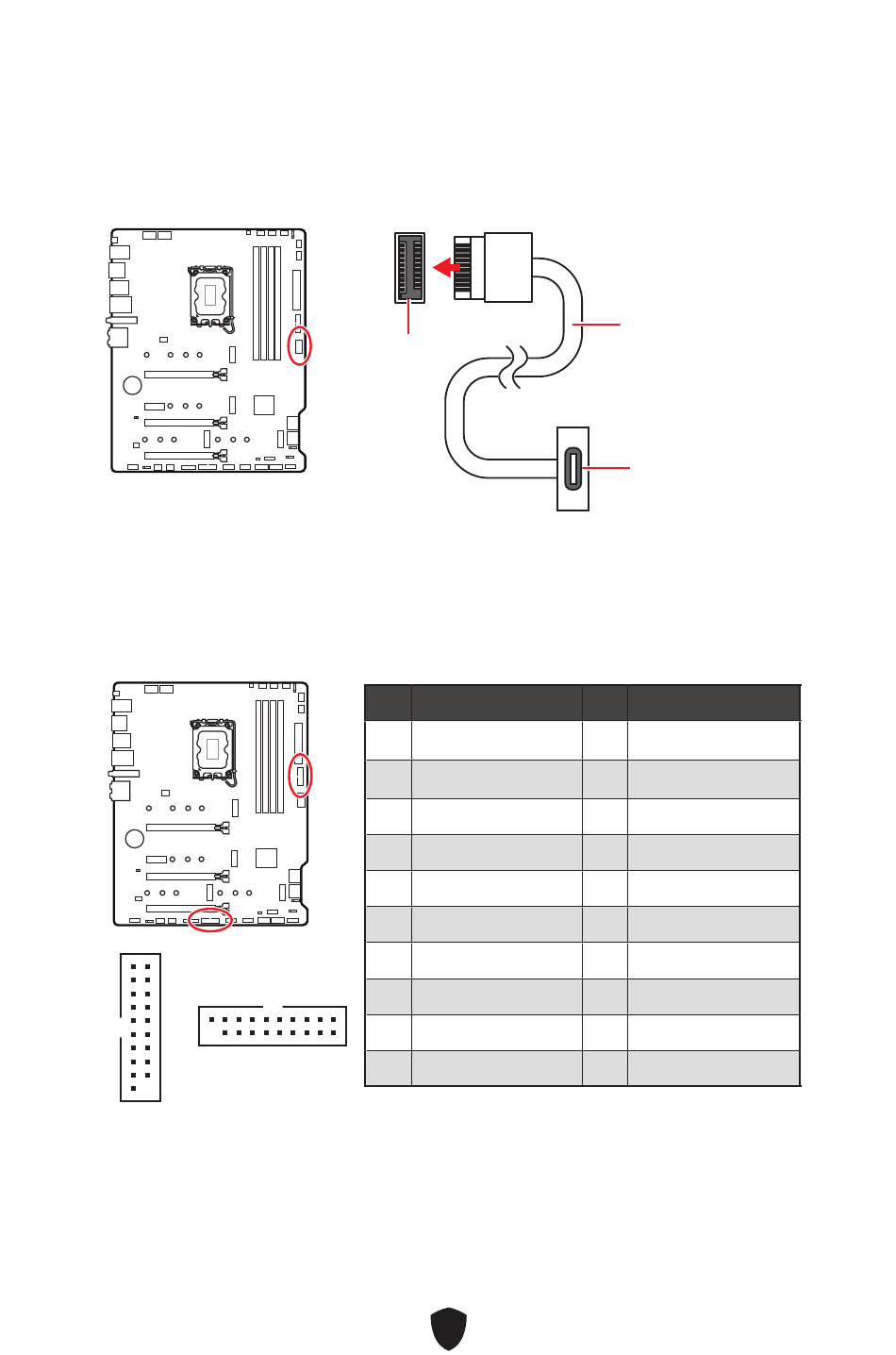

JUSB5: USB 3.2 Gen 2 Type-C Front Panel Connector

This connector allows you to connect USB 3.2 Gen 2 10Gbps Type-C connectors on the
front panel. The connectors possess a foolproof design. When you connect the cable,
be sure to connect it with the corresponding orientation.

JUSB3~4: USB 3.2 Gen 1 Connectors

These connectors allow you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
10 11
1
20
1 20
⚠
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
JUSB5
Pin Signal Name
1 Power
3 USB3_RX_DP
5 USB3_TX_C_DN
7 Ground
9 USB2.0+
11 USB2.0+
13 Ground
10 15 USB3_TX_C_DN
17 USB3_RX_DP
11
19 Power
36
USB Type-C Cable
USB Type-C port on
the front panel
Pin Signal Name
2 USB3_RX_DN
4 Ground
6 USB3_TX_C_DP
8 USB2.0-
10 Ground
12 USB2.0-
14 USB3_TX_C_DP
16 Ground
18 USB3_RX_DN
20 No Pin
