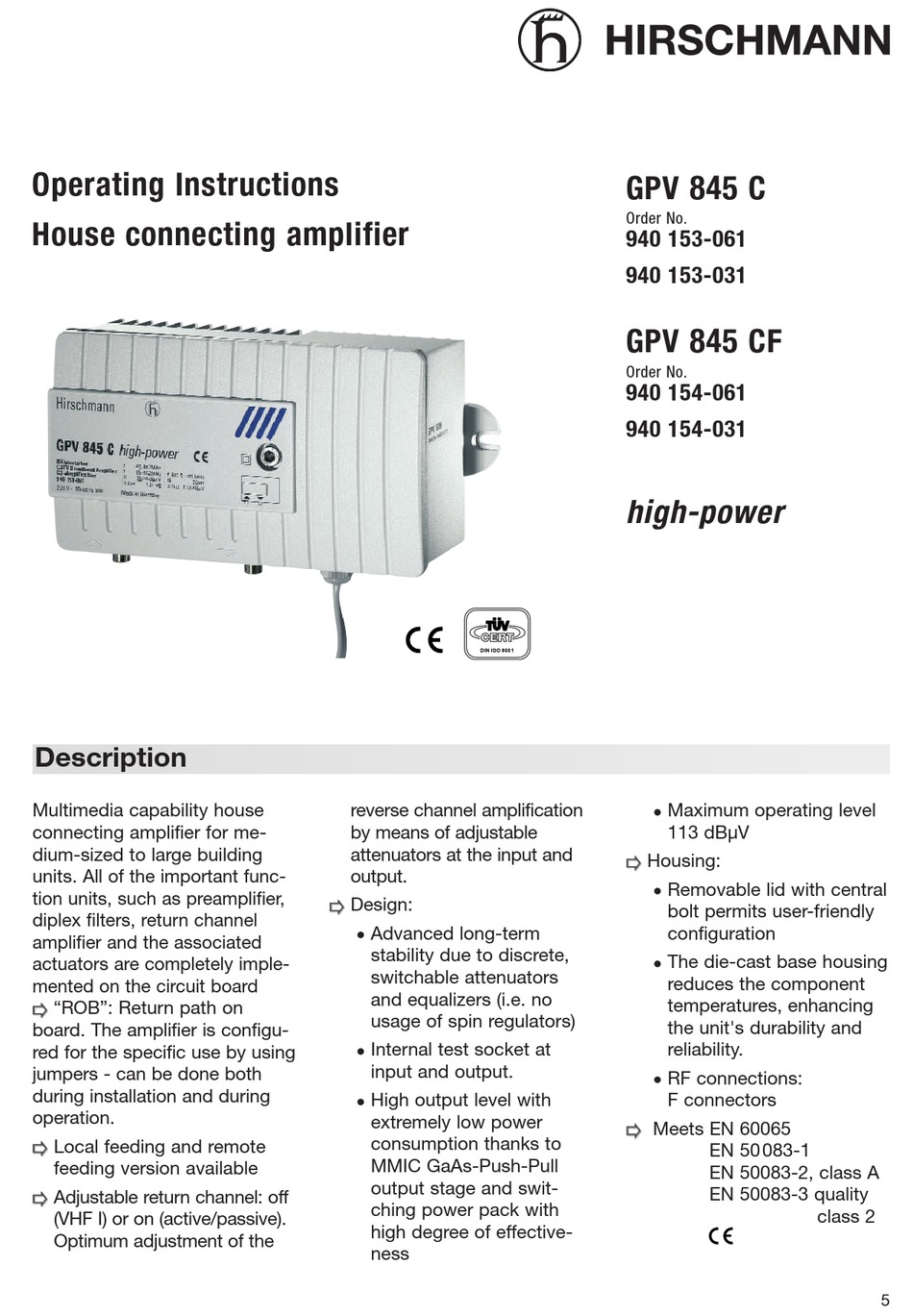

Operating Instructions
House connecting amplifier
Description
Multimedia capability house
connecting amplifier for me-
dium-sized to large building
units. All of the important func-
tion units, such as preamplifier,
diplex filters, return channel
amplifier and the associated
actuators are completely imple-
mented on the circuit board
"ROB": Return path on
3 3
3 3
board. The amplifier is configu-
red for the specific use by using
jumpers - can be done both
during installation and during
operation.
Local feeding and remote
3 3
3 3
feeding version available
Adjustable return channel: off
3 3
3 3
(VHF I) or on (active/passive).
Optimum adjustment of the
DIN ISO 9001
reverse channel amplification
by means of adjustable
attenuators at the input and
output.
Design:
3 3
3 3
• Advanced long-term
stability due to discrete,
switchable attenuators
and equalizers (i.e. no
usage of spin regulators)
• Internal test socket at
input and output.
• High output level with
extremely low power
consumption thanks to
MMIC GaAs-Push-Pull
output stage and swit-
ching power pack with
high degree of effective-
ness
GPV 845 C
Order No.
940 153-061
940 153-031
GPV 845 CF
Order No.
940 154-061
940 154-031
high-power
• Maximum operating level
113 dBµV
Housing:
3 3
3 3
• Removable lid with central
bolt permits user-friendly
configuration
• The die-cast base housing
reduces the component
temperatures, enhancing
the unit's durability and
reliability.
• RF connections:
F connectors
Meets EN 60065
3 3
3 3
EN 50 083-1
EN 50083-2, class A
EN 50083-3 quality
class 2
