Lighting Technologies HB LED G2 Montageanleitung Seite 12

3. Set the luminaire into desired position, tighten bracket screws (M5x16).
4. Mains connection (cable diameter 6-10 mm, wire cross-section 2.5 мм² max.).
Disassemble the connector. Strip power cable, external insulation 20 mm, inner - 7 mm. Put
cable through connector's nut and connect wires to terminals block according to polarity: L , N,
PE. Assemble connector by tightening nut until sealing ring is firmly pressed. Terminals'
tightening torque 0,5 Nm.
These instructions assume expert knowledge corresponding to a completed professional
education as an electrician.

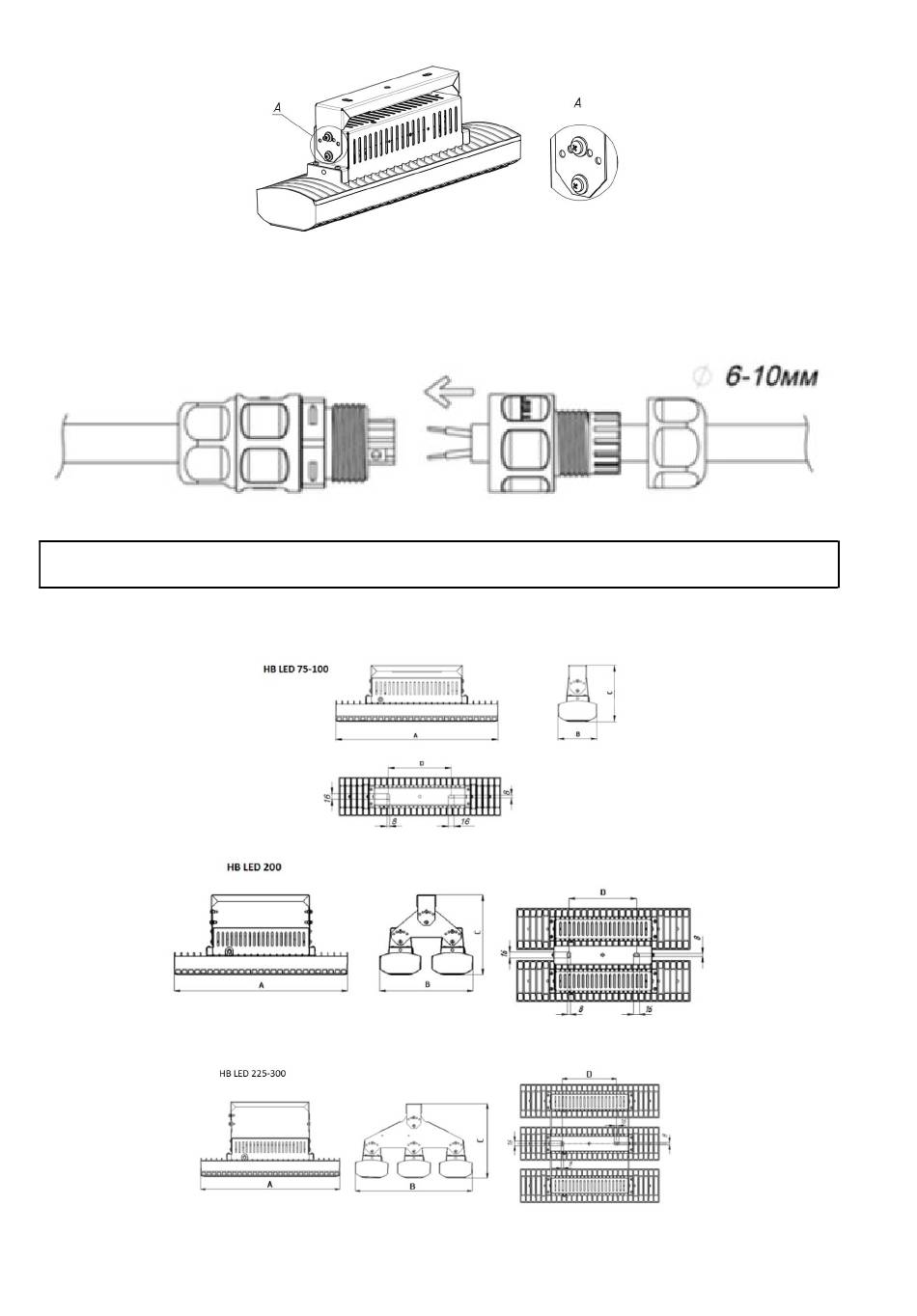

Overall and installation dimensions, mm
1.
2.
3.
12
