HMS SW7150 Bedienungsanleitung Seite 24

A 1
FI
G.
2
FIG. 3
FI
G.
3
2 3

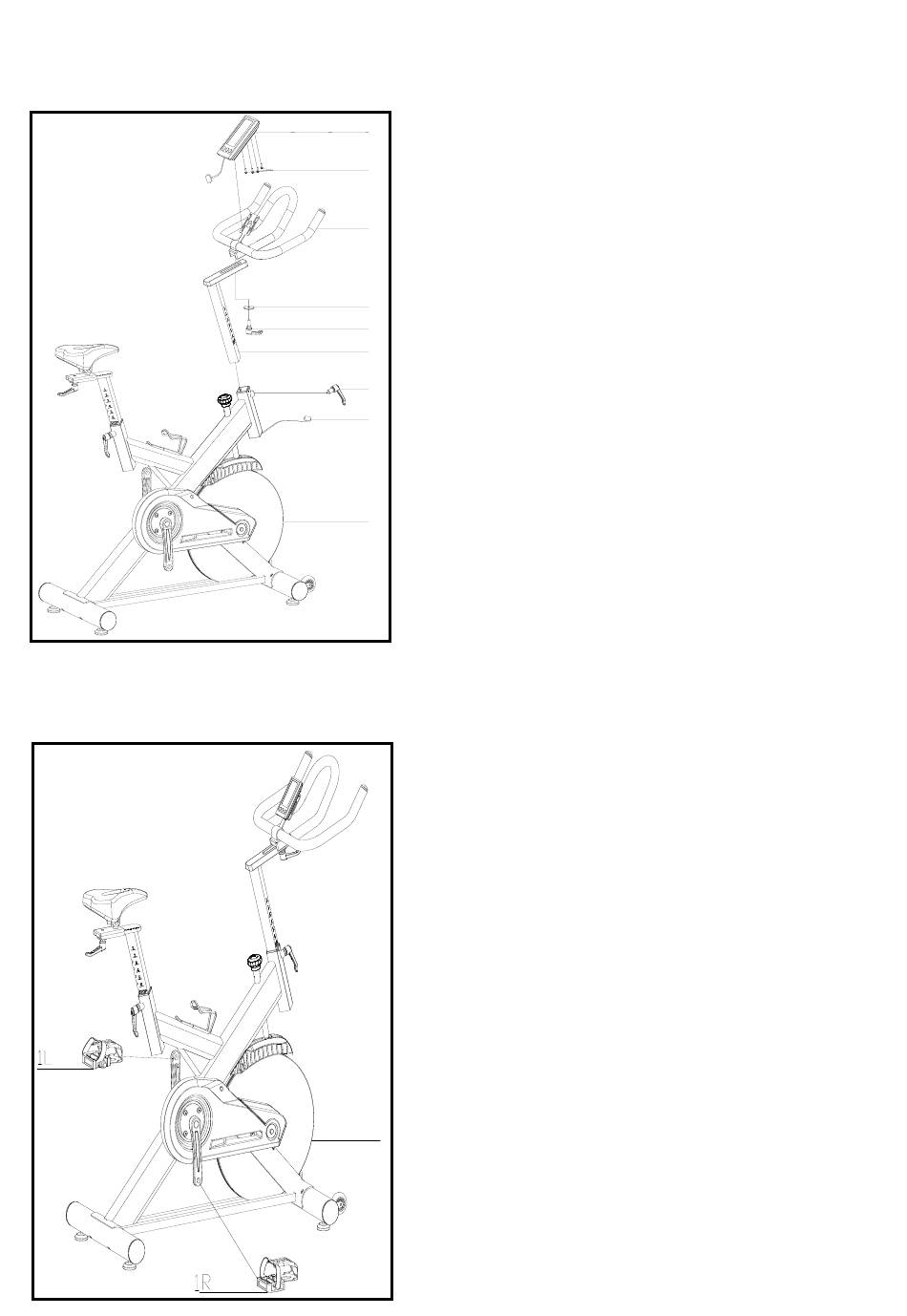

FIG.3:
5 5
Slide the Handlebar Post (pt.17) into the
handlebar post housing on the main
1 8
frame(pt.16). You will have to slacken the
knurled section of the L Shape Knob (pt.26)
and pull the knob back and then select the
2 0
desired height. Release the knob and
1 9
1 7
retighten the knurled portion.
Then fix the Handlebar (pt.18) with a flat
2 6
washer 1 (20) and L Shape knob (19).
7 8
A 2
ATTENTION: YOU SHOULD FIX THE
HANDLEBAR TIGHTLY.
1 6
Fix the Computer (pt.23) onto the
Computer Holder with bolt (pt.55),
connect the plug (A1&A2).
FIG.4:
The Pedals (pt.1 L & pt.1 R) are
marked "L" and "R" - Left and Right.
Connect them to their appropriate crank
arms. The right crank arm is on the
right- hand side of the cycle as you sit
on it.
Note that the Right pedal should be
threaded on clockwise and the Left
pedal anticlockwise.
1 6
