Philips UVCA200 Bedienungsanleitung

220V
240V
Type Desc
12NC
9114 015 48581
UVCA200 EU
9114 015 48681
UVCA200 UKI
1
2
3
4
Operation
1. Plug in
Plug in the power cord, power the machine, the buzzer will beep, at the same time, the power key indicator is always on, indicating that power is now on.
2. Power on/off
Power on: touch the power on key to start the machine when it is off. Default display mode is:
A. The fan speed indicator is on 2/3, and the fan speed is in gear 2;
B. The UV indicator is on and the UV lamp is in working state;
C. The time indicator is "060", indicating that the disinfection time is 60 minutes, and the machine will automatically shut down after 60 minutes.
Power off: to shut down the product before disinfection duration is finished, please press the power switch button. Only the power indicator will remain on
while all the rest will turn off with notification tone.
3. Fan Speed Button
Press fan speed button to select the fan speed, 1 (low speed), /2 (medium speed), /3 (Max speed). The product starts quickly and smoothly and can reach
the maximum air volume within 20 seconds (if set to the maximum speed).
4. Timing Settings
Press Timer button to select disinfection duration, ON-30min-60min-120min as a cycle. The "888" area will turn off after 30 seconds without any operation.
The display will come back on again after touching any button.
5. Lock
By pressing the lock key for more than 3s then the lock indicator light, that the lock mode has started. At this point, pressing any key is invalid (the lock
indicator will flash 3 times when pressing any key). Press the lock key for more than 3s to exit lock mode. You can also exit the lock mode by removing the
power or when disinfection duration is finished.
© 2021, Signify Holding All rights reserved
Max.
50Hz
40 °C
Min.
60Hz
°C
Power
4×TUV PL-L 18W
120W
9279 030 04007
10 11
Lamp
Lamp
Holder
2G11
UV-C wavelength: 254nm
5
6
7
8
9
OR
Ballast Shading cloth
HF-P218/236
9114 018 20890
9114 018 21890

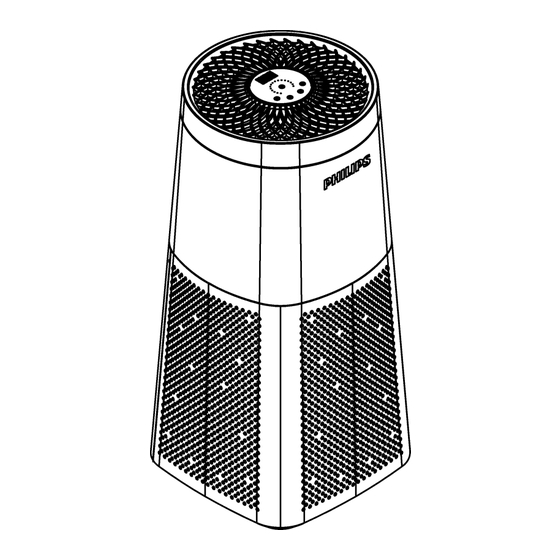

1 – Control panel
2 – Air outlet
3 – Body
4 – Air inlet
5 – Timing
6 – Fan speed light
7 – UV working light
8 – Power switch
9 – Lock
10 – Timing switch
11 – Fan speed control
P1
UKI
EU
12.3
