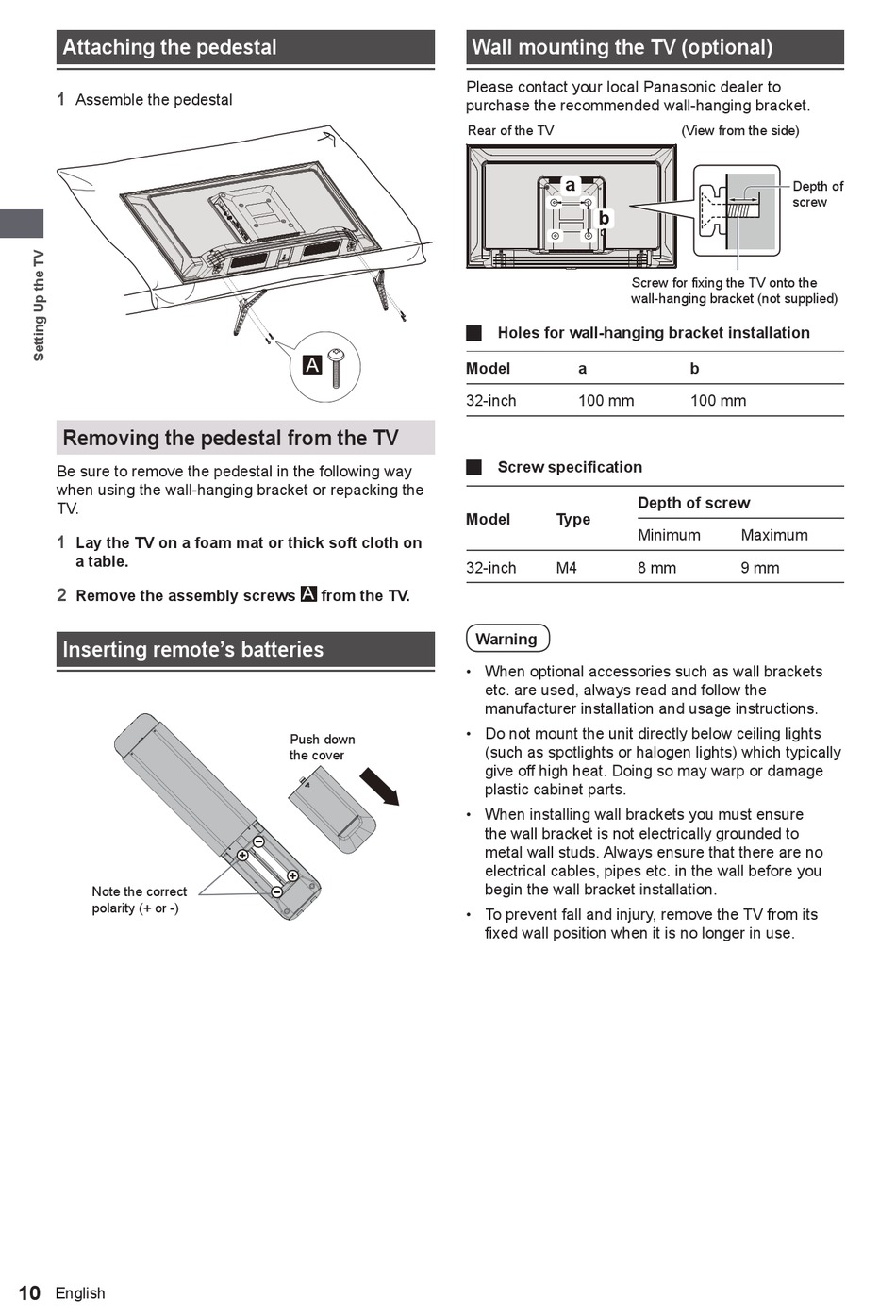

Attaching the pedestal
1
Assemble the pedestal
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the
TV.
1
Lay the TV on a foam mat or thick soft cloth on
a table.
2
Remove the assembly screws
Inserting remote's batteries
Note the correct
polarity (+ or -)
10
English
from the TV.
Push down
the cover
Wall mounting the TV (optional)
Please contact your local Panasonic dealer to
purchase the recommended wall-hanging bracket.
Rear of the TV
a
b
Screw for fixing the TV onto the
wall-hanging bracket (not supplied)
J Holes for wall-hanging bracket installation
Model a
32-inch 100 mm
J Screw specification
Model Type
32-inch M4
Warning
• When optional accessories such as wall brackets
etc. are used, always read and follow the
manufacturer installation and usage instructions.
• Do not mount the unit directly below ceiling lights
(such as spotlights or halogen lights) which typically
give off high heat. Doing so may warp or damage
plastic cabinet parts.
• When installing wall brackets you must ensure
the wall bracket is not electrically grounded to
metal wall studs. Always ensure that there are no
electrical cables, pipes etc. in the wall before you
begin the wall bracket installation.
• To prevent fall and injury, remove the TV from its
fixed wall position when it is no longer in use.
(View from the side)
Depth of
screw
b
100 mm
Depth of screw
Minimum Maximum
8 mm 9 mm
