PRESET
To set the upper crossover frequency of the subwoofer, select PRESET from the main menu, confirm,
then select the desired preset and confirm again. To exit the menu level, select the arrow symbol and
confirm your selection.

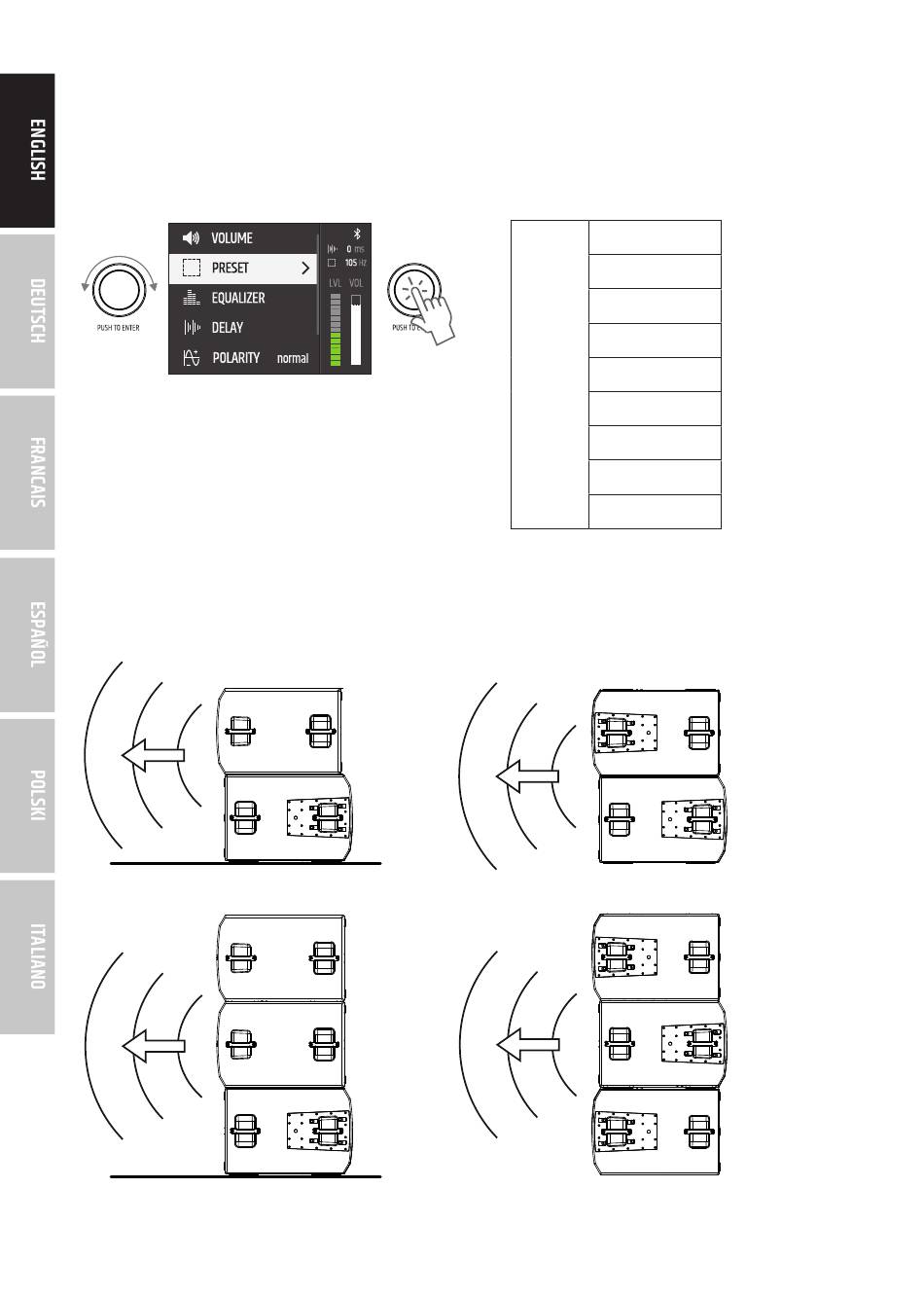

With the help of one or two additional subwoofers (same models, same software version) and the 105
Hz Cardioid preset, a subwoofer array with directional radiation can be realized. The subwoofers are
arranged horizontally, stacked on top of each other (ground stack) and placed upright (standing) or
horizontally next to each other (see illustrations).
