OPERATION AND SERVICE INFORMATION
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings.
B
Front of
Vehicle
Ref Whi 4

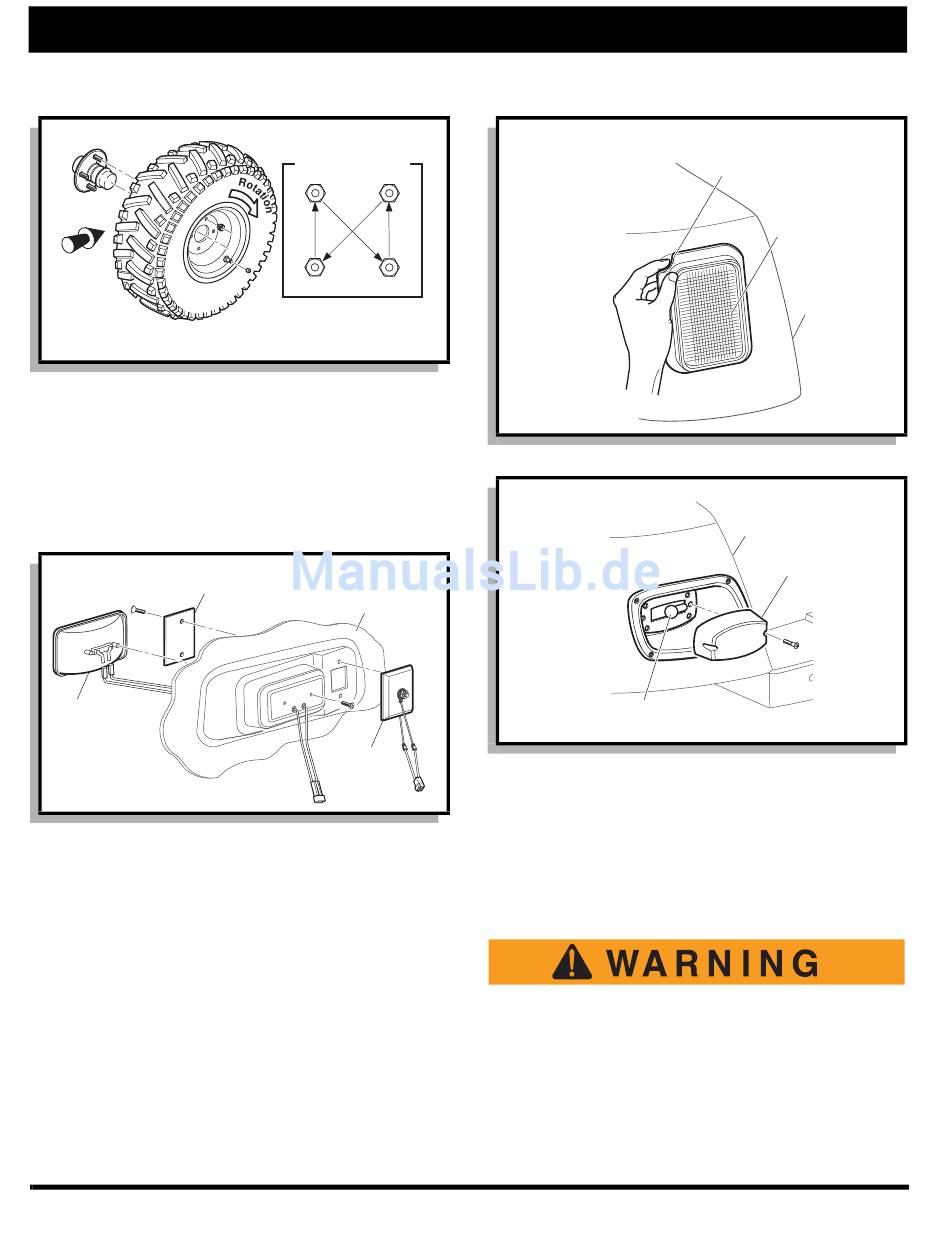

Fig. 26 Unidirectional Tire Wheel Installation

LIGHT BULB REPLACEMENT

For vehicles with headlights, locate the two screws on
backside of cowl that secure headlight (Ref. Fig. 27 on
page 18). Remove screws, pull headlight out and dis-
connect wires. Connect wires to new headlight, install in
cowl and secure with screws previously removed.
Headlight
Bulb
Ref Hdr 2
Fig. 27 Headlight Replacement
To replace the turn signal light bulb, support turn signal
housing from backside of cowl while removing two
screws securing lens. Install new bulb and replace lens.
To replace the tail and brake light bulb, roll the rubber
bezel from around the edge of the taillight and remove
lens (Ref. Fig. 28 on page 18). Install replacement bulb
and replace lens.
To replace the tail and brake light bulb, remove hard-
ware securing lens and remove lens. Install replacement
bulb (Ref. Fig. 29 on page 18).

FUSE REPLACEMENT

To replace fuses, locate the fuse block under the driver
side seat. Pull out old fuse and replace with a new auto-
Page 18
'Cross Sequence'
1
4
Tire style may vary
Turn Signal Lens
Inside
of Cowl
Turn Signal
Housing
3
2
Ref Tlr 2
Fig. 28 Tail and Brake Light Bulb Replacement
Ref Tlr 1
Fig. 29 Tail and Brake Light Bulb Replacement
motive type fuse. Headlight and taillight bulbs and fuses
are available from a local Distributor, an authorized
Branch or the Service Parts Department.

VEHICLE WITH A DISCHARGED BATTERY

To reduce the possibility of severe injury or
death from inadvertent motion, do not attempt
to 'jump start' a vehicle.
The vehicle is equipped with a starter/generator and
does not idle. When starting the engine, the starter/gen-
erator functions as a starter and with the engine running,
it functions as a generator.
Roll Rubber
Bezel Away
From Body
Tail/Brake
Light
Rear
Fender
Tail Light
Lens
Tail Light
Bulb
Rear
Fender
