INSTALLATION
Installing the MID meter
Communication installation

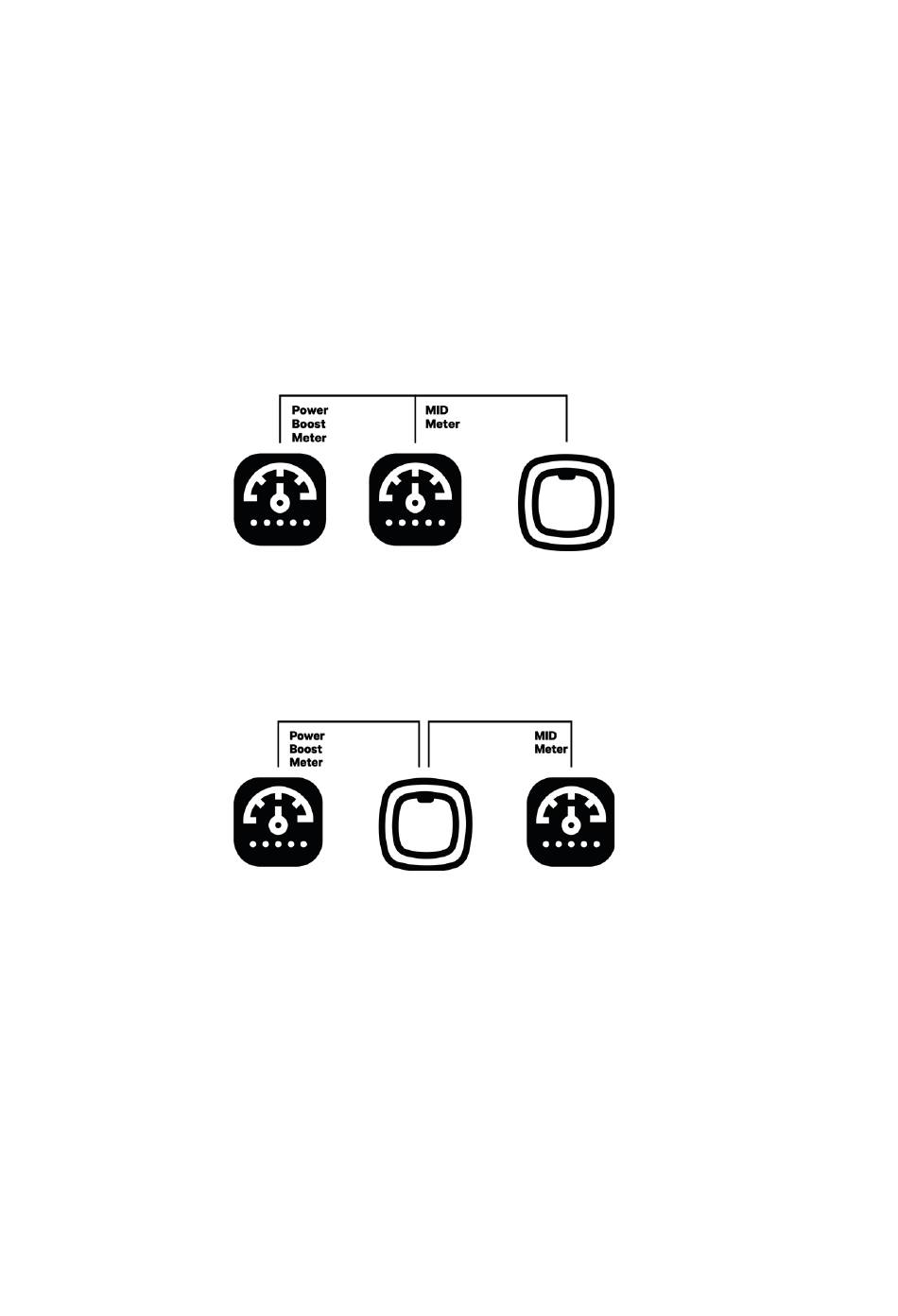

You can choose one of the following communication installations schemes, according to the logistical
limitations of your charging infrastructure:
• Bus line installation: Recommended when the Power Boost (PB) and the MID meters are close to
each other, or located one after the other. It is possible to create a communication bus with only one
cable which will be wired to the RS485 connector.
• Two lines installation: In case the PB and MID meters are far from each other and in opposite
directions, you can opt for two different connection lines. Both will start and will be connected to the
same point on the RS485 charger connector.
Both three-phase and single-phase installation will be separately described below.
