THRUNITE Archer Mini Bedienungsanleitung

Guiding You Through The Night
Archer Mini
Archer Mini
说明书
（CHS）简体中文
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
广东省深圳市宝安区西乡宝源路168号
名优采购中心A栋640室
Guiding You Through The Night
Archer Mini
Archer Mini
User Manual
（EN）English
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
Room 640, Tower A,
NO.168 Baoyuan Road, Xixiang,
Baoan, Shenzhen 518102, China
Archer Mini可充电LED手电采用最新的SST20灯珠，最大流明可达405流明，最大射程可达87米。
规格参数
LED灯珠 光杯
SST20*1 TIR光学透镜 2.75V-4.2V
配件
抱夹*1，THRUNITE 320mAh 10400电池*1(内置), USB-C充电线*1
档位亮度
续航时间
最大射程
最大光强
防跌落等级
防水等级
注：上述参数只是一个近似值，以THRUNITE 320mAh 10400电池在实验环境中测试所得，可能会随着手电，电池和使用环境而发生变化。
操作说明
锁机与解锁
在锁机状态下，长按尾部开关手电解锁，并进入低亮模式。
在低亮模式下，长按尾部开关进入锁机状态。按压尾部开关手电闪烁，提示锁机。
手电开关：解锁后，单击尾部开关即可点亮或关闭手电，手电处于低亮模式。
模式切换
手电解锁后，单击进入低亮模式，快速双击进入高亮模式，
快速按压尾部开关三次进入爆闪模式。
充电功能
拧松灯头套筒，插入充电线至USB端口进行充电。
充电中USB充电端口指示灯亮红色，充满后亮蓝色。
电池电量较低时，手电闪烁，请及时进行充电。
USB-C
充电接口

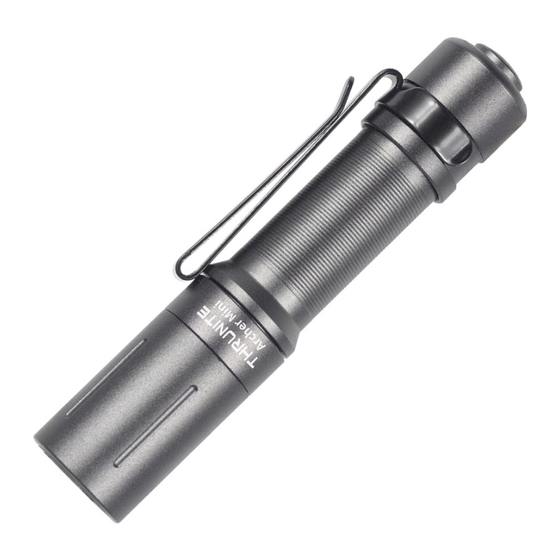

Archer Mini rechargeable LED flashlight adopts the latest SST20 LED to make output up to 405 lumens and max beam distance of 87 meters.
Specifications
LED Reflector
SST20*1
TIR LENS
Accessories Pocket clip *1, ThruNite 320mAh 10400 battery *1(Built-in), USB-C Charging Cable *1
405 lumens
Output
Run time
Distance
Intensity
Impact Resistance
Waterproof
Notes: The above parameters tested with one THRUNITE 320mAh 10400 battery are approximate and may vary between lights, batteries and environment.
Operation
Lock/Unlock
Under the lockout mode, press and hold the tail switch to unlock the flashlight
to enter low mode.
Under low mode, press and hold the tail switch to access the lockout mode.
Click the tail switch, the light will flash to indicate that it is locked.
Turn ON/OFF
After the light is unlocked, Single click the tail switch to turn the light on/off.
Low mode is available when the light is on.
Change Modes
After the light is unlocked, single click the tail switch to low mode. Quickly double
click to turbo from any mode. Quickly Triple click to get strobe.
Rechargeable Function
Screw off the head cover to expose the USB-C charging port. Plug the USB-C
connector into the charging port on the light. Plug the other end to a USB power supply.
During charging, the indicator is RED. After being fully charged, the indicator will be
BLUE.
The Light will blink when the battery is at low power level. Please recharge the battery.
USB-C Charging Port
机械参数
工作电压 材质
AL 6061-T6
ANSI/NEMA FL1参数
高亮档
405流明
157流明
2.8分钟+52分钟
充电指示灯
Technical Parameters
Working Voltage Material
2.75V-4.2V AL 6061-T6
ANSI/NEMA FL1 Parameters
High
157 lumens
2.8mins+52 mins
LED Indicator
表面处理 尺寸
三级硬氧 83mm*16.7mm
照明模式
低亮档
18流明
7.5小时
87米
1880坎德拉
1.5米
IPX-8，水下2米
保修条款
1. 2年免费包换：THRUNITE产品自出售之日起2年内，用户在正常使用情况下，
出现产品质量问题，则享受2年免费包换。
2. 30天无条件退款：
终身有限保修：在超过2年免费包换时间外，THRUNITE公司将提供有偿保修，
费用以实际更换材料费用为准，不另收取人工费用。
警示
1. THRUNITE手电亮度高，请勿直视发光体，以免造成视力损伤。
2. 请远离儿童防止其误食。
3. 为了保护电池，电路板以及LED灯珠，我们建议操作极亮模式不要超过10分钟。
Surface Finish Dimension
Premium type III
83mm*16.7mm
hard-anodized
General Mode
Low
18 lumens
7.5 hours
87 meters (max.)
1880 cd (max.)
1.5 meter
IPX-8 (2M)
Warranty
1. 2-years free replacement: We will offer free replacement within 2 years of
purchase if problems occur with normal use.
2. 30-days refund by Amazon: You may return most new, unopened items sold
and fulfilled by Amazon within 30 days of delivery for a full refund.
3. Lifetime limited maintenance: As to those exceed 2 years of the purchase
date, we will still provide with maintenance service, but the cost of parts will be
charged and freight should be paid by customers.
Warnings
1. THRUNITE flashlights are high-intensity lighting devices capable of causing eye
damage or other harms, so please avoid shining our light directly into anyone's eyes.
2. Please keep flashlights away from children.
3. To protect the battery, driver circuit and LED, we Do NOT recommend you run the
light at max mode more than ten minutes.
重量
裸机34g
爆闪模式
355流明
110分钟
Weight
34g
Strobe
355 lumens
110 mins
