THRUNITE T1S Bedienungsanleitung

Guiding You Through The Night
T1S
T1S
说明书
（CHS）简体中文
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
广东省深圳市宝安区西乡宝源路168号
名优采购中心A栋640室
Guiding You Through The Night
T1S
T1S
User Manual
（EN）English
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
Room 640, Tower A,
NO.168 Baoyuan Road, Xixiang,
Baoan, Shenzhen 518102, China
T1S尾部磁吸式可充电LED手电采用最新的SST-40灯珠，最大流明可达1212流明，最大射程可达184米。
规格参数
LED灯珠 光杯
Luminus SST-40*1 PMMA TIR
配件
抱夹*1，防水圈*2, 手绳*1, THRUNITE 1100mAh 18350电池*1, USB-C充电线*1，USB胶塞*1
极亮档
1212 流明
档位亮度
续航时间
5 分钟 + 70 分钟
最大射程
最大光强
防跌落等级
防水等级
注：上述参数只是一个近似值，以THRUNITE 1100mAh 18350电池在实验环境中测试所得，可能会随着手电，电池和使用环境而发生变化。
电量指示灯
电量等级
LED状态
相对电压点
操作说明
注意：请在使用前拧紧灯头和灯尾再进行后续操作。
锁机与解锁
在锁机状态下，长按开关（2秒）手电解锁, 进入月光模式。
在月光模式下，长按开关（2秒）手电锁机。
手电开关
解锁后，单击侧开关即可点亮或关闭手电。
模式切换
单击打开手电，长按侧开关即可循环三个不同的模式（低亮-中亮-高亮)。
快捷方式到月光档：手电关闭状态时，长按（2秒）侧开关即可进入月光档。
任何模式快速按压2次进入极亮档，快速按压3次进入爆闪模式。
记忆模式
记忆关机后的任意一个模式，月光、极亮和爆闪除外。

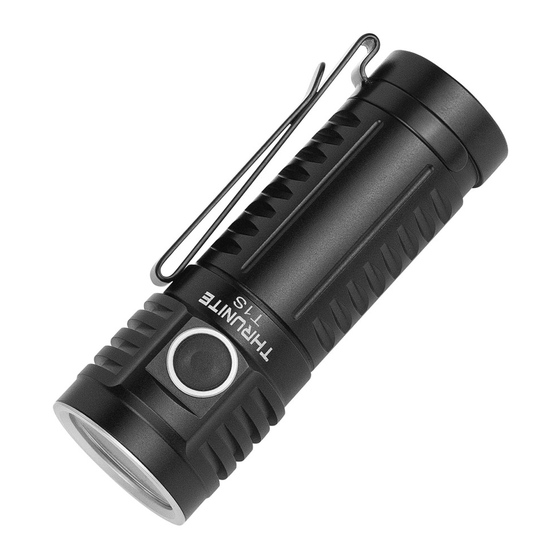

T1S tailcap-magnetic rechargeable LED flashlight adopts the latest SST-40 LED to make output up to 1,212 lumens and max beam distance of 184 meters.
Specifications
LED Reflector
Luminus SST-40 *1 PMMA TIR
Accessories
Pocket clip *1, Spare O-rings *2, Lanyard *1, THRUNITE 1100mAh 18350 battery *1, USB-C Charging Cable *1, Spare USB Rubber Cover *1
1212
lumens
Output
Run time 5 mins + 70 mins
Distance
Intensity
Impact Resistance
Waterproof
Notes: The above parameters tested with one THRUNITE 1,100mAh 18350 battery are approximate and may vary between lights, batteries and environment.
Indicator
Power Capacity
Indicator
Voltage
Operation
CAUTION :Please screw down the light head and tail cap tightly before use.
Lock/Unlock
Under the lockout mode, press and hold the side switch for 2 seconds to
unlock the flashlight.
When the flashlight is off, press and hold the side switch for 2 second to enter
firefly mode. Under firefly mode, press and hold the side switch for 2 seconds
to access the lockout mode.
Turn ON/OFF
Single click the side switch to turn the light on/off.
Change Modes
When the light is on, press and hold the side switch to circle through low, medium and
high.
Shortcut to firefly: When the light is off, press and hold the side switch for 2 second to
get firefly mode.
Double click quickly to turn to turbo from any mode. Triple click quickly to get strobe.
Memory Function
The light will turn on in the last mode used, except firefly, turbo and strobe.
机械参数
工作电压 材质
2.7V-4.2V AL 6061-T6
ANSI/NEMA FL1参数
照明模式
高亮档
407 流明
317 流明
80 分钟
0% 1 - 10%
无指示 红闪
0-2.6V 2.6-2.9V
Technical Parameters
Working Voltage Material
2.7V-4.2V AL 6061-T6
ANSI/NEMA FL1 Parameters
General Mode
Turbo High
407 lumens
317 lumens
80 mins
0% 1 - 10%
Off Flashing red
0-2.6V 2.6-2.9V
表面处理 尺寸
三级硬质氧化 69.5mm*26.5mm*22mm
中亮档 低亮档
94 流明 7 流明
5.5 小时 44 小时
184米
8460坎德拉
1.5米
IPX-8 水下2米
11 - 20%
红灯常亮
2.9-3.2V
充放电功能
充电中开关处指示灯亮红色，充满后亮蓝色，紫灯闪烁代表充电异常。
请拧紧灯头。充电时仅可以使用月光和低亮档位。
保修条款
1. 2年免费包换：THRUNITE产品自出售之日起2年内，用户在正常使用情况下，
出现产品质量问题，则享受2年免费包换。
2. 30天无条件退款，邮费自理。
3.终身有限保修：在超过2年免费包换时间外，THRUNITE公司将提供有偿保修，
费用以实际更换材料费用为准，不另收取人工费用。
警示
1. THRUNITE手电亮度高，请勿直视发光体，以免造成视力损伤。
2. 请远离儿童防止其误食。
3. 为了保护电池，电路板以及LED灯珠，我们建议操作极亮模式不要超过10分
钟。
Surface Finish Dimension
Premium type III
69.5mm*26.5mm*22mm
hard-anodized
Medium Low
94 lumens 7 lumens
5.5 hours 44 hours
184 meters (max.)
8460 cd (max.)
1.5 meter
IPX-8 (2M)
11 - 20%
Red
2.9-3.2V
Rechargeable Function
During charging, the indicator is RED. After being fully charged, the indicator
will be BLUE. When indicator flashes purple, it means abnormal charging.
Please tighten the light head. Only firefly and low modes are available while
charging.
Warranty
1. 2-years free replacement: We will offer free replacement within 2 years of
purchase if problems develop with normal use.
2. 30-days refund by Amazon: You may return most new, unopened items sold
and fulfilled by Amazon within 30 days of delivery for a full refund.
3. Lifetime limited maintenance: As to those exceed 2 years of the purchase
date, we will still provide with maintenance service, but the cost of parts will be
charged and freight should be paid by customers.
Warnings
1. THRUNITE flashlights are high-intensity lighting devices capable of causing
eye damage or other harms, so please avoid shining our light directly into
anyone's eyes.
2. Please keep flashlights away from children.
3. To protect the battery, driver circuit and LED, we Do NOT recommend you run
the light at max mode more than ten minutes.
重量
裸机41.5g
月光档 爆闪模式
0.5 流明 1080 流明
27 天 157 分钟
21 - 100%
蓝灯常亮
3.2-4.2V
Weight
41.5g
(battery excluded)
Firefly Strobe
0.5 lumens 1080 lumens
27 days 157 mins
21 - 100%
Blue
3.2-4.2V
