THRUNITE TC15 V2 Bedienungsanleitung

Guiding You Through The Night
THRUNITE
V2
TC15 V2
说明书
（CHS）简体中文
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
广东省深圳市宝安区西乡宝源路168号
名优采购中心A栋640室
Guiding You Through The Night
THRUNITE
V2
TC15 V2
User Manual
（EN）English
+86-0755-26809357
service@thrunite.com
http://www.thrunite.com
Room 640, Tower A,
NO.168 Baoyuan Road, Xixiang,
Baoan, Shenzhen 518102, China
TC15 V2充电式LED手电采用最新的CREE XHP35.2灯珠，最大流明可达2531流明，最大射程可达243米。
规格参数
LED灯珠 光镜 光杯
CREE
镀膜增透钢化玻璃 橘皮
XHP35.2x1
配件
手电套x1, 防水圈x2, 手绳x1, THRUNITE 3100mAh IMR 18650电池x1, USB充电线x1，USB胶塞x1，侧按胶帽x1
2531流明
档位亮度
续航时间
2.5分钟+85分钟
最大射程
最大光强
防跌落等级
防水等级
注：上述参数只是一个近似值，以THRUNITE 3100mAh IMR 18650电池在实验环境中测试所得，可能会随着手电，电池和使用环境而发生变化。
电量指示灯
电量等级
指示灯状态
电压
注：月光模式下指示灯不亮。
操作说明
手电开关：轻触侧开关即可点亮手电。
模式切换
手电打开后，长按侧开关即可循环三个不同的模式（低亮-中亮-高亮）。
快捷方式到月光档：手电关闭状态时，长按侧开关即可进入月光档。
任何模式双击都可进入极亮档，再双击进入爆闪模式。
记忆模式
记忆关机后的任意一个模式，月光、极亮和爆闪除外。
充放电功能
充电中指示灯亮红色，充满后亮蓝色，紫灯闪烁代表充电异常。
使用前，请拧紧灯头和尾盖。
充电时仅可以使用月光和低亮档位。

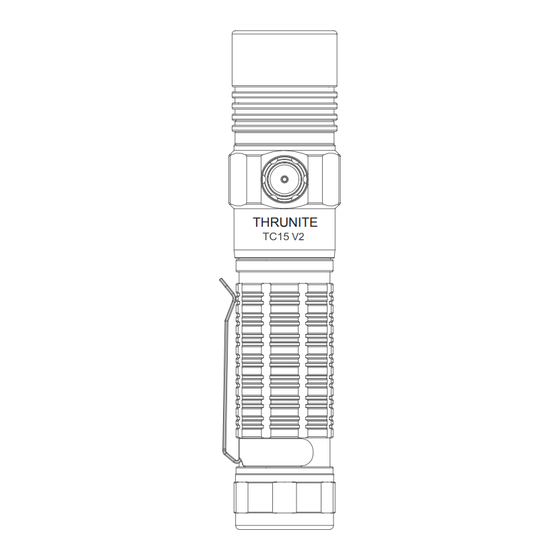

TC15 V2 rechargeable LED flashlight adopts the latest CREE XHP35.2 LED to make output up to 2531 lumens and max beam distance of 243 meters.
Specifications
LED Lens
CREE Anti-reflective coated ultra-clear
XHP35.2x1 toughened glass lens
Pocket clip x1, Holster x1, Spare O-rings x2, Lanyard x1, THRUNITE 3100mAh IMR18650 battery x1, USB Charging Cable x1,
Accessories
Spare USB Rubber Cover x1，Spare Side Switch Cap x1
2531 lumens
Output
Run time 2.5 mins+85 mins
Distance
Intensity
Impact Resistance
Waterproof
Notes: The above parameters tested with one THRUNITE 3100mAh 18650 IMR battery are approximate and may vary between lights, batteries and environment.
Indicator
Power Capacity
Indicator
Voltage
Note: The indicator will be OFF in firefly mode.
Operation
Turn ON/OFF
Press the side switch to turn the light on/off.
Change Modes
When the light is on, press and hold the side switch to cycle through low,
medium and high.
Shortcut to firefly: When the light is off, press and hold the side
switch to get firefly mode. Double click to turn to turbo from any mode.
Another double click to get strobe.
Memory Function
The light will turn on in the last mode used, except firefly, turbo and strobe.
Rechargeable Function
During charging, the indicator is RED. After being fully charged, the indicator will be
BLUE. When indicator flashes purple, it means abnormal charging.
Please screw down the light head and tail cap tightly before use.
Only firefly and low modes are available while charging.
机械参数
工作电压 材质
2.75V-4.2V AL T6061-T6
ANSI/NEMA FL1参数
极亮档 高亮档
1053流明
800流明
86分钟
0% 1-10%
无指示 红闪
0-2.8V 2.8-3V
保修条款
1. 2年免费包换：THRUNITE产品自出售之日起2年内，用户在正常使用情况下，
出现产品质量问题，则享受2年免费包换。
2. 30天无条件退款：
终身有限保修：在超过2年免费包换时间外，THRUNITE公司将提供有偿保修，
费用以实际更换材料费用为准，不另收取人工费用。
警示
1. THRUNITE手电亮度高，请勿直视发光体，以免造成视力损伤。
2. 请远离儿童防止其误食。
3. 为了保护电池，电路板以及LED灯珠，我们建议操作极亮模式不要超过10分钟。
Technical Parameters
Reflector Working Voltage Material
Orange Peel 2.75V-4.2V AL T6061-T6
ANSI/NEMA FL1 Parameters
Turbo High
1053 lumens
800 lumens
86 mins
0% 1-10%
Off Flashing red
0-2.8V 2.8-3V
Warranty
1. 2-years free replacement: We will offer free replacement within 2 years of
purchase if problems occur with normal use.
2. 30-days refund by Amazon: You may return most new, unopened items sold
and fulfilled by Amazon within 30 days of delivery for a full refund.
3. Lifetime limited maintenance: As to those exceed 2 years of the purchase
date, we will still provide with maintenance service, but the cost of parts will be
charged and freight should be paid by customers.
Warnings
1. THRUNITE flashlights are high-intensity lighting devices capable of causing eye
damage or other harms, so please avoid shining our light directly into anyone's eyes.
2. Please keep flashlights away from children.
3. To protect the battery, driver circuit and LED, we Do NOT recommend you run the
light at max mode more than ten minutes.
表面处理 尺寸
三级硬氧 122.5mm*27mm*24mm
照明模式
中亮档 低亮档
250流明 22流明
6.5小时 68小时
243米
14850坎德拉
1.5米
IPX-8，水下2米
11-20%
红灯常亮
3-3.2V
Surface Finish Dimension
Premium type III 122.5mm*27mm
hard-anodized *24mm
General Mode
Medium Low
250 lumens 22 lumens 0.5 lumens
6.5 hrs 68 hrs 41.5 days
243 meters (max.)
14850 cd (max.)
1.5 meter
IPX-8 (2M)
11-20%
Red
3-3.2V
重量
裸机71g
月光档 爆闪模式
0.5流明 830流明
41.5天 180分钟
21-100%
蓝灯常亮
3.2-4.2V
Weight
71g
(battery excluded)
Firefly Strobe
830 lumens
180 mins
21-100%
Blue
3.2-4.2V
