Seite 1

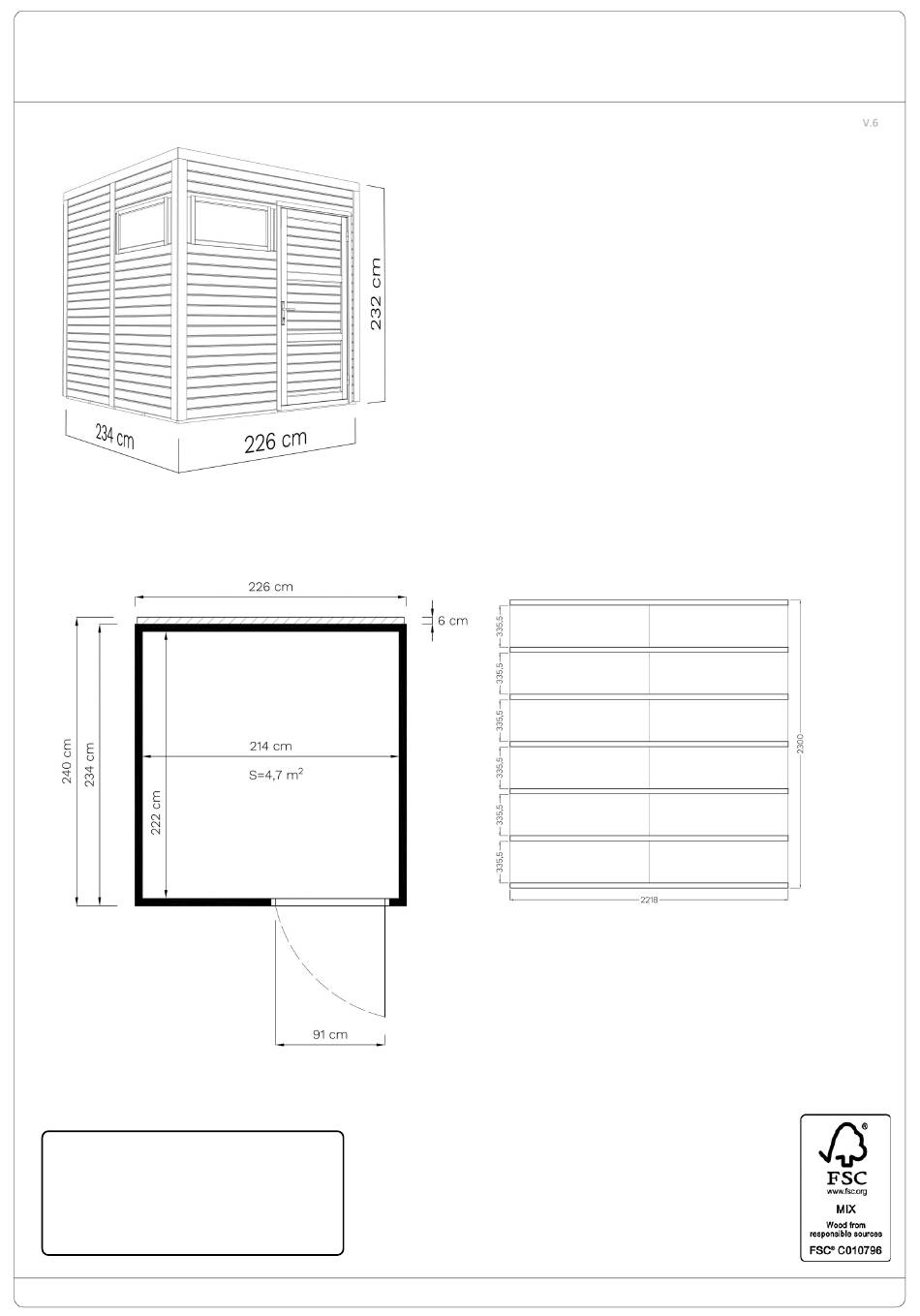

BCCU2(NF/GR/AN) DE - Technische Änderungen vorbehalten. Alle Maβe sind ca. Maβe. EN - Technical modifications reserved. All dimensions are approximate dimensions.
Seite 2
BCCU2(NF/GR/AN) Bevor Sie beginnen • Es ist empfehlenswert sich etwas Zeit zu nehmen, um die Aufbauanleitung anzusehen, bevor mit dem Aufbau begonnen wird. • Alle Schritte für den Aufbau werden – auch in Detailbildern – dargestellt. • Die vorgegebene Reihenfolge ist zu beachten. •...
Seite 3
BCCU2(NF/GR/AN) Details in mm (Tolerance/Toleranz ...-+ 2mm) Pcs. Details in mm (Tolerance/Toleranz ...-+ 2mm) Pcs. 16 x 1109 x 2300 60 x 1109 x 1953 1112 60 x 1109 x 1953 60 x 120 x 1953 38 x 792 x 2218...
Seite 4
BCCU2(NF/GR/AN) Details in mm (Tolerance/Toleranz ...-+ 2mm) Pcs. Details in mm (Tolerance/Toleranz ...-+ 2mm) Pcs. 19 x 45 x 989 40 x 60 x 989 40 x 60 x 1878 40 x 60 x 1878 15 x 15 x 909...
Seite 5
BCCU2(NF/GR/AN) * Nicht im Lieferumfang enthalten / Not included! * Imprägniert Kantholz / * Unterlagspad / * Schraube / * Impregnated beam * Patio Pads * Screw 40*60*2300 mm 4,5*80 mm Min. 13,8 lfm/rm 6 Stck/Pcs 42 Stck/Pcs € €...
Seite 6
BCCU2(NF/GR/AN) Ø 4 mm Ø 8 mm Holzschutzmittel / Wood preservative 1112 50 mm x 70 St 1113...
Seite 7
BCCU2(NF/GR/AN) 4 mm 75 mm x 32 St NB! 989 mm 4 mm 75 mm x 17 St...
Seite 8
BCCU2(NF/GR/AN) 4 mm 50 mm x 17 St 4 mm 75 mm x 4 St 4 mm 75 mm x 8 St 35 mm x 3 St 4 mm 75 mm x 4 St 1531 50 mm x 4 St...
Seite 9
BCCU2(NF/GR/AN) 4 mm 75 mm x 16 St 4 mm 75 mm x 10 St 4 mm 75 mm x 20 St...
Seite 10
BCCU2(NF/GR/AN) 4 mm 50 mm x 50 St 35 mm x 8 St 35 mm x 8 St 23 cm 23 cm 14 mm x 154 St...
Seite 11
BCCU2(NF/GR/AN) 4 mm 35 mm x 3 St 4 mm 35 mm x 11 St 4 mm 35 mm x 17 St...
Seite 12
BCCU2(NF/GR/AN) 4 mm 35 mm x 24 St 4 mm 35 mm x 24 St 25 mm x 12 St 4 mm 50 mm x 8 St NB! (BCCU2NF)
Seite 13
BCCU2(NF/GR/AN) NB! BCCU2GR/AN!!!! 26.1 1131/1135 26.2 1131 1135 27.1 25 mm x 12 St 1135 1131 12 12...
