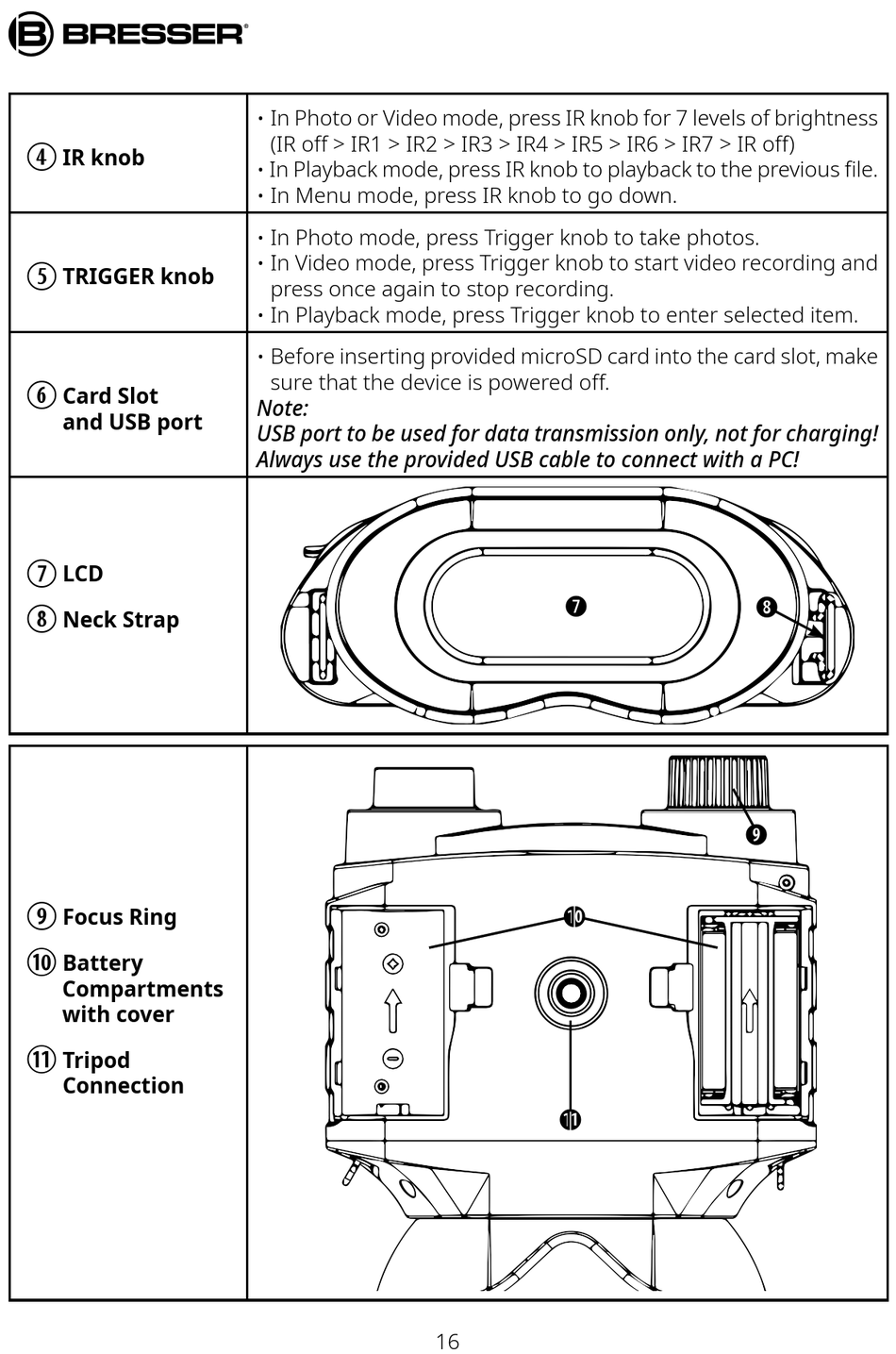

Bresser Explorer 130 Bedienungsanleitung Seite 16


IR knob

TRIGGER knob

Card Slot
and USB port

LCD

Neck Strap

Focus Ring

Battery
Compartments
with cover

Tripod
Connection
• In Photo or Video mode, press IR knob for 7 levels of brightness
(IR off > IR1 > IR2 > IR3 > IR4 > IR5 > IR6 > IR7 > IR off)
• In Playback mode, press IR knob to playback to the previous file.
• In Menu mode, press IR knob to go down.
• In Photo mode, press Trigger knob to take photos.
• In Video mode, press Trigger knob to start video recording and
press once again to stop recording.
• In Playback mode, press Trigger knob to enter selected item.
• Before inserting provided microSD card into the card slot, make
sure that the device is powered off.
Note:
USB port to be used for data transmission only, not for charging!
Always use the provided USB cable to connect with a PC!



16


