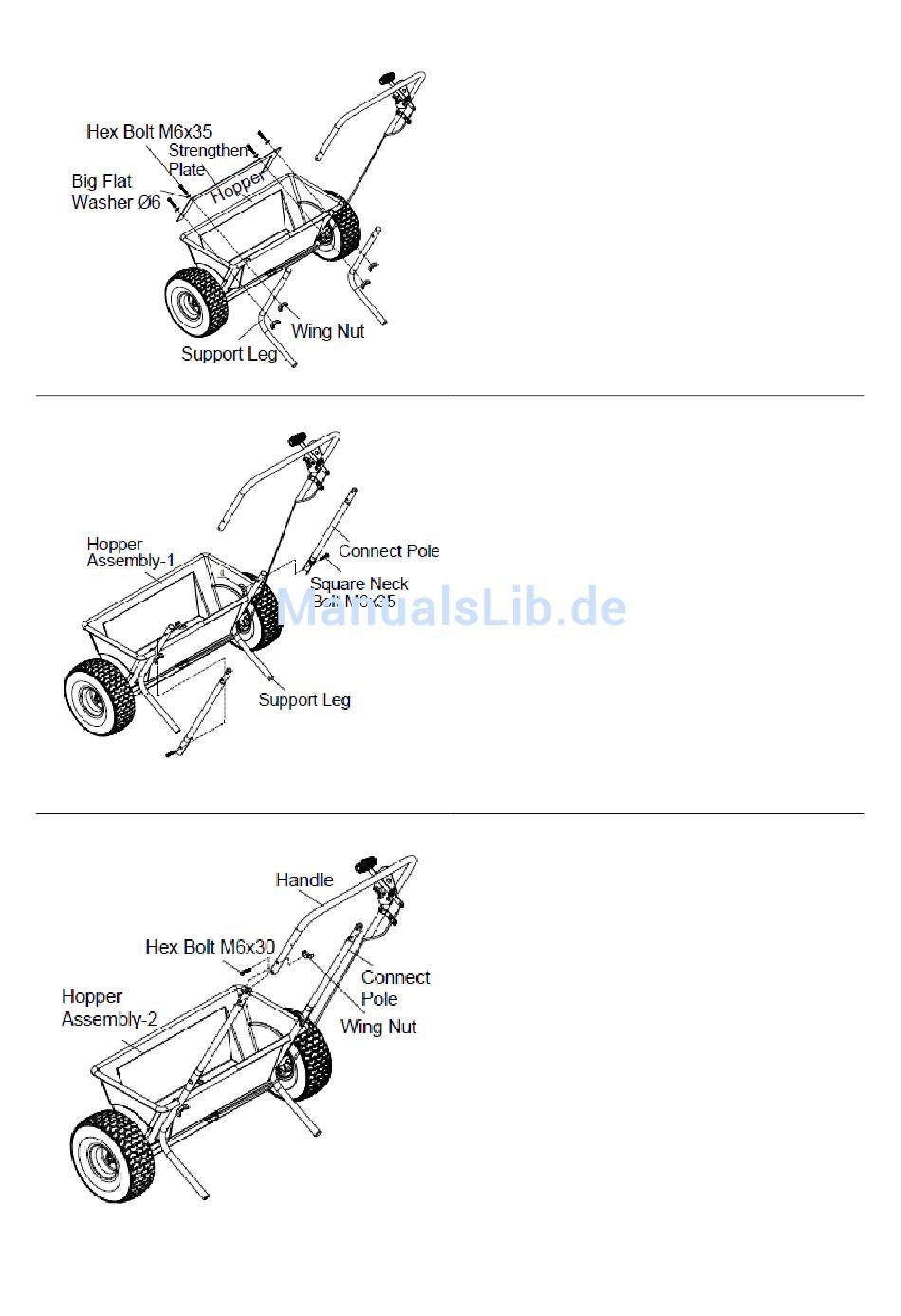

Step 1: Attach Strengthen Plate and Support
Leg to Hopper Assembly
Connect the Strengthen Plate and Support Leg
to the Hopper Use Hex Bolt M6x35,Big Flat
WasherØ6 and Wing Nut. Then tighten.
Step 2: Attach Connect Poles to Support
Legs
Attach the Connect poles to Support Legs use
Square Neck Bolt M6x35 and Wing Nut. Then
tighten.
Step 3: Attach U-Handle to Connect Poles
Attach the U-handle to the connect poles using
two Hex Bolt M6x30 and Wing Nut. Then
tighten.
Tighten all hardware before operating the drop
spreader.
