ROBOTIC POOL CLEANER TYPE CYCLONE
CLEANER UNIT DOES NOT COVER THE ENTIRE POOL.
Filters are dirty.
Clean the filters.
There is not enough length of the floating cable in
the water to reach the far end of the pool, or the
cable is tangled.
1. Verify that there is enough length of the floating
cable in the water to reach the far end of the pool.
2. Make sure that the floating cable is properly
spread out and is not tangled.
The angle of the floating handle affects the cleaner
movement.
Increase diagonal angle of the floating handle (see
"Adjusting Floating Handle").
Pool pH level is incorrect.
Make sure that the pH level is between 7.2 and 7.6.
Chlorine level is incorrect.
Check water chlorine treatment and correct if
required (Remove the cleaner from the pool
during the treatment.)
Propeller is broken or seized due to accumulation
of hair.
1. Remove the top screws on the top outlet.
2. Check if the propeller is broken or needs cleaning.
Obstacle in the drive system of the cleaner unit.
1. Turn the cleaner unit carefully to view the underside.
2. Rotate the tracks and scrubbing brushes by hand.
It should rotate but it should not rotate freely.
3. Clean and remove obstacles and debris if necessary.
THE CLEANER DOES NOT CLIMB WALLS.
The cleaner is not climbing the pool walls.
1. Verify that your robotic cleaner is not a floor-only model.
2. Verify that P1, floor cleaning only, is not selected on
the power and control unit (see "Robotic Cleaner
Programming").
Filters are dirty.
Clean the filters.
Propeller is broken or seized due to accumulation
of hair.
Check if the propeller is broken or needs cleaning
(see "Checking Water Outlet Propeller").
pH level is incorrect.
Make sure that pH is between 7.2 and 7.6.
Chlorine level is incorrect.
Check water chlorine treatment (remove the cleaner
from the pool during treatment).
Water temperature is not optimal.
Recommended temperature is between 22°C–32°C
(72°F–90°F).
16 WWW.NORSUP.EU
THE CABLE IS TANGLED.
Filters are dirty.
Clean the filters.
Bottom lid is not properly closed.
Make sure that the bottom lid is properly closed.
Cable is not spread out before putting the cleaner
unit into the pool.
Make sure that the floating cable is properly spread
out and not tangled before operating the robotic
cleaner.
The length of the cable in the water is too long.
Verify that the length of cable in the water equal to
the pool diagonal length plus two meters.
Propeller is broken or seized due to accumulation
of hair.
Check if the propeller is broken or needs cleaning
(see "Checking Water Outlet Propeller").
REMOTE CONTROL DOES NOT WORK.
The battery is empty. The LED is blinking or OFF.
Check the battery by pressing one of the buttons.
The red light on the remote control unit does not
blink or stay lit continuously if the battery is empty.
Contact your dealer or service center.
Alterations which serve the technological progress as well as errors excepted!
ROBOTIC POOL CLEANER TYPE CYCLONE

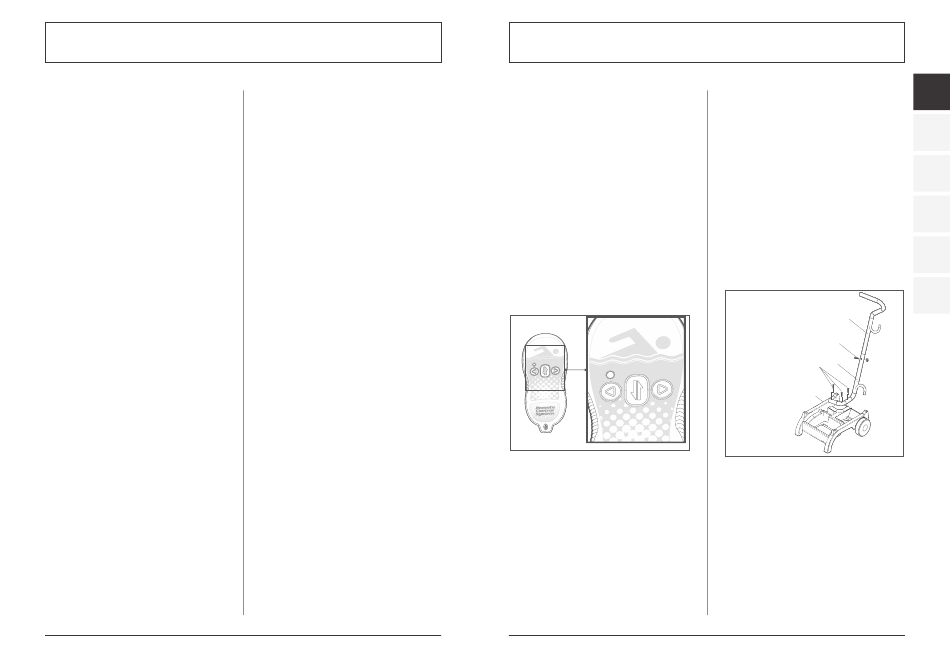

10. REMOTE CONTROL

This chapter reviews the operation of the optional
remote control unit. The remote control is included
in some models.

10.1. REMOTE CONTROL OVERVIEW

The remote control is an optional feature that enables
controlling the robotic cleaner via remote command
buttons. When pressing the remote control buttons,
Remote Control (optional)
radio signal is transmitted to the power and control
Remote Control (optional)
unit. This signal is transferred into a command sent to
This chapter reviews the operation of the optional remote control unit. The remote
the robotic cleaner via the floating cable.
control is included in some models.
This chapter reviews the operation of the optional remote control unit. The remote
control is included in some models.

10.2. USING THE REMOTE CONTROL

Remote Control Overview
The remote control is an optional feature that enables controlling the robotic
1. Press the right button (3) to turn the robotic cleaner Remote Control Overview
cleaner via remote command buttons. When pressing the remote control buttons,
The remote control is an optional feature that enables controlling the robotic
right. The robotic cleaner continues turning to the
radio signal is transmitted to the power and control unit. This signal is transferred cleaner via remote command buttons. When pressing the remote control buttons,
right until the button is released.
into a command sent to the robotic cleaner via the floating cable. radio signal is transmitted to the power and control unit. This signal is transferred
2. Press the left button (1) to turn the robotic cleaner
into a command sent to the robotic cleaner via the floating cable.
Using the Remote Control left. The robotic cleaner continues turning to the left
1. Press the right button (3) to turn the robotic cleaner right. The robotic cleaner Using the Remote Control
until the button is released.
continues turning to the right until the button is released. 1. Press the right button (3) to turn the robotic cleaner right. The robotic cleaner
3. Press the Forward/Reverse button (2) to stop the
2. Press the left button (1) to turn the robotic cleaner left. The robotic cleaner
continues turning to the right until the button is released.
robotic cleaner and change its direction of movement.
continues turning to the left until the button is released. 2. Press the left button (1) to turn the robotic cleaner left. The robotic cleaner
3. Press the Forward/Reverse button (2) to stop the robotic cleaner and change its continues turning to the left until the button is released.
direction of movement. 3. Press the Forward/Reverse button (2) to stop the robotic cleaner and change its
The remote control LED is lit after each command. If
The remote control LED is lit after each command. If the LED does not respond or direction of movement.
the LED does not respond or
flashing, replace the battery. The remote control LED is lit after each command. If the LED does not respond or
flashing, replace the battery.
flashing, replace the battery.
Alterations which serve the technological progress as well as errors excepted!

11. CADDY (OPTIONAL)

11.1. OVERVIEW

The caddy is an optional accessory that makes it easy
to move the robotic cleaner, floating cable and the
power and control unit from place to place.

11.2. ASSEMBLING THE CADDY

To assemble the caddy, you need a standard
Caddy (optional)
screwdriver and a 8 mm wrench.
Caddy (optional)
Connecting the Caddy Handle
The caddy is an optional accessory that makes it easy to move the robotic cleaner,
1. Fasten the handle bottom part (3) to the caddy
floating cable and the power and control unit from place to place.
The caddy is an optional accessory that makes it easy to move the robotic cleaner,
frame (5) with the three screws (4) and nuts.
Assembling the Caddy floating cable and the power and control unit from place to place.
2. Connect the handle top part (1) to the handle
To assemble the caddy, you need a standard screwdriver and a 8 mm wrench. Assembling the Caddy
Connecting the Caddy Handle
To assemble the caddy, you need a standard screwdriver and a 8 mm wrench. bottom part (3) using screw (2) and nut.
1. Fasten the handle bottom part (3) to the caddy frame (5) with the three screws
Connecting the Caddy Handle
(4) and nuts. 1. Fasten the handle bottom part (3) to the caddy frame (5) with the three screws
11.3. LOADING THE ROBOTIC CLEANER ON THE
2. Connect the handle top part (1) to the handle bottom part (3) using screw (2) (4) and nuts.
CADDY
and nut. 2. Connect the handle top part (1) to the handle bottom part (3) using screw (2)

Loading the Robotic Cleaner on the Caddy

1. Place the cleaner unit on the caddy base.
and nut.
1. Place the cleaner unit on the caddy base. Loading the Robotic Cleaner on the Caddy
2. Coil the floating cable and place it on the cleaner
2. Coil the floating cable and place it on the cleaner unit. 1. Place the cleaner unit on the caddy base.
unit.
3. Place the power and control unit on top of the floating cable coil. 2. Coil the floating cable and place it on the cleaner unit.
3. Place the power and control unit on top of the
3. Place the power and control unit on top of the floating cable coil.
floating cable coil.
1. Handle (Top Part)
1. Handle (Top Part)
2. Handle Screws
1
3. Handle (Bottom Part) 2. Handle Screws
1
3. Handle (Bottom Part)
4. Frame screws
5. Caddy Frame 4. Frame screws
5. Caddy Frame
2
2
3
4 3
4
5
5
14
