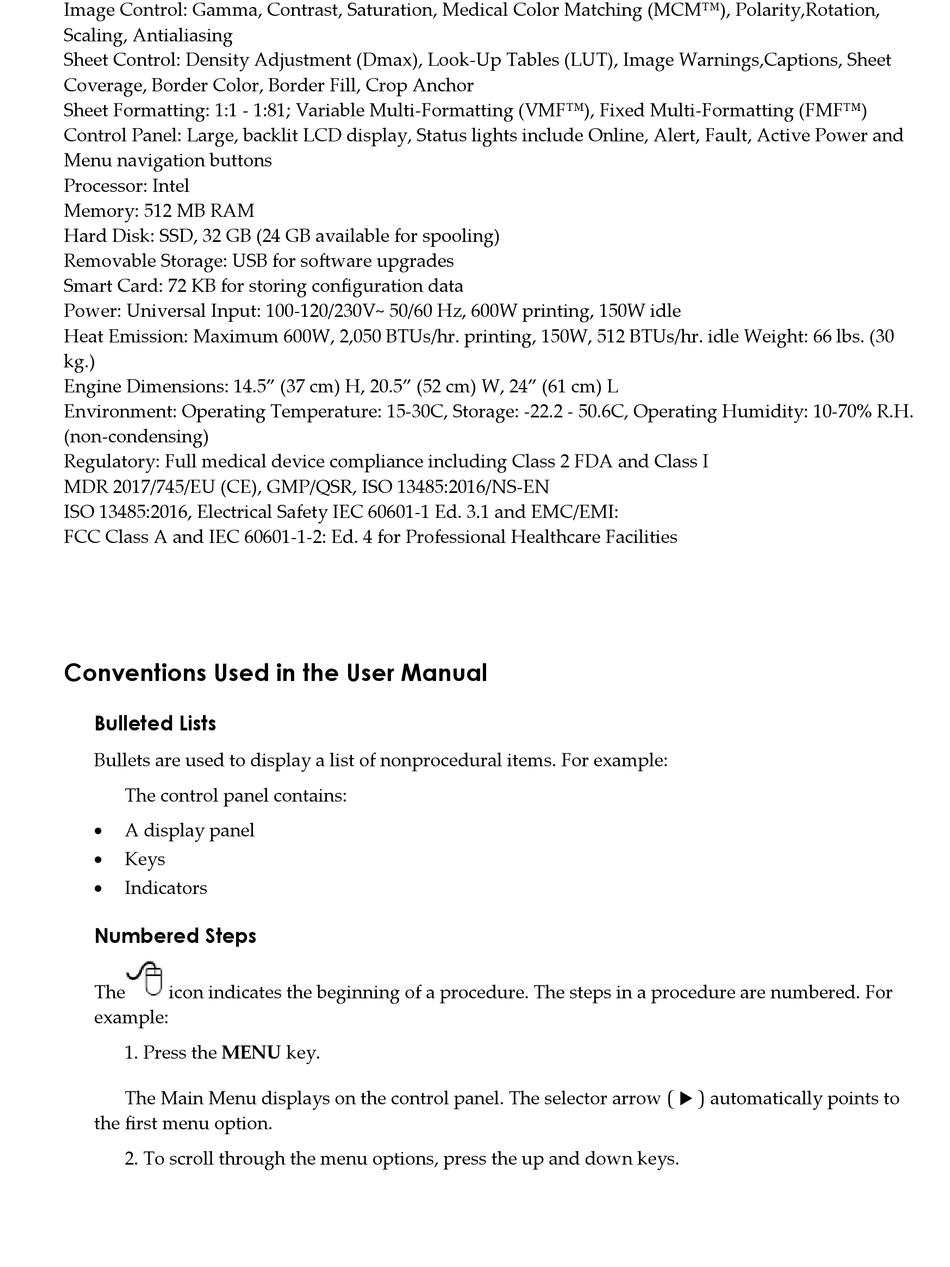

Image Control: Gamma, Contrast, Saturation, Medical Color Matching (MCM™), Polarity,Rotation,
Scaling, Antialiasing
Sheet Control: Density Adjustment (Dmax), Look-Up Tables (LUT), Image Warnings,Captions, Sheet
Coverage, Border Color, Border Fill, Crop Anchor
Sheet Formatting: 1:1 - 1:81; Variable Multi-Formatting (VMF™), Fixed Multi-Formatting (FMF™)
Control Panel: Large, backlit LCD display, Status lights include Online, Alert, Fault, Active Power and
Menu navigation buttons
Processor: Intel
Memory: 512 MB RAM
Hard Disk: SSD, 32 GB (24 GB available for spooling)
Removable Storage: USB for software upgrades
Smart Card: 72 KB for storing configuration data
Power: Universal Input: 100-120/230V~ 50/60 Hz, 600W printing, 150W idle
Heat Emission: Maximum 600W, 2,050 BTUs/hr. printing, 150W, 512 BTUs/hr. idle Weight: 66 lbs. (30
kg.)
Engine Dimensions: 14.5" (37 cm) H, 20.5" (52 cm) W, 24" (61 cm) L
Environment: Operating Temperature: 15-30C, Storage: -22.2 - 50.6C, Operating Humidity: 10-70% R.H.
(non-condensing)
Regulatory: Full medical device compliance including Class 2 FDA and Class I
MDR 2017/745/EU (CE), GMP/QSR, ISO 13485:2016/NS-EN
ISO 13485:2016, Electrical Safety IEC 60601-1 Ed. 3.1 and EMC/EMI:
FCC Class A and IEC 60601-1-2: Ed. 4 for Professional Healthcare Facilities
Conventions Used in the User Manual
Bulleted Lists
Bullets are used to display a list of nonprocedural items. For example:
The control panel contains:
•
A display panel
•
Keys
•
Indicators
Numbered Steps
The
icon indicates the beginning of a procedure. The steps in a procedure are numbered. For
example:
1. Press the MENU key.
The Main Menu displays on the control panel. The selector arrow
the first menu option.
2. To scroll through the menu options, press the up and down keys.
(
)
automatically points to
