Functional Description - ESX D68SP Benutzerhandbuch

ENGLISH

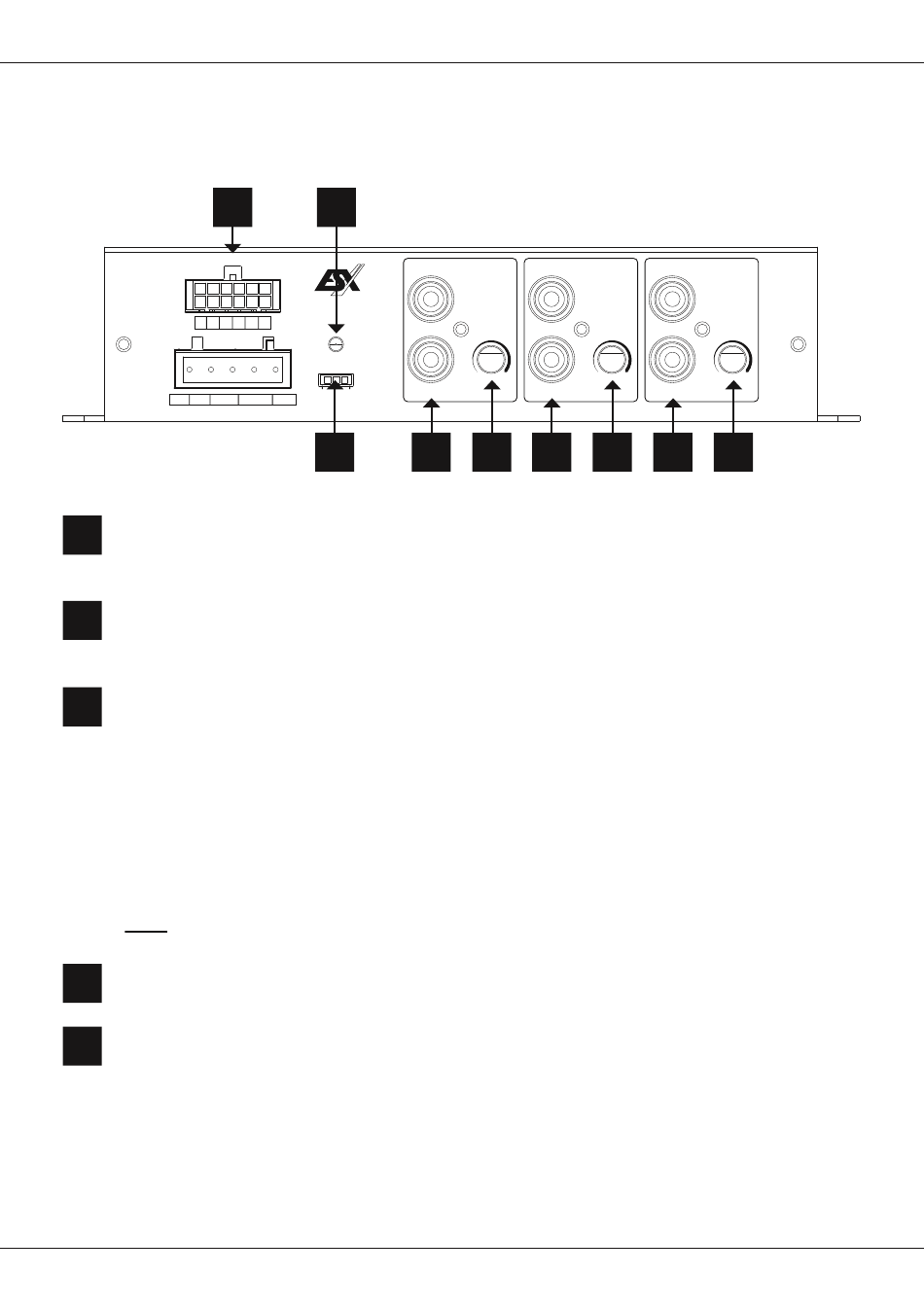

FUNCTIONAL DESCRIPTION

11
HIGH LEVEL INPUT
IN+
IN–
1 2 3 4 5 6
POWER INPUT
+12V GND REM IN REM OUT MODE
LEVEL INPUT
7
These controllers determines the input sensitivity (adaptation to the output signal of the head unit) for
OUT A
each channel pair.
8 IN (RCA INPUTS)
OUT B
Connect the RCA inputs IN with the preamp outputs of head unit accordingly by using appropriate
audio signal cables.
9 AUTO TURN-ON
If your head unit does not have a turn-on signal (REM), you can use the automatic turn-on function of
the device. This works in two ways, which can be set at the AUTO TURN-ON switch:
VOX: Select this method when using the IN RCA jacks. The device then detects a voltage increase
in the incoming audio signal when switching on the head unit via the attached RCA cable and then
switches on the device.
DC: This method only works if you use the device's HIGH LEVEL INPUT. The device then detects
a voltage rise to 6 volts when the head unit is turned on by a so-called "DC offset" and then turns on
the device.
OFF: Select position OFF, if you have connected a turn-on signal at the REM IN terminal.
Note: As soon as the head unit is switched off again, the device switches itself off.
POWER
10
If the LED lights up in green, the device is ready for operation.
HIGH LEVEL INPUT (15 ~ 45 V)
11
If your head unit does not have RCA preamp outputs, you can use the HIGH LEVEL INPUT. Connect
the loudspeaker cables of the head unit to the included wire harness accordingly.
To change the input sensitivity to 2 ~ 15 V, please see the note on page 24.
22
10
IN 1
DIRECTION
D68SP
POWER
AUTO TURN-ON
IN 2
OFF DC VOX
9 8
OUT C OUT E OUT G
OUT D OUT F OUT H
CHANNEL IN 3 CHANNEL
1/2 3/4
LEVEL LEVEL
INPUT INPUT
MIN MAX MIN MAX
IN 4
7 8 7
BT
ANT
RESET
OPTICAL IN USB
IN 5 CHANNEL
5/6
LEVEL
INPUT
MIN MAX
IN 6
8 7
REMOTE
EXTENSION
