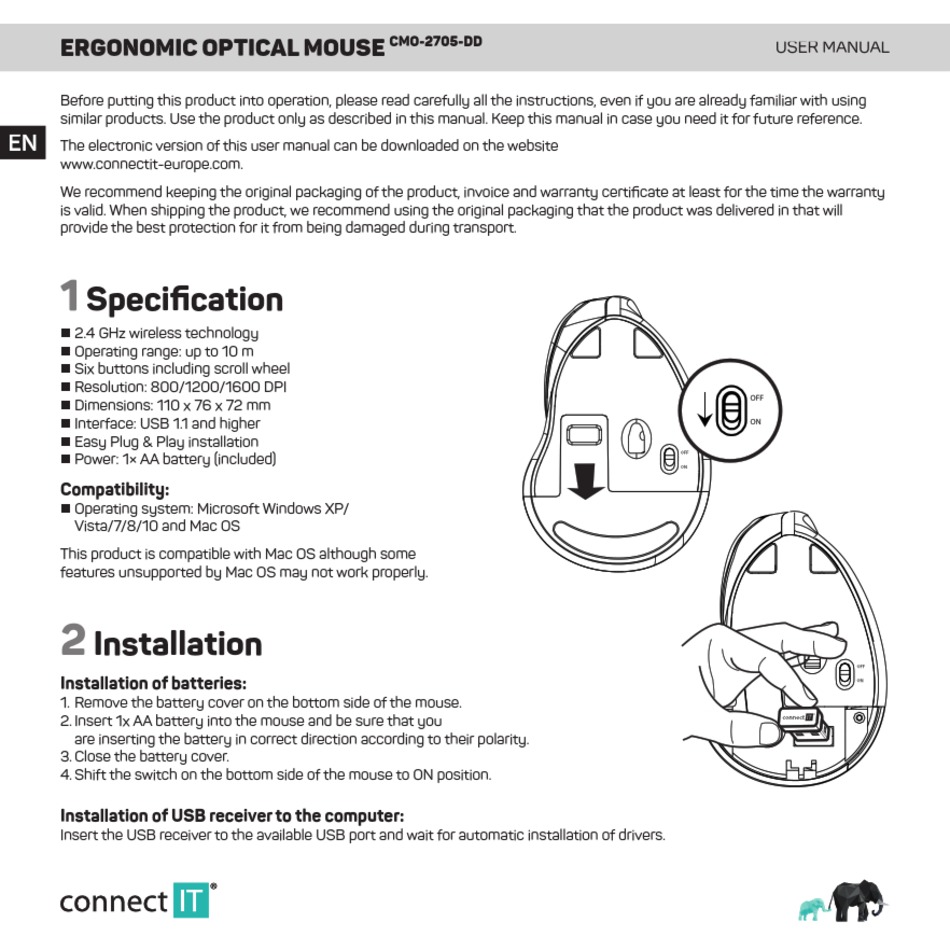

ERGONOMIC OPTICAL MOUSE
Before putting this product into operation, please read carefully all the instructions, even if you are already familiar with using
similar products. Use the product only as described in this manual. Keep this manual in case you need it for future reference.
EN EN
The electronic version of this user manual can be downloaded on the website
www.connectit-europe.com.
We recommend keeping the original packaging of the product, invoice and warranty certifi cate at least for the time the warranty
is valid. When shipping the product, we recommend using the original packaging that the product was delivered in that will
provide the best protection for it from being damaged during transport.
1
Specifi cation
 2.4 GHz wireless technology
 Operating range: up to 10 m
 Six buttons including scroll wheel
 Resolution: 800/1200/1600 DPI
 Dimensions: 110 x 76 x 72 mm
 Interface: USB 1.1 and higher
 Easy Plug & Play installation
 Power: 1× AA battery (included)
Compatibility:
 Operating system: Microsoft Windows XP/
Vista/7/8/10 and Mac OS
This product is compatible with Mac OS although some
features unsupported by Mac OS may not work properly.
2
Installation

Installation of batteries:

1. Remove the battery cover on the bottom side of the mouse.
2. Insert 1x AA battery into the mouse and be sure that you
are inserting the battery in correct direction according to their polarity.
3. Close the battery cover.
4. Shift the switch on the bottom side of the mouse to ON position.
Installation of USB receiver to the computer:
Insert the USB receiver to the available USB port and wait for automatic installation of drivers.
CMO-2705-DD
USER MANUAL USER MANUAL
