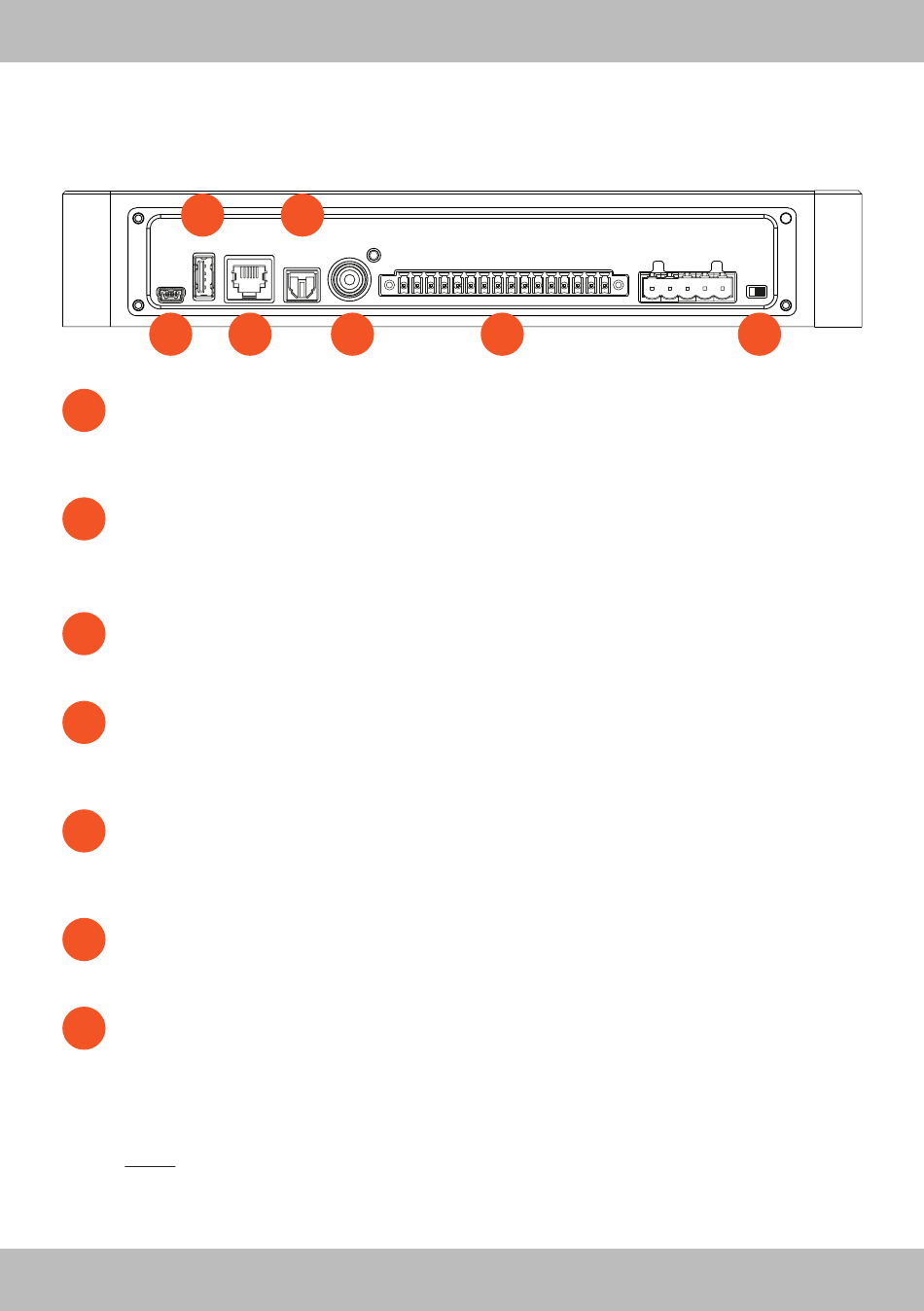

DESCRIPTION OF OPERATION
CH2
CH4
3
USB
2
USB
2
This USB input is suited for the connection with a PC/laptop computer to manage the functions of the
MUSWAY DSP software to set-up the DSP functions of the device. The connection is USB 1.1/2.0/3.0
compatible. For downloading the software please visit "www.musway.de/dsp".
BT
3
This USB input is suited for an external Bluetooth
or adjusting the DSP by an APP through a smart phone/mobile device.
Check the website "www.musway.de" for more information or ask your car audio retailer.
DRC
4
This input is suited for an external MUSWAY digital remote controller. Check the website "www.mus-
way.de" for more information or ask your car audio retailer.
OPTICAL INPUT
5
The Optical Input accepts PCM stereo signals up to 96 kHz / 24 bit sampling frequency rate. Multi-
channel signals coming from audio/video sources (such as the audio tracks of a film in DVD) can not
be reproduced. Connect a fiber optic cable with a TOSLINK connector.
COAXIAL INPUT
6
The Coaxial Input in S/PDIF format for connecting sources with a digital audio output. The sampling
rate of this input has to be in the range of 32 and 96 kHz. Note: This signal processor can only handle
stereo input signals.
HI LEVEL INPUT
7
Connect here the amplified speaker output by using the enclosed 16 pole multipolar connector. CH1-2
features the Auto Turn-On function through the connection with the speaker outputs of the head unit
TURN ON SEL
8
The device can be turned on/off by using the following methods:
SPK:
Slide the switch into position SPK, if you want to turn on/off the device through
the CH1 input channel of the high level speaker inputs and its Auto Turn-On function.
REM: Slide the switch into position REM, if you want to turn on/off the device through the REM IN
and a turn-on signal from head unit/car stereo in low level operation.
NOTE: Power on by REM is recommended. In case if there's no REM/ACC signal on the vehicle,
turn on/off the device with the source speaker outputs as an alternative solution.
