Hardware Installation

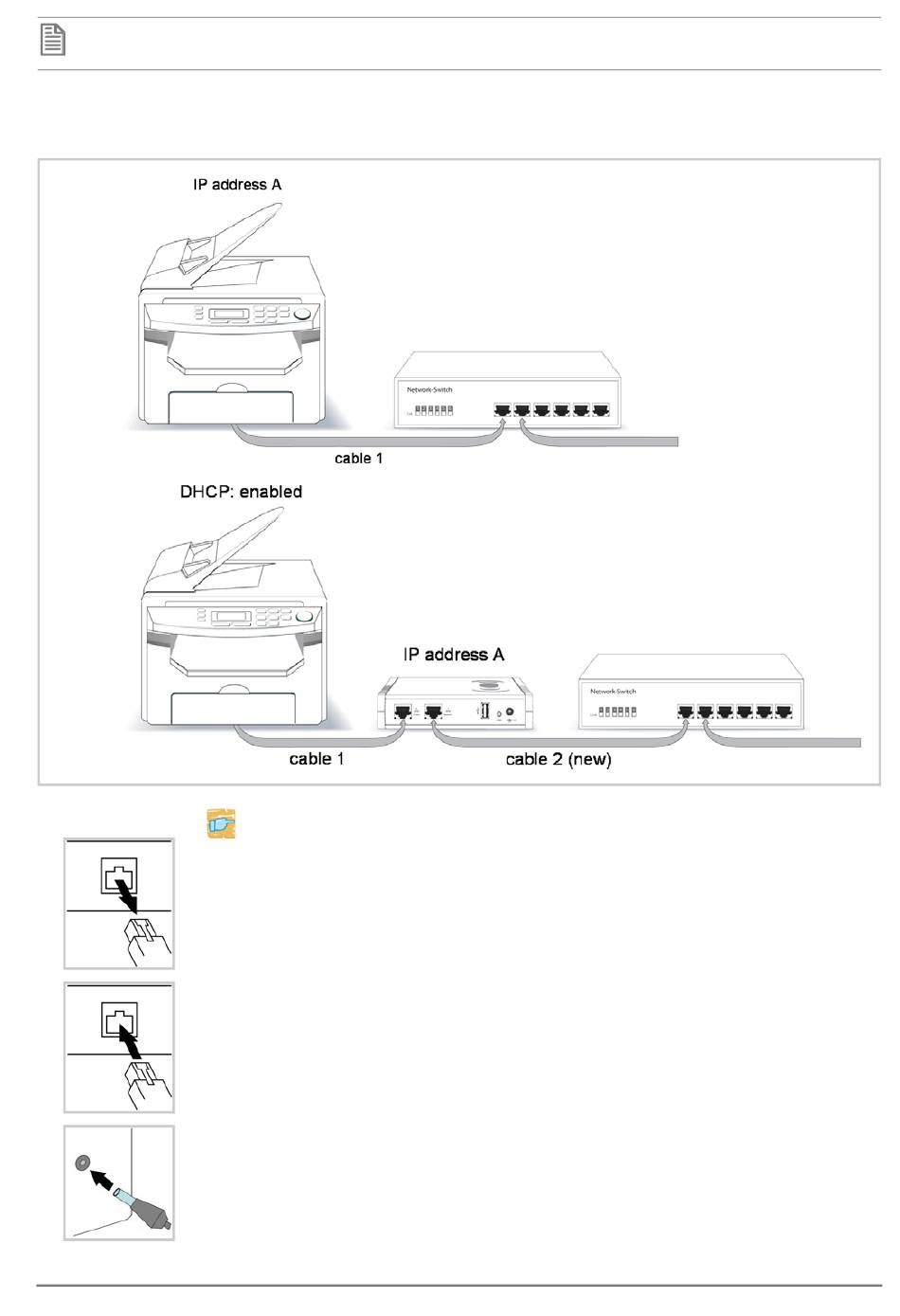

The TPR-10 is placed transparently between the printer and the network.
before
after
1. Remove the printer network cable (RJ-45) from your switch.
2. Connect the removed printer network cable (RJ-45) to the
3. Connect the switch to the network connector marked as
4. Connect the power cord to the TPR-10.
Quick Installation Guide
Proceed as follows:
network connector marked as 2 Printer on the back of the
TPR-10.
1 Network on the back of the TPR-10 using a further
network cable (RJ-45).
