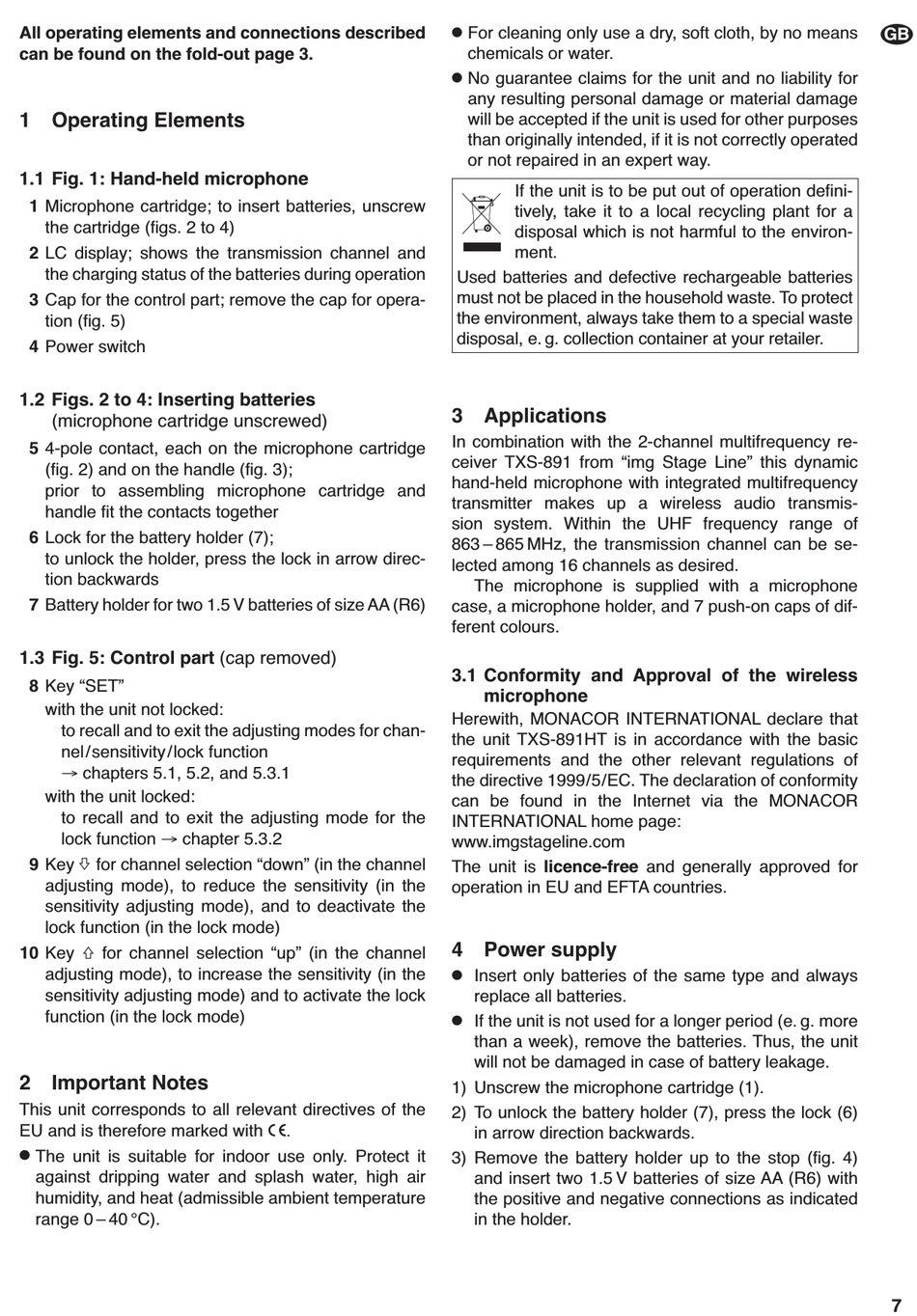

All operating elements and connections described
can be found on the fold-out page 3.

1 Operating Elements

1.1 Fig. 1: Hand-held microphone
1 Microphone cartridge; to insert batteries, unscrew
the cartridge (figs. 2 to 4)
2 LC display; shows the transmission channel and
the charging status of the batteries during operation
3 Cap for the control part; remove the cap for opera-
tion (fig. 5)
4 Power switch
1.2 Figs. 2 to 4: Inserting batteries
(microphone cartridge unscrewed)
5 4-pole contact, each on the microphone cartridge
(fig. 2) and on the handle (fig. 3);
prior to assembling microphone cartridge and
handle fit the contacts together
6 Lock for the battery holder (7);
to unlock the holder, press the lock in arrow direc-
tion backwards
7 Battery holder for two 1.5 V batteries of size AA (R6)
1.3 Fig. 5: Control part (cap removed)
8 Key "SET"
with the unit not locked:
to recall and to exit the adjusting modes for chan-
nel/sensitivity/lock function
→ chapters 5.1, 5.2, and 5.3.1
with the unit locked:
to recall and to exit the adjusting mode for the
lock function → chapter 5.3.2
9 Key for channel selection "down" (in the channel
adjusting mode), to reduce the sensitivity (in the
sensitivity adjusting mode), and to deactivate the
lock function (in the lock mode)
10 Key for channel selection "up" (in the channel
adjusting mode), to increase the sensitivity (in the
sensitivity adjusting mode) and to activate the lock
function (in the lock mode)
2 Important Notes
This unit corresponds to all relevant directives of the
EU and is therefore marked with
G
The unit is suitable for indoor use only. Protect it
against dripping water and splash water, high air
humidity, and heat (admissible ambient temperature
range 0 – 40 °C).
G
G
Used batteries and defective rechargeable batteries
must not be placed in the household waste. To protect
the environment, always take them to a special waste
disposal, e. g. collection container at your retailer.
3 Applications
In combination with the 2-channel multifrequency re -
ceiver TXS-891 from "img Stage Line" this dynamic
hand-held microphone with integrated multifrequency
transmitter makes up a wireless audio transmis-
sion system. Within the UHF frequency range of
863 – 865 MHz, the transmission channel can be se -
lected among 16 channels as desired.
case, a microphone holder, and 7 push-on caps of dif-
ferent colours.
3.1 Conformity and Approval of the wireless
Herewith, MONACOR INTERNATIONAL de clare that
the unit TXS-891HT is in accordance with the basic
requirements and the other relevant regulations of
the directive 1999 / 5 / EC. The declaration of conformity
can be found in the Internet via the MONACOR
INTERNATIONAL home page:
www.imgstageline.com
The unit is licence-free and generally approved for
operation in EU and EFTA countries.

4 Power supply

G
G
1) Unscrew the microphone cartridge (1).
2) To unlock the battery holder (7), press the lock (6)
.
3) Remove the battery holder up to the stop (fig. 4)
For cleaning only use a dry, soft cloth, by no means
chemicals or water.
No guarantee claims for the unit and no liability for
any resulting personal damage or material damage
will be accepted if the unit is used for other purposes
than originally intended, if it is not correctly operated
or not repaired in an expert way.
If the unit is to be put out of operation defini -
tively, take it to a local recycling plant for a
disposal which is not harmful to the environ-
ment.
The microphone is supplied with a microphone
microphone
Insert only batteries of the same type and always
replace all batteries.
If the unit is not used for a longer period (e. g. more
than a week), remove the batteries. Thus, the unit
will not be damaged in case of battery leakage.
in arrow direction backwards.
and insert two 1.5 V batteries of size AA (R6) with
the positive and negative connections as indicated
in the holder.
