M2_1~2: M.2 Slots (Key M)

M2_1
M2_2
⚠
Important
∙ Intel® RST only supports PCIe M.2 SSD with UEFI ROM.
∙ Intel® Optane™ Memory Ready for all M.2 slots.
Installing M.2 module

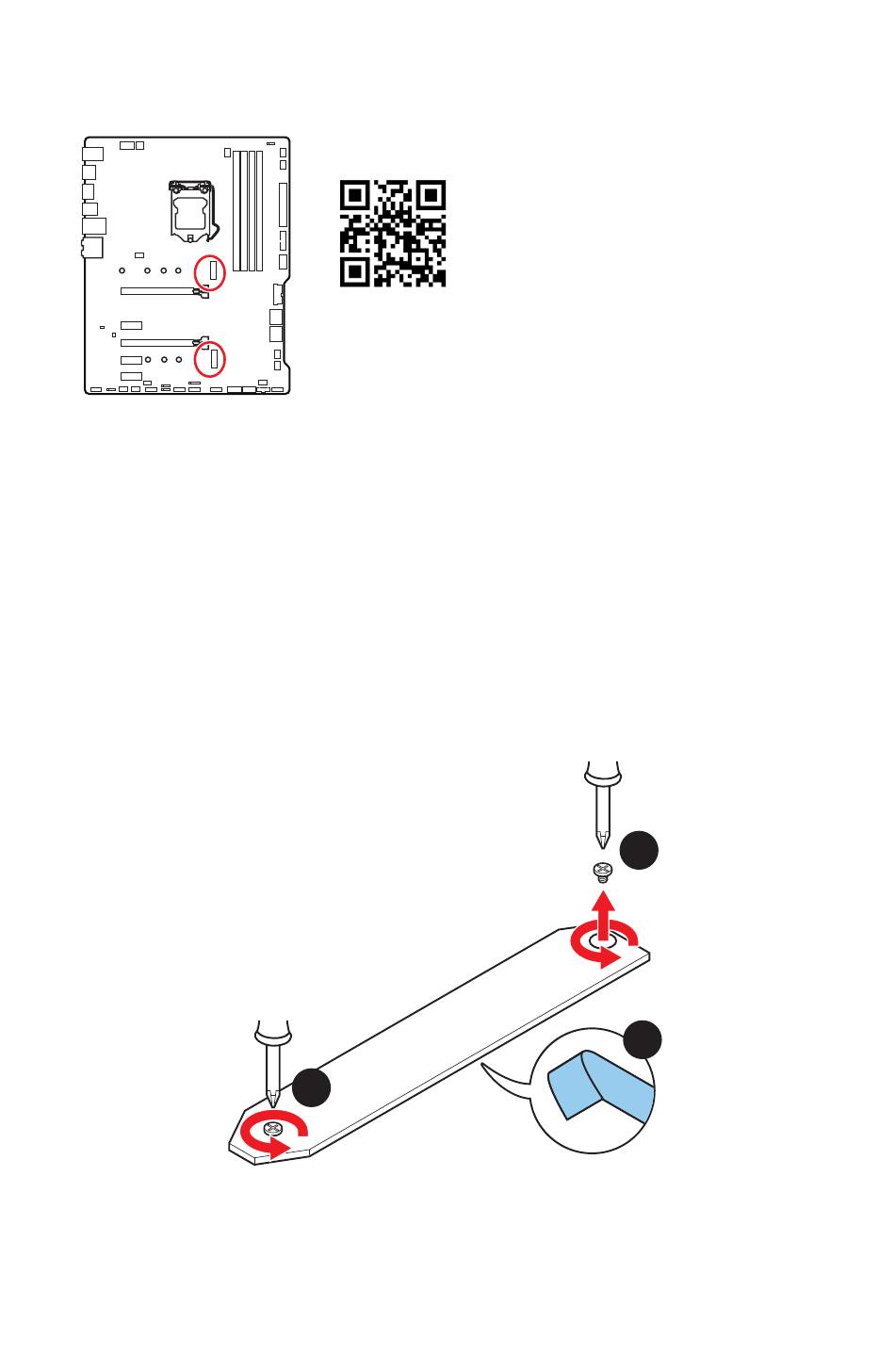

1. Loosen the screws of M.2 SHIELD FROZR heatsink. (For installing M.2 module to
M2_2 slot, please skip to step 3)
2. Remove the M.2 SHIELD FROZR and remove the protective films from the thermal
pads.
⚽
Watch the video to learn how to Install
M.2 module.
http://youtu.be/JCTFABytrYA
1
Video Demonstration
1
2
