Instruction Manual
Hydraulic press, FP16, HP16
Important: Read and understand this manual before use!
Caution
Transportation: Please note that the centre of gravity is positioned very high!
1. Transport by forklift: Lift under the top part of the frame.
Please use the lifting points marked on the packaging only.
2. Transportation by crane: Same procedure as by forklift.
3. Transportation by pallet truck: The press must be supported on top during transport to eliminate
the risk the press tilting.
Safety:
Use the press for pressing purposes only!
Always be aware of the risk that pressurising the item in the press may lead to the item being shot out
at high speed.
Installation:
Change the oil plug before use!

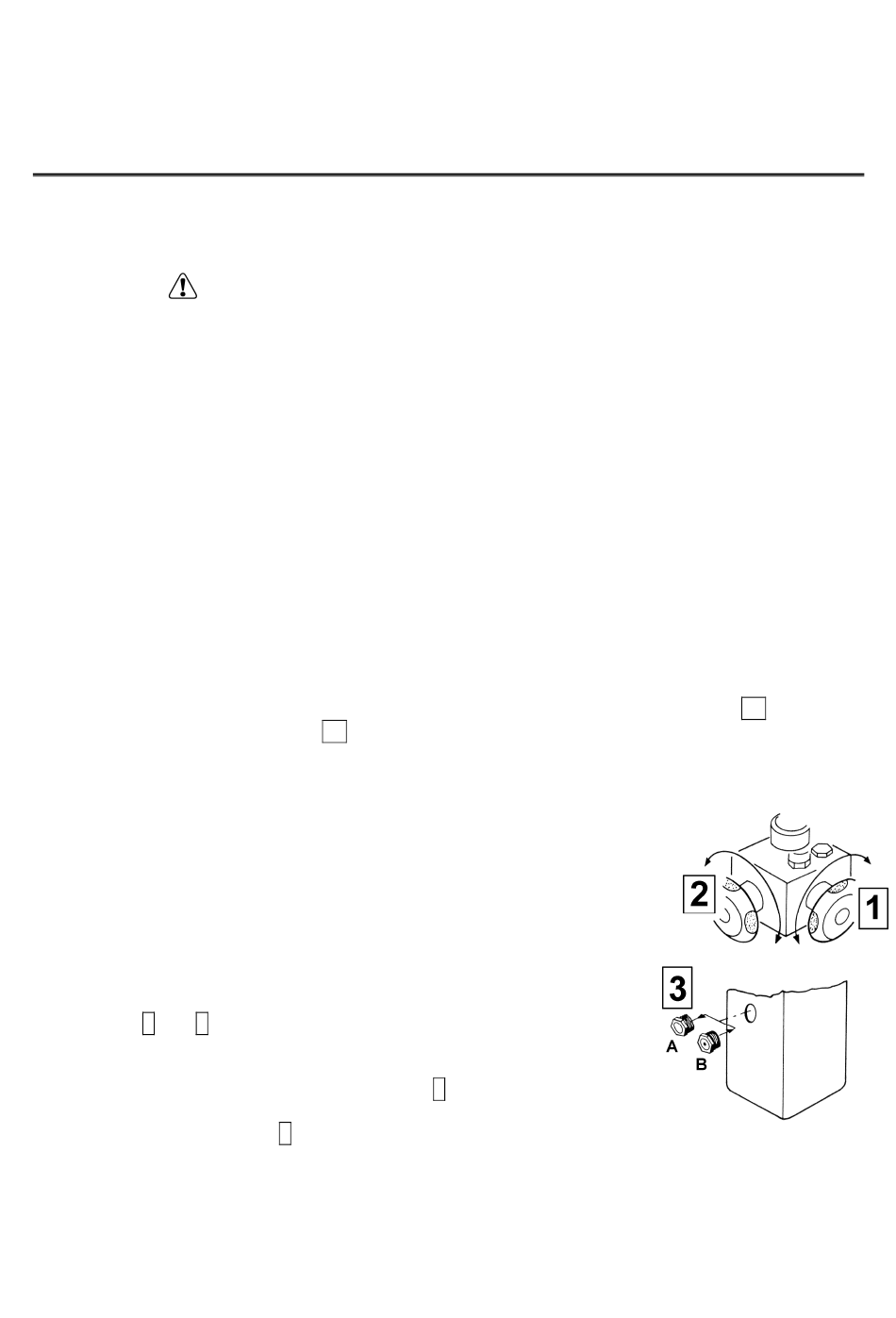

The press is supplied with an oil plug with a small hole. Undo the transportation bolt 3A and replace it
with the oil plug with a small hole 3B before use.
Operating instruction:
How to operate the pump:
1. Tighten 1 and 2 by hand.
2. Use the foot pedal / pump handle,
to pump until the piston reaches the item.
3. Once the piston touches the item then turn 1 anti-clock-wise.
Now the pump is working on high pressure to apply pressure to the item.
4. Return piston by turning 2 anti-clock-wise.
Do not attempt to use the press beyond its rated capacity. Do not continue pumping after the full
length of the stroke has been obtained. Failing to follow these instructions may damage the seals in
the cylinder.
1/2 2004.04.22
