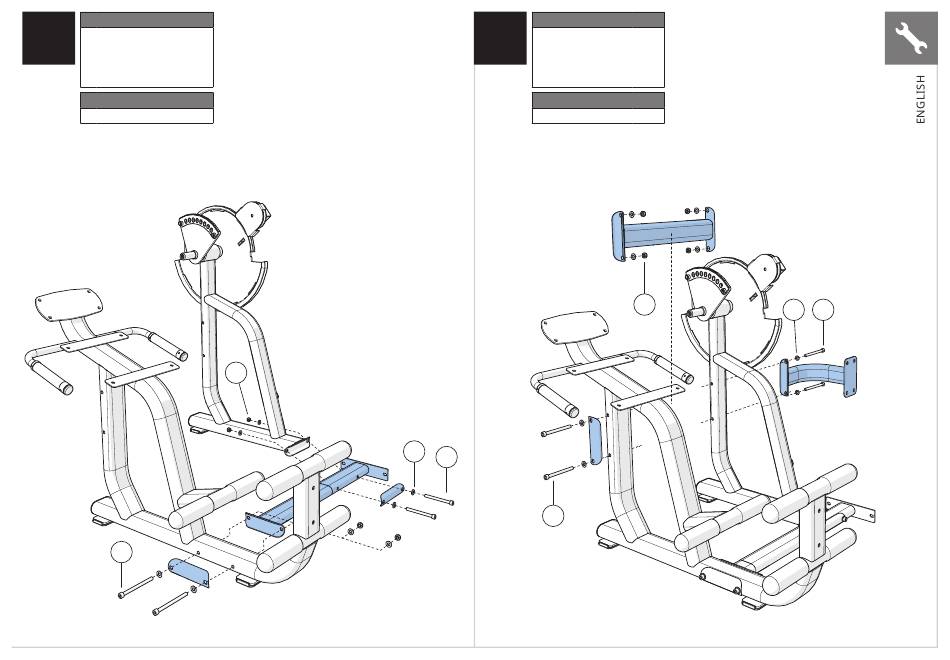

Step 1 Hardware
1
Description Qty
A Bolt (M10x105L) 2
B Arc Washer (Φ10.2) 8
C Nut (M10) 4
D Bolt (M10x125L) 2
Torque Value
77 Nm / 57 ft-lb
D
Do not fully tighten frame connectors until
assembly is complete. Vibra-Tite 135 Red Gel
or equivalent must be used on all fasteners
that are not assembled with Nylock Nuts.
C
Step 2 Hardware
2
Description
A Bolt (M10x105L)
B Arc Washer (Φ10.2)
C Nut (M10)
D Bolt (M10x125L)
Torque Value
77 Nm / 57 ft-lb
B
A
D
Qty
2
8
4
2
C
B A
