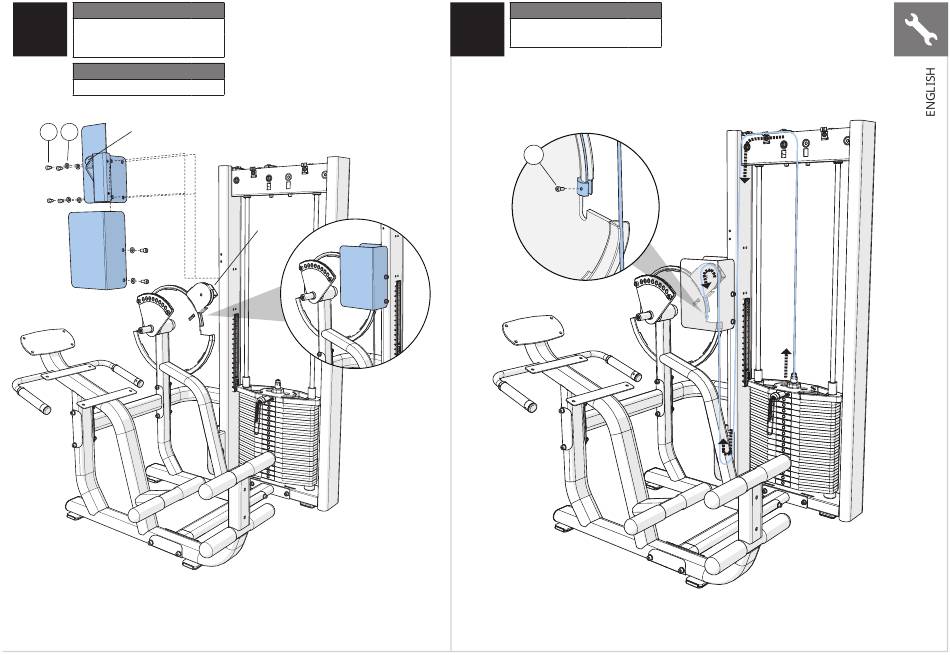

Step 5 Hardware
5
Description Qty
E Bolt (M10x20L) 6
I Flat Washer (Φ10.2) 6
Torque Value
77 Nm / 57 ft-lb
BUMPER
E I
Ensure PULLEY ARM is
centered on BUMPER
PULLEY ARM
Step 6 Hardware
6
Description Qty
J Screw (ST4x20L) 1
J
