Only after the awning has been properly mounted and adequately
secured, you can remove the protective band from the articulated arm.
Otherwise, the awning cannot be opened. Store the protective band away
so you can use it for future storing of the awning.
Misplacing and misassembling of the awning can cause danger.
Only mount the awning yourself if you fully understand the
instructions and if you are sure that the mounting ground is suitable.

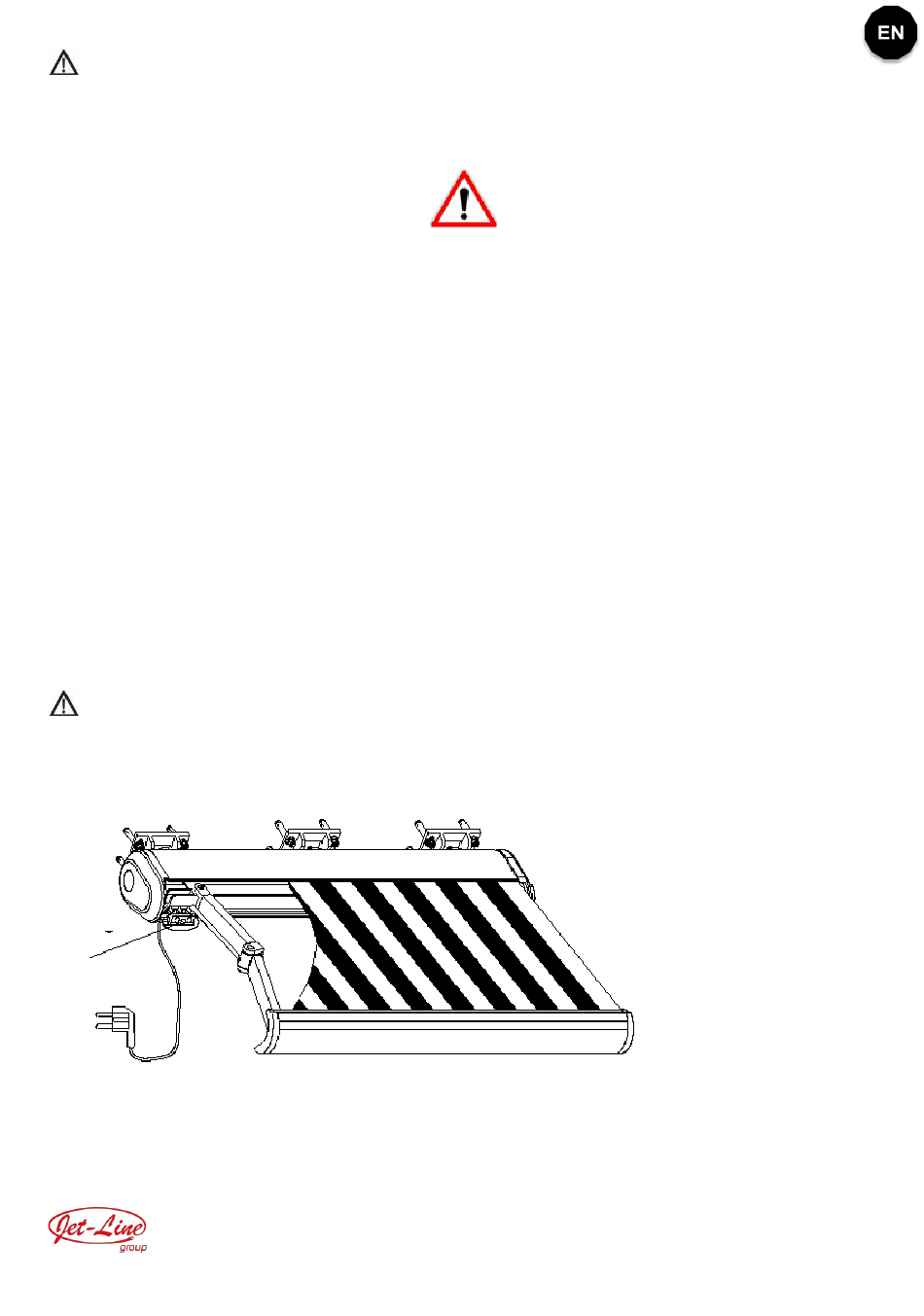

7. OPERATION

7.1 ADJUSTMENT OF PITCH ANGLE

Your product is already delivered with an optimally set pitch angle. However,
you can adjust the screen angle within a range of 0 – 30° according to your
individual requirements.
➔ When installing the awning on a wall or above a window, the pitch angle
can be adjusted within a range or 6 and 15°.
➔ When installing the awning above a door or aisle wider than the awning
itself, the pitch angle can be adjusted within a range of 6 und 35°.
Once you have achieved the highest possible pitch range, the loop will not
turn any farther. Do not try to force it! Failure to follow this instruction can
damage the flex pitch shoulder and void the warranty.
Do not extend the awning further than ¼ of its full length before adjusting.
Adjusting-
area
Use a 6 mm hexagonal wrench to adjust the desired
angle in the regulation hole on the bracket (see drawing).
The pitch angle can be
adjusted on all arms
in the adjusting area
(6-15° respectively 6- 35°)
29
