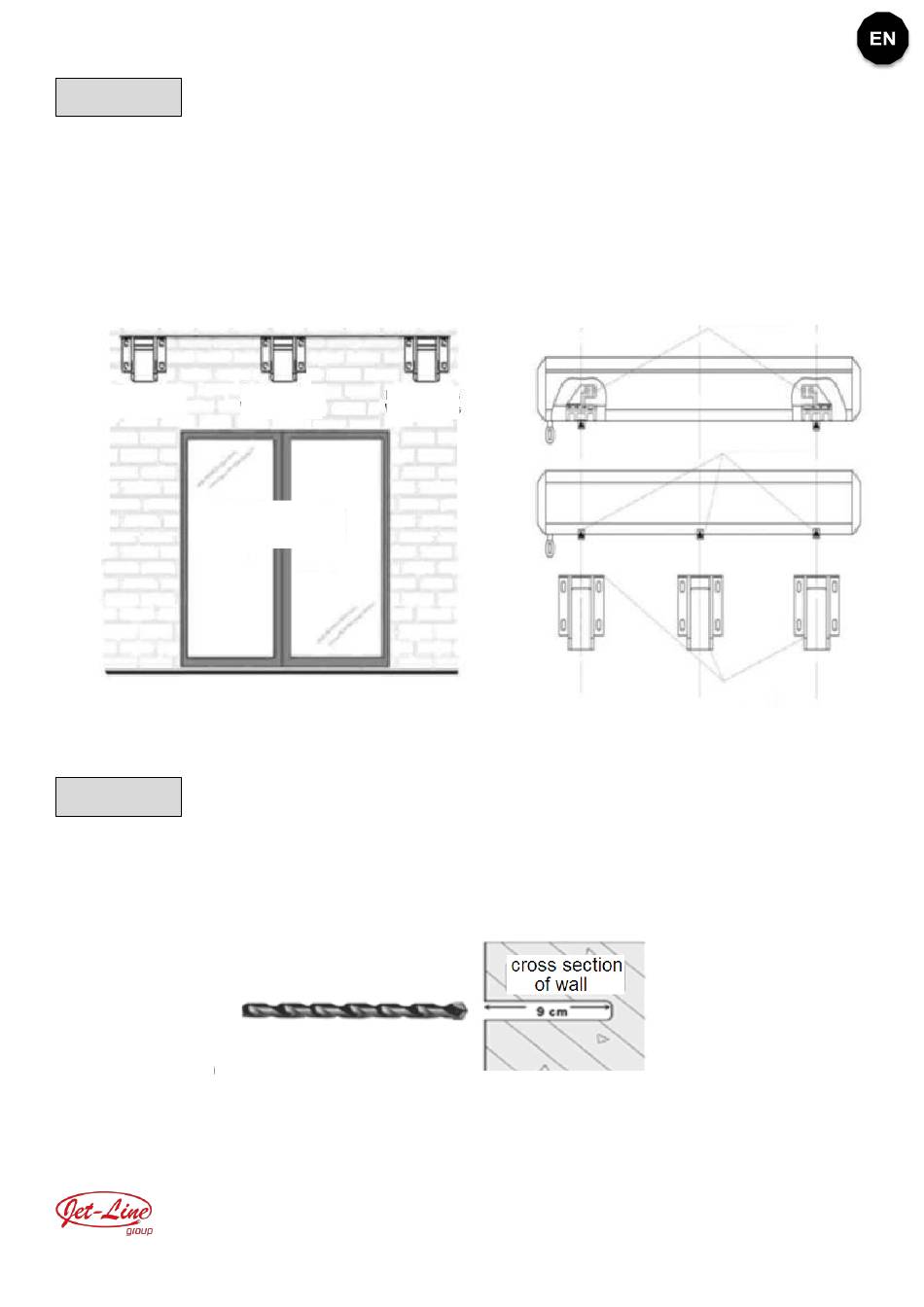

STEP 2 Marking the correct drill hole positions
After choosing the installation-place, you can mark the positions for your drill
holes. To do so, please draw a horizontal line at the required installation-height
first. Please use a long taper measure, a level and chalk. The installation-points
for the brackets are fix. Measure the width between the brackets and copy the
distance to the line on your wall / ceiling. Mark the corresponding spots on the
wall by running a marker pen through the holes of the brackets.
Chalk Line
(use a spirit level for maximum accuracy)
Bracket
Position
Balcony- or
Patio Door
STEP 3
Drilling of the holes for the brackets
Use a 14 mm masonry drill to bore the holes exactly where you have drawn the
marking. The holes must be 9 cm deep and need to go into stone or concrete.
Do not bore through mortar, as it is not solid enough to support the weight of an
awning.
Bracket Bracket
Position Position
Floor
14 mm Masonry Drill
Arm Shoulder
Bracket Labels
Brackets
