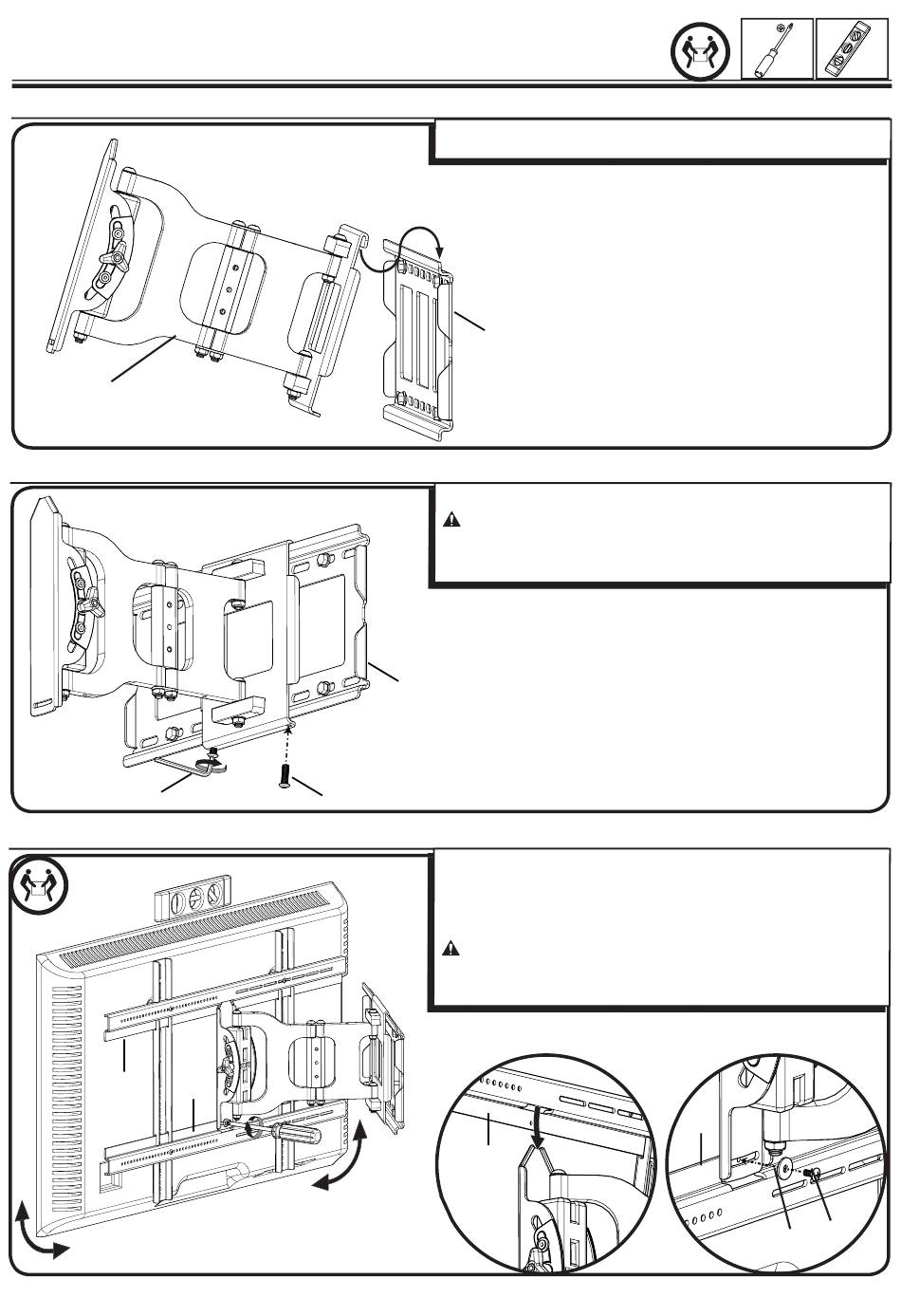

3 Attach Arm to Wall Plate/
Hang your TV onto the Wall Plate
3-1 Attach arm
[02]
3-2 Secure arm to wall plate
[24]
3-3 Secure your TV to the arm
[05]
[06]
8
Hang the swing arm [02] onto the wall plate [01]
[01]
Install the safety bolts [23] using the 3/16 in. hex key [24].
CAUTION:
Ensure the safety bolts [23] are secure. Periodic tightening may be
required.
[01]
[23]
Hang the TV/bracket assembly onto the swing arm.
HEAVY! You will need assistance with this step.
Level the TV/bracket assembly and install the washer [20] and
retaining screw [21].
CAUTION:
to install the washer [20] and retaining screw [21] securely. This will
prevent the TV from separating away from the mount.
[05]
Avoid potential injuries or property damage!
Avoid potential injuries or property damage! Be sure
[06]
[21]
[20]
6902-002024 <02>
