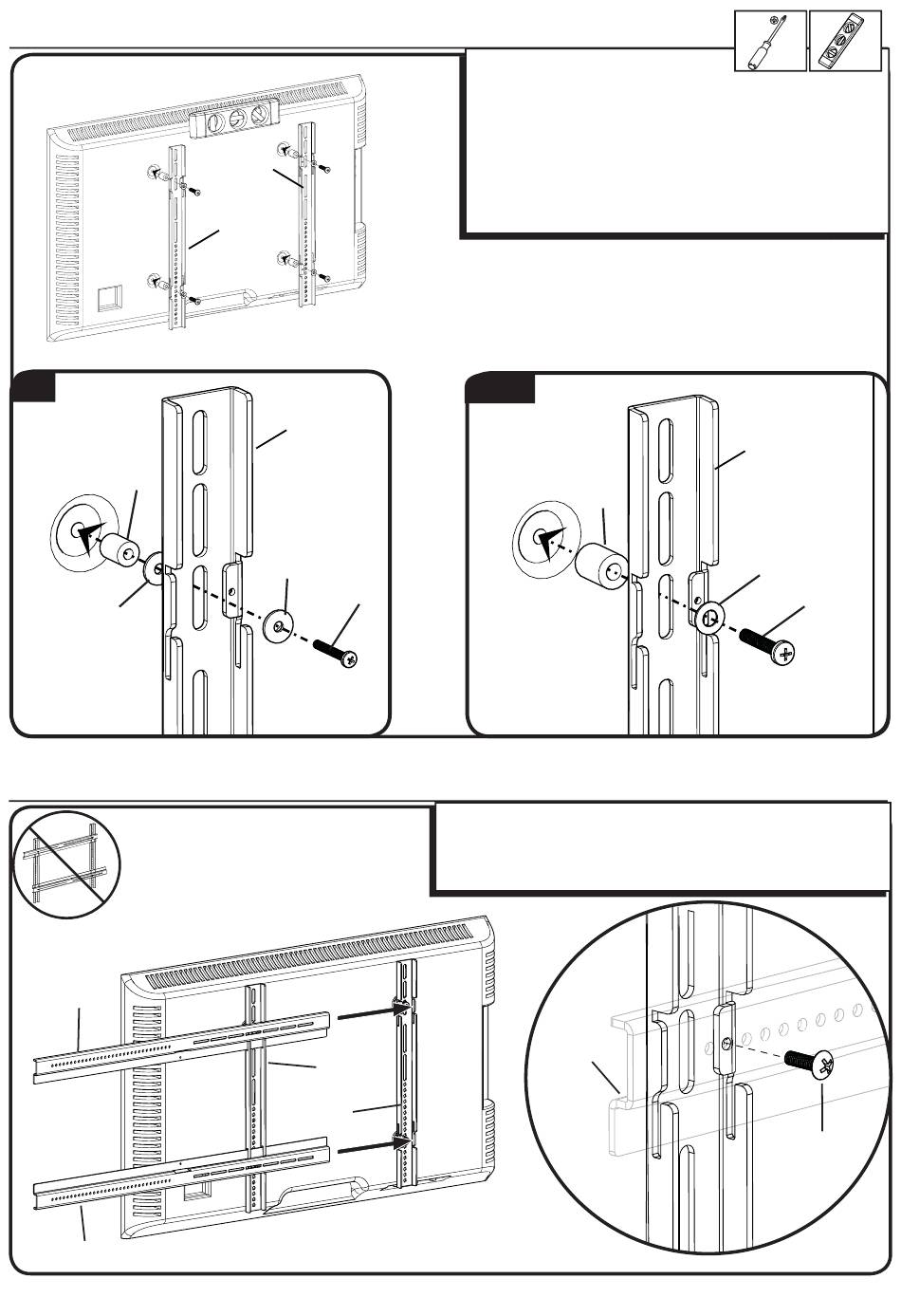

1-2 Attach brackets to a TV with an irregular back
M4
[18]
[16]
1-3 Attach horizontal brackets
[05]
[06]
6
[04]
[03]
[03, 04]
[16]
[10]
[03]
[04]
In step 1-1, if you selected the:
M4 x 30mm bolt [10] use the M4 washer [16] and spacer [18].
M6 x 35mm [13] or M8 x 35 mm bolt [15], use the M6/M8 washer
[17] and spacer [19].
Confi rm that the brackets are level on the back of the TV.
Standard confi gurations are shown. For special applications,
or if you are uncertain about your hardware selection, contact
Customer Service.
M6/M8
[19]
Slide the horizontal brackets [05] and [06] onto the vertical brackets
[03] and [04]. Make sure that they are evenly spaced left to right.
Install screws [22] to lock horizontal brackets [05] and [06] in
position.
[05]
[03, 04]
[17]
[13, 15]
[22]
