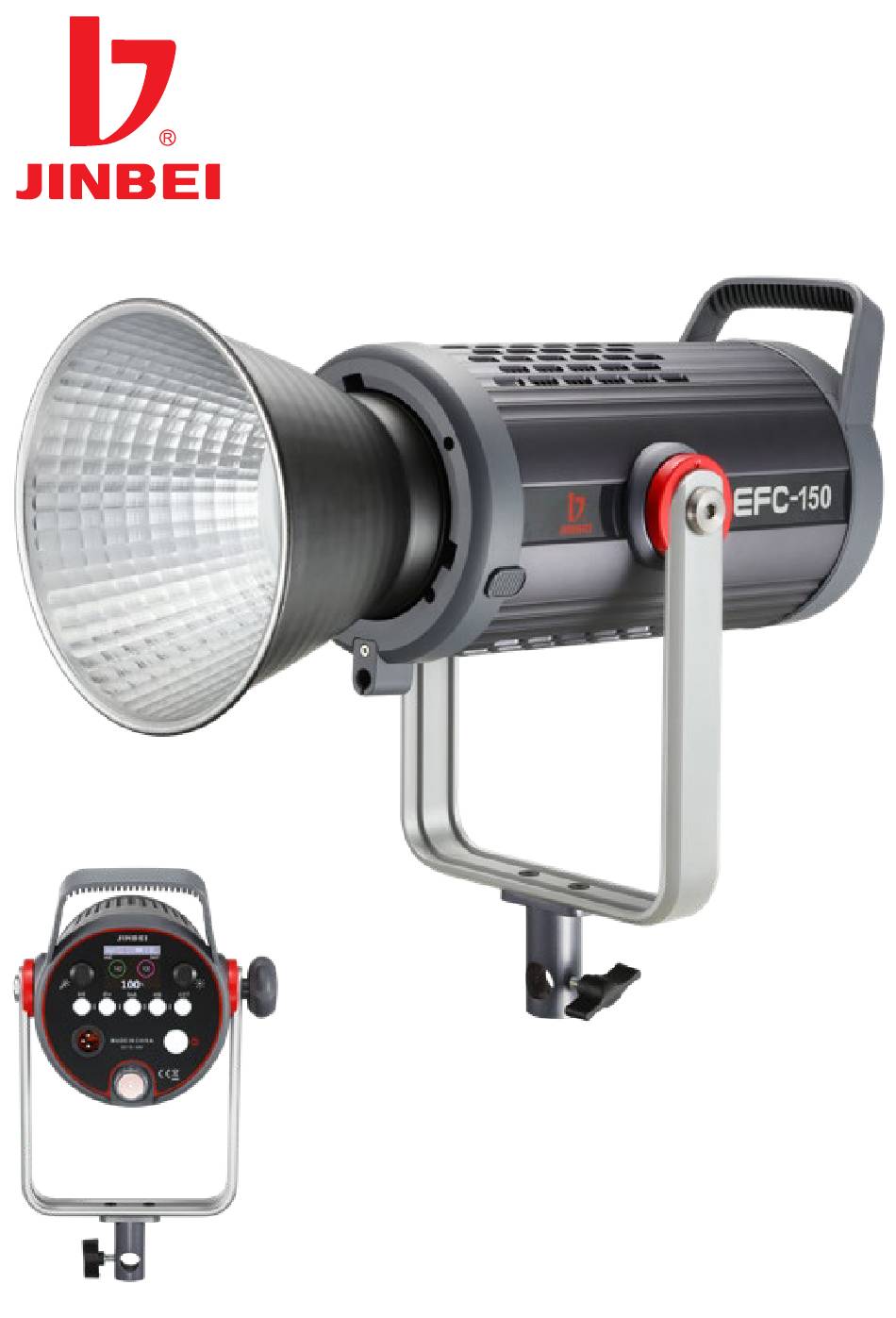

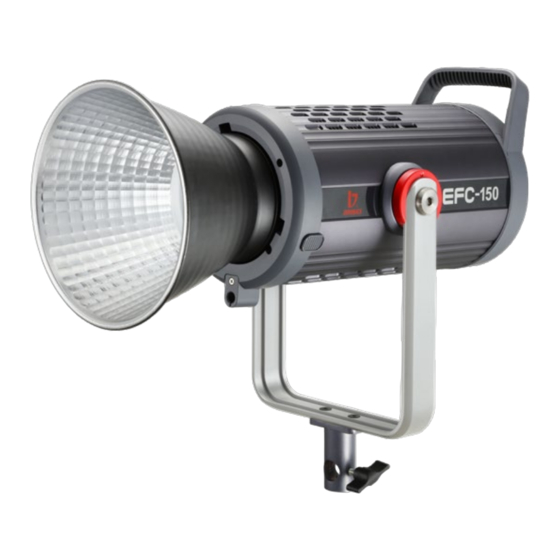

Vor dem ersten Gebrauch Lesen Sie vor dem ersten Gebrauch die Bedienungsanleitung und die Sicherheitshinweise aufmerksam durch . Bewahren Sie die Bedie- nungsanleitung zusammen mit dem Gerät für den späteren Gebrauch auf. Sollten andere Personen dieses Gerät nutzen, so stellen Sie ihnen diese Anleitung zur Verfügung.
Beleuchtungsstärkemessung Die Messung von ungebündeltem Licht wird standardmäßig ohne Reflektoren durchgeführt. Der lineare Abstand von der LED-Licht- quelle zum Beleuchtungsstärkemesser beträgt 1 Meter. Wenn der Einstrahlungswinkel des Reflektors kleiner und dessen Tiefe tiefer wird, dann wird das Licht gebündelt. Das Zentrum des Lichts ist sehr hell, der umgebende Schein erscheint gedämpft. Der Lichtver hältnis-Kontrast wird damit größer, und das Licht am ent- sprechenden Mittelpunkt der Messung wird gedämpft.
Sie den Ein-/Ausschalter [15] 1,5 Sekunden lang gedrückt, um das Gerät einzuschalten. 2 . Optionaler Akku-Betrieb*: Das EFC-150 RGB kann op- tional über den Jinbei EF-VM V-Mount Akku-Adapter be- trieben werden. Stecken Sie dazu ein Ende des Kabels in...
Seite 9
Beschreibung der Funktion CCT-Modus Drücken Sie kurz die CCT-Modus-Taste [14] um in den CCT-Modus zu gelangen. Drücken Sie nun kurz den Funktionsknopf [13], der ausgewählte Wert leuchtet nun grün auf. Wenn das Symbol grün leuchtet, können Sie den Einstellungswert mit dem Funktionsknopf [13] ein- stellen und mit anschließendem Druck auf den Funktionsknopf [13] bestätigen.
Seite 10
Beschreibung der Funktion – Impuls CCT: 2.700 K–7.500 K / Frq: 1–10 – Impuls HUE: 0–359 / Frq: 1–10 – Blitzlicht CCT: 2.700 K–7.500 K / Frq: 1–10 – Blitzlicht HUE: 0–359 / Frq: 0–9 – Zyklus CCT: 2.700 K–7.500 K / Frq: 1–10 – Zyklus HUE: 0–359 / Frq: 1–10 Menü-Einstellungen Drücken Sie kurz die Menütaste [6], um das Einstellungsmenü aufzurufen. Drücken Sie nun kurz den Funktionsknopf [13], und das Symbol der Wertanzeige blinkt grün.
Seite 11
Beschreibung der Funktion Lichteffekt-Modus Drücken Sie kurz den Lichteffekt-Drehknopf [7], um in den Lichtef- fektmodus zu gelangen und schalten Sie abwechselnd verschiedene Lichteffektmodi ein. Drücken Sie kurz den Funktionsknopf [13], und der ausgewählte Wert leuchtet nun grün auf. Wenn das Symbol grün wird, stellen Sie den Wert mit dem Funktionsknopf [13] ein, und drü- cken Sie ihn kurz, um zu bestätigen.
Android 5.0 oder höher). Verbindung mit dem Smartphone 1. Aktivieren Sie Bluetooth®* an Ihrem Smartphone. 2. Schalten Sie das Jinbei EFC-150 RGB ein und aktivieren Sie im Ein- stellungsmenü Bluetooth®*. 3. Öffnen Sie die „Jinbei“ App, die Verbindung mit dem Smartphone wird automatisch hergestellt.
Jinbei App / Bluetooth®* Hinweis: Soll ein anderes Smartphone als bisher zur Nutzung des Dauerlichts verwendet werden, so muss zunächst die Verbindung zum vorigen Smartphone unterbrochen werden und das Dauerlicht aus den Einstellungen in der App auf dem vorherigen Smartphone gelöscht werden.
Technische Daten EFC-150 RGB Leistung 150 W Leistungsregelung Leistung 0 – 100% in 1% Schritten Vollfarbmodus (HSI) 0 – 359 CCT-Modus 2 – 700 K – 7.500 K Beleuchtungsstärke 15.400 lx (0,5 m) | > 3856 lx (1 m) (ohne Reflektor, gemessen bei 5.500 K) Farbtemperatur G/M Magenta/Grün: ±0,5 2.700 K – 7.500 K Farbwiedergabeindex > 97 Television Lighting >...
Seite 15
Druckfehler und Irrtümer vorbehalten. Das Reproduzieren dieser Bedienungs- anleitung – auch auszugsweise – ist nicht gestattet. *Die Bluetooth®-Wortmarke und Logos sind eingetragene Warenzeichen der Bluetooth SIG, Inc. und die Verwendung dieser Marken durch Jinbei erfolgt unter Lizenz. Andere Waren- zeichen und Handelsnamen sind Eigentum ihrer jeweiligen Inhaber.
Sicherheitshinweise Gefahr durch elektrischen Strom! Fehlerhafte elektrische Installationen oder eine übermäßige Netz- spannung können Stromschlag verursachen. – Schließen Sie das Produkt nur dann an, wenn die Netzspannung der Steckdose mit den Angaben auf dem Typenschild überein- stimmt. – Das Produkt an eine leicht zugängliche Steckdose anschließen, damit Sie es bei Problemen schnell vom Netz trennen können.
Seite 17
Sicherheitshinweise Achtung! – Niemals das Netzkabel als Tragegriff benutzen. – Produkt und Zubehör von offenen Flammen, heißen Oberflächen und leicht entflammbaren Materialien fernhalten. – Verlegen Sie das Netzkabel so, dass es keine Stolpergefahr dar- stellt. – Knicken Sie das Netzkabel nicht und legen Sie es nicht über schar- fe Kanten. Achtung! Gefahr für Kinder und Personen mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten (z .
Sicherheitshinweise – Filmen Sie weder Auto-, Bus-, Fahrrad-, Motorradfahrer noch Zug- führer während der Fahrt mit diesem Produkt. Der Fahrer kann ge- blendet werden und so einen Unfall verursachen. Dieses gilt auch für nicht aufgeführte Personen oder Gruppen, wenn durch eine mögliche Blendung ein Unfall verursacht werden könnte.
Konformität Hiermit erklärt die RCP Handels-GmbH & Co. KG, dass dieses Gerät „Jinbei EFC-150 RGB LED-Dauerlicht” der Richtlinie 2014/53/EU ent- spricht. Der vollständige Text der EU-Konformitäts- erklärung ist unter folgender Internetadresse https://www.jinbei-deutschland.de/egk/efc150rgb RCP Handels-GmbH & Co. KG In de Tarpen 42, 22848 Norderstedt...
Before the First Use Read the operating instructions and the safety instructions carefully before using the device for the first time. Keep the operating instructions together with the device for future use. If other people use this device, make this manual available to them.
What‘s in the Box – EFC-150 RGB – Reflector with 70 degree – Protective cap – Carrying bag – Power supply unit – Power cable for power supply unit – User manual...
Illuminance Measurement The measurement of unconcentrated light is standard without ref- lectors, the linear distance from the LED light source to the illuminan- ce meter is 1 meter. When the angle of incidence of the reflector becomes smaller and its depth deeper, the light is bundled. The centre of the light is very bright, the surrounding glow appears dimmed.
[15] for 1.5 seconds to switch on the unit. 2 . Optional battery operation*: The EFC-150 RGB can op- tionally be operated via the Jinbei EF-VM V-Mount battery adapter. To do this, plug one...
Seite 25
Function Description CCT mode Briefly press the CCT mode button [14] to enter CCT mode. Now briefly press the function knob [13], the selected value now lights up green. When the symbol lights up green, you can adjust the setting value with the function knob [13] and confirm by pressing the function knob [13] afterwards. – CCT colour temperature mode: 2,000K-7,500 K – G/M Magenta/Green: ±0.5 HSI: Full colour mode Briefly press the HSI mode button [12] to enter HSI mode, briefly press the function knob [13] and the selected value will now...
Seite 26
Function Description – Pulse CCT: 2,700 K–7,500 K / Frq: 1–10 – Pulse HUE: 0–359 / Frq: 1–10 – Flash CCT: 2,700 K–7,500 K / Frq: 1–10 – Flash HUE: 0–359 / Frq: 0–9 – Cycle CCT: 2,700 K–7,500 K / Frq: 1–10 – Cycle HUE: 0–359 / Frq: 1–10 Menu Settings Briefly press the menu button [6] to enter the settings menu. Now briefly press the function button [13] and the symbol of the value display flashes green. When the desi- red symbol turns green, set the value with the function knob [13] and press briefly to confirm the setting.
Seite 27
Function Description Light effect mode Briefly press the light effect knob [7] to enter light effect mode and alternately switch on different light effect modes. Briefly press the function knob [13] and the selected value now lights up green. When the symbol turns green, set the value with the function knob [13] and press it briefly to confirm. There are 19 preset light effects, adjustable in a frequency of 1-10. Press the light effect pause / -playback button [8] to pause or to continue playing the light effect.
Seite 28
LED light is established directly in the app. Erhältlich im *The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and any use of such marks by Jinbei is under licence. Other trademarks and trade names are the property of their respective owners.
Jinbei App / Bluetooth®* Note: If a different smartphone than before is to be used to use the permanent light, the connection to the previous smartphone must first be interrupted and the permanent light must be deleted from the settings in the app on the previous smartphone. Zoom Control Adjust the Zoom LED button [10] and adjust the position of the LED light head.
Technical Data EFC-150 RGB Power 150 W Power control Power 0 – 100% in 1% steps Full colour mode (HSI) 0 – 359 CCT mode 2 – 700 K – 7,500 K Illuminance 15,400 lx (0.5 m) | > 3856 lx (1 m) (without reflector, measured at 5,500 K) Colour temperature G/M Magenta/Green: ±0.5 2,700 K – 7,500 K...
Seite 31
– even in part – is not permitted. *The Bluetooth® word mark and logos are registered trademarks of the Bluetooth SIG, Inc. and any use of such marks by Jinbei is under licence. Other trademarks and trade names are the property of their respective owners.
Safety Instructions Danger from electric current! Faulty electrical installations or excessive mains voltage can cause electric shock. – Only connect the product if the mains voltage of the socket corre- sponds to the specifications on the type plate. – Connect the product to an easily accessible power outlet so that you can quickly disconnect it from the mains in case of problems.
Seite 33
Safety Instructions Caution! – Never use the mains cable as a carrying handle. – Keep the product and accessories away from naked flames, hot surfaces and easily flammable materials. – Lay the mains cable in such a way that it does not present a trip- ping hazard. – Do not bend the power cord or lay it over sharp edges. Caution! Danger for children and persons with limited physical, sensory or mental abilities (e .
Seite 34
Safety Instructions – Do not film car, bus, bicycle, motorbike or train drivers while driving this product. The driver may be blinded and cause an accident. This also applies to unlisted persons or groups if possible glare could cause an accident. – Do not shine directly into the eyes of people or animals as this may cause damage to the retina, visual disturbances and even blind- ness.
Seite 35
Conformity Herewith the RCP Handels-GmbH & Co. KG hereby declares that the radio system type „Jinbei EFC-150 RGB Continuous LED light” com- plies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity can be downloaded at the following Internet address: https://www.jinbei-deutschland.de/en/egk/efc150rgb...
Seite 36
RCP Handels-GmbH & Co. KG In de Tarpen 42, D-22848 Norderstedt Germany Service Hotline: +49 40 270750400 www.jinbei-deutschland.de Jinbei EFC-150 RGB...
