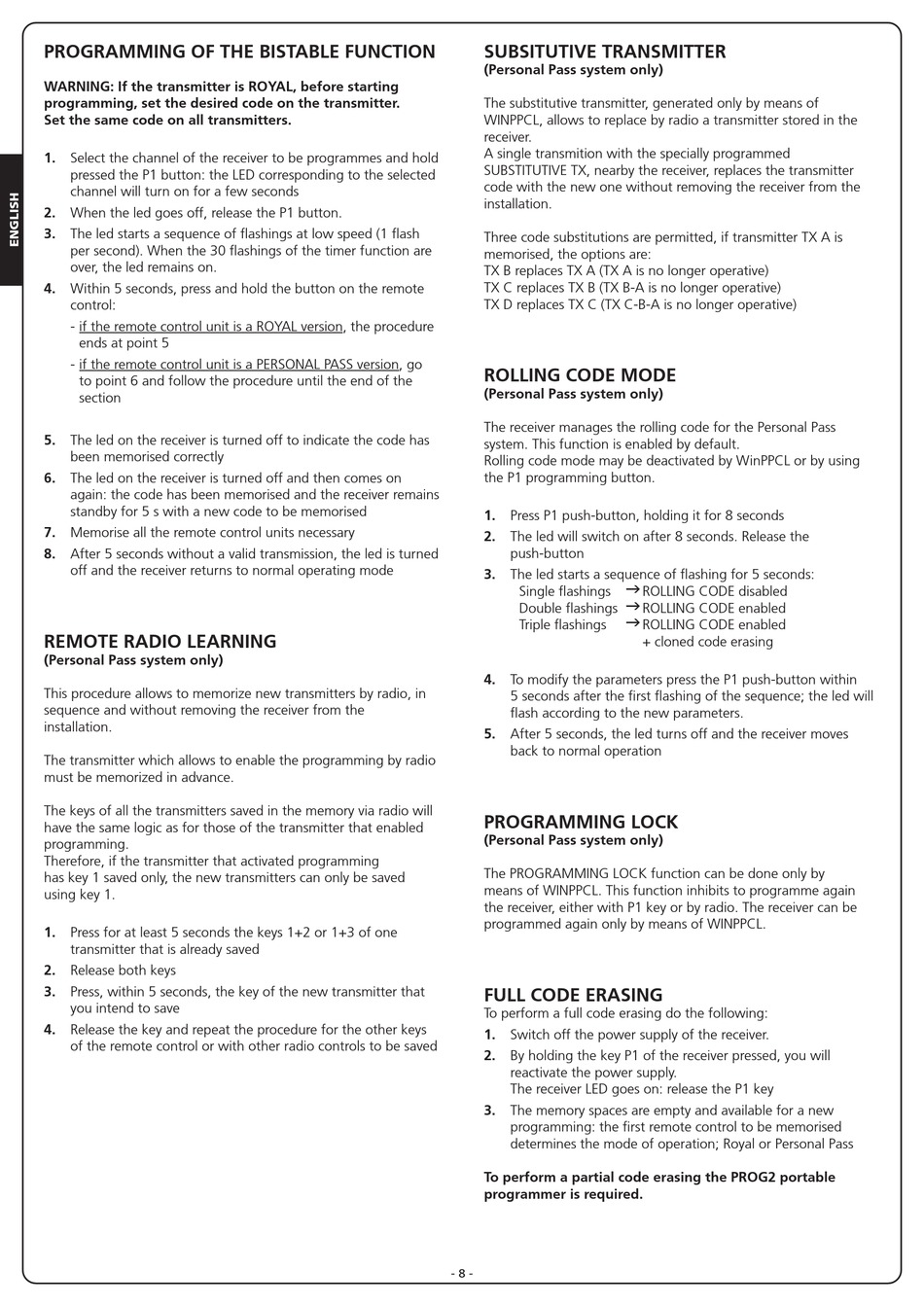

PROGRAMMING OF THE BISTABLE FUNCTION
WARNING: If the transmitter is ROYAL, before starting
programming, set the desired code on the transmitter.
Set the same code on all transmitters.
1. Select the channel of the receiver to be programmes and hold
pressed the P1 button: the LED corresponding to the selected
channel will turn on for a few seconds
2. When the led goes off, release the P1 button.
3. The led starts a sequence of flashings at low speed (1 flash
per second). When the 30 flashings of the timer function are
over, the led remains on.
4. Within 5 seconds, press and hold the button on the remote
control:
- if the remote control unit is a ROYAL version, the procedure
ends at point 5
- if the remote control unit is a PERSONAL PASS version, go
to point 6 and follow the procedure until the end of the
section
5. The led on the receiver is turned off to indicate the code has
been memorised correctly
6. The led on the receiver is turned off and then comes on
again: the code has been memorised and the receiver remains
standby for 5 s with a new code to be memorised
7. Memorise all the remote control units necessary
8. After 5 seconds without a valid transmission, the led is turned
off and the receiver returns to normal operating mode
REMOTE RADIO LEARNING
(Personal Pass system only)
This procedure allows to memorize new transmitters by radio, in
sequence and without removing the receiver from the
installation.
The transmitter which allows to enable the programming by radio
must be memorized in advance.
The keys of all the transmitters saved in the memory via radio will
have the same logic as for those of the transmitter that enabled
programming.
Therefore, if the transmitter that activated programming
has key 1 saved only, the new transmitters can only be saved
using key 1.
1.
Press for at least 5 seconds the keys 1+2 or 1+3 of one
transmitter that is already saved
2.
Release both keys
3. Press, within 5 seconds, the key of the new transmitter that
you intend to save
4. Release the key and repeat the procedure for the other keys
of the remote control or with other radio controls to be saved
SUBSITUTIVE TRANSMITTER
(Personal Pass system only)
The substitutive transmitter, generated only by means of
WINPPCL, allows to replace by radio a transmitter stored in the
receiver.
A single transmition with the specially programmed
SUBSTITUTIVE TX, nearby the receiver, replaces the transmitter
code with the new one without removing the receiver from the
installation.
Three code substitutions are permitted, if transmitter TX A is
memorised, the options are:
TX B replaces TX A (TX A is no longer operative)
TX C replaces TX B (TX B-A is no longer operative)
TX D replaces TX C (TX C-B-A is no longer operative)
ROLLING CODE MODE
(Personal Pass system only)
The receiver manages the rolling code for the Personal Pass
system. This function is enabled by default.
Rolling code mode may be deactivated by WinPPCL or by using
the P1 programming button.
1.
Press P1 push-button, holding it for 8 seconds
2. The led will switch on after 8 seconds. Release the
push-button
3. The led starts a sequence of flashing for 5 seconds:
g
Single flashings
g
Double flashings
g
Triple flashings
4. To modify the parameters press the P1 push-button within
5 seconds after the first flashing of the sequence; the led will
flash according to the new parameters.
5.
After 5 seconds, the led turns off and the receiver moves
back to normal operation

PROGRAMMING LOCK

(Personal Pass system only)
The PROGRAMMING LOCK function can be done only by
means of WINPPCL. This function inhibits to programme again
the receiver, either with P1 key or by radio. The receiver can be
programmed again only by means of WINPPCL.
FULL CODE ERASING
To perform a full code erasing do the following:
1.
Switch off the power supply of the receiver.
2. By holding the key P1 of the receiver pressed, you will
reactivate the power supply.
The receiver LED goes on: release the P1 key
3.
The memory spaces are empty and available for a new
programming: the first remote control to be memorised
determines the mode of operation; Royal or Personal Pass
To perform a partial code erasing the PROG2 portable
programmer is required.
- 8 -
ROLLING CODE disabled
ROLLING CODE enabled
ROLLING CODE enabled
+ cloned code erasing
