6. INSTALLATION

Warning! Mounting and installing the LED fixture must be in accordance with the applicable local laws and
regulations.
Warning! The installer is responsible for correct and safe installation.
Warning! Ensure the local cabling can support the voltage and current requirements of the LED fixture.
Warning! Avoid coiled cables and keep mains leads separated to help prevent electromagnetic interference.
Warning! Do not connect or disconnect the LED fixture under load.
6.1 Fixture assembly & installation
WARNING! Mount the system to something that can hold the weight of the LED fixture.
WARNING! The light bar is shipped with a protective plastic cover over the diodes. Please ensure this protective
cover is removed before use!
Insert the metal hanger hooks into the mounting holes on each side of the light bar, at both ends.
Hang the fixture in required position and height.
The light bar can be hung horizontally above the plant canopy or vertically at the side for supplemental penetration.
For optimal performance; position fixture 15cm – 40cm from plants.
6.2 Connect & disconnect the LED driver
Position the LED driver appropriately ensuring it is not in direct Sun or HID light so as to avoid overheating and not directly
on the floor where it might contact water or nutrients.
To connect driver output to the fixture; ensure the driver power OUTPUT cable connector is correctly aligned with
corresponding light bar cable connector and push together until click-locked.
To disconnect; turn twist-lock connector anti-clockwise to unlock and pull apart.

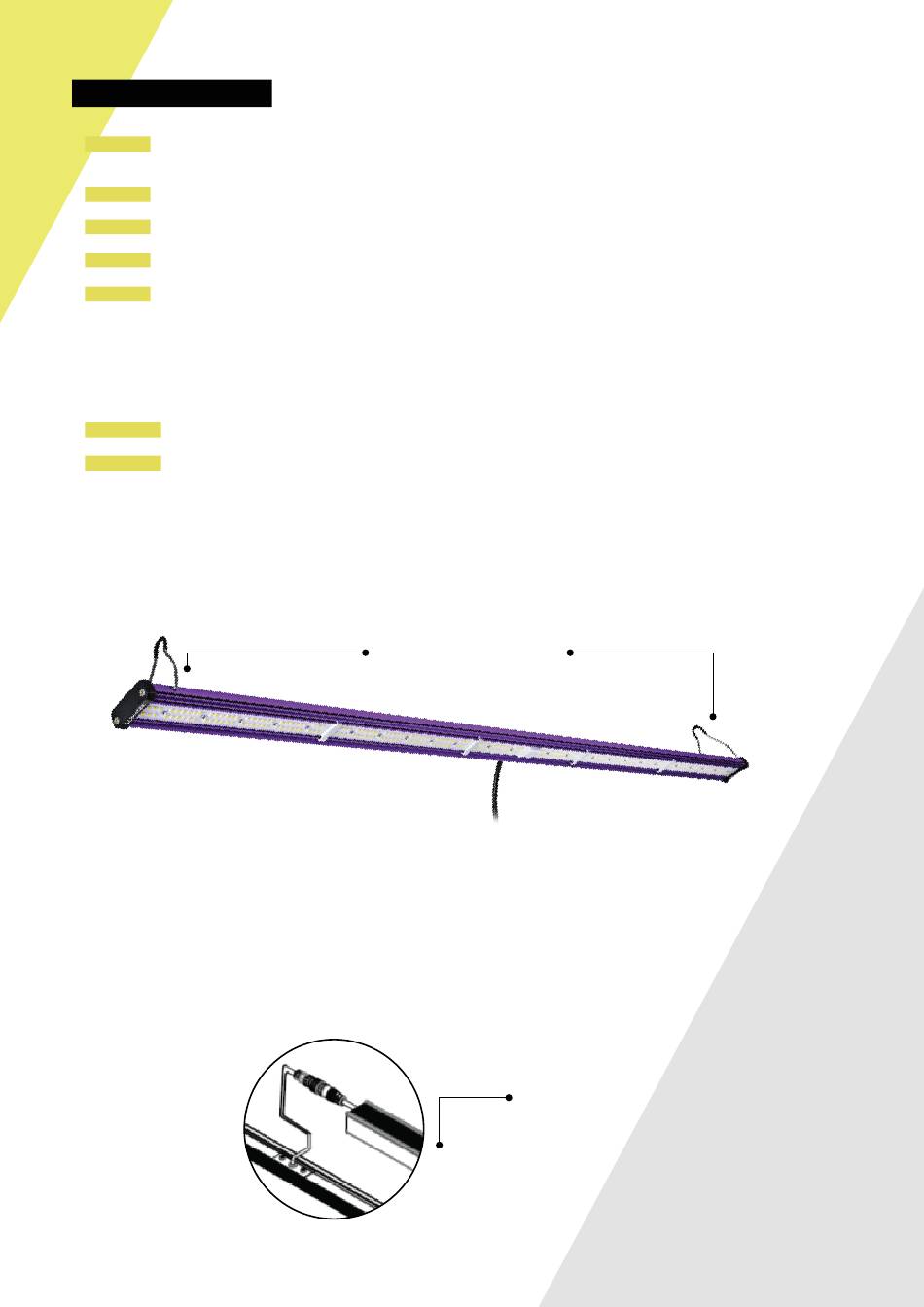

Insert the metal hanger
hooks into the mounting
holes
Ensure twist-lock connectors are
correctly aligned and then push
together until click-locked. Turn
twist-lock anti-clockwise and pull
apart to disconnect.
